CKS Two Way Clutch Bearing Overrunning Wedge Printing Brush Machinery

Name: CKS Two Way Clutch Bearing Overrunning Wedge Printing Brush Machinery
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: CKS series
Price: 7.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: CKS series

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            cks bearing, overrunning clutch bearing, two way bearing


Name:	CKS Two Way Wedge Ovrrunning Clutch For Printing Brush Machinery	Material:	GCR 15 Bearing Steel
Type:	Two Ways Bearings	Flange Size:	70-160mm
Torque (Nm）:	20-300 Nm	Weight (Kg):	107
Bore Size(mm):	10-45

Name:	CKS Two Way Wedge Ovrrunning Clutch For Printing Brush Machinery
Material:	GCR 15 Bearing Steel
Type:	Two Ways Bearings
Flange Size:	70-160mm
Torque (Nm）:	20-300 Nm
Weight (Kg):	107
Bore Size(mm):	10-45

Description

CKS Two Way Clutch Bearing Overrunning Wedge Printing Brush Machinery

CKS Two Way Wedge Ovrrunning Clutch For Printing Brush Machinery

Production introduction

CKS is Two way SPRAG TYPE ovrrunning clutch;

Working as BACKSTOP Application ;

Usually used on Printing machine, Packing machine, Hoisting machine, Lifting transportation machinery, etc .

The CKS type two-way wedge overrunning clutch has a shaft hole at one end connected to the driving shaft and a shaft hole at the other end connected to the driven shaft. When the outer ring does not move and the driving shaft rotates clockwise or counterclockwise, the driven shaft also rotates synchronously. When the driven shaft is affected by external torque, it cannot rotate clockwise or counterclockwise. It is often matched with ball screw pair or other components, as an anti reversal mechanism, and can also be used alone as the transmission of positioning, transmitting torque or cutting torque. It is used in the mechanical transmission of printing machinery, packaging machinery, hoisting and transportation machinery, various non-standard equipment and test bench

Products Parameters

Model	Clutch Size						Flange Size						Torque capacity
Model	d	D	T	C	b1	t1	D1	D2	D3	H	h	d1	(N.m)
CKS70(42)X58-10	10	32	51	20	3	1.4	70	55	42	58	11	6.5	20
CKS75(45)X58-10	10	35	52	20	3	1.4	75	60	45	58	11	6.5	20
CKS75(45)X58-12	12	35	51	20	4	1.8	75	60	45	58	11	6.5	20
CKS75(45)X58-15	15	35	51	20	3	1.4	75	60	45	58	11	6.5	20
CKS95(57)X78-17	17	47	70	27	5	2.3	95	75	57	78	13	8.5	50
CKS105(62)X78-20	20	52	70	27	6	2.8	105	84	62	78	16	10.5	100
CKS115(74)X78-20	20	62	70	27	6	3.3	115	95	74	78	16	10.5	100
CKS115(74)X78-25	25	62	80	32	8	3.3	115	95	74	88	16	10.5	120
CKS125(84)X100- 30	30	72	90	37	8	3.3	125	105	84	100	16	10.5	150
CKS132(88)X100-30	30	75	90	35	8	3.3	132	110	84	100	16	10.5	150
CKS145(94)X110-35	35	80	100	40	10	3.3	145	120	94	110	20	13	200
CKS155(102)X110-40	40	85	100	40	12	3.3	155	128	102	110	20	13	250
CKS160(108)X120-45	45	90	110	45	14	3.8	160	134	108	120	20	13	300

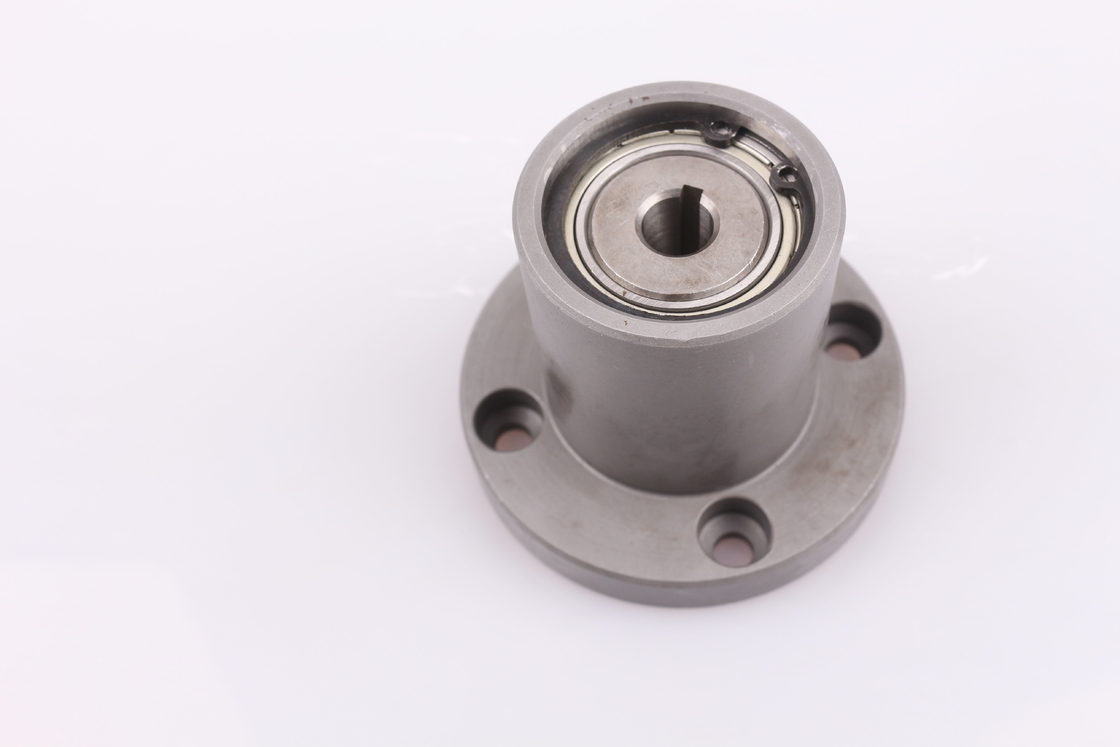

CKS Two Way Clutch Bearing Overrunning Wedge Printing Brush Machinery 0
