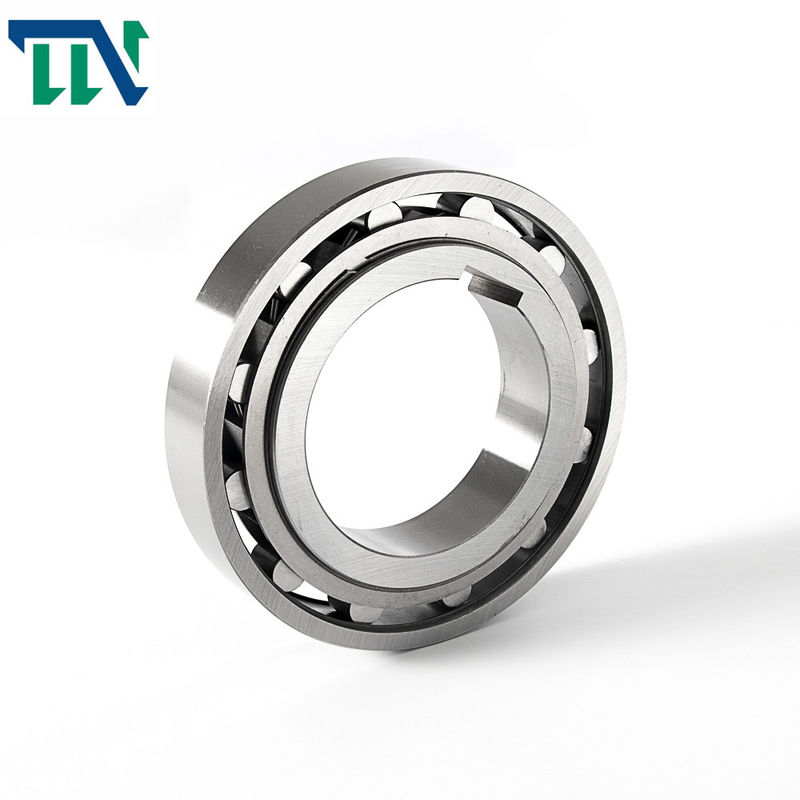

AS TSS Nss 15 25 60 35mm One Way Bearings Roller Freewheel Clutch Bearing

Name: AS TSS Nss 15 25 60 35mm One Way Bearings Roller Freewheel Clutch Bearing
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: AS NSS TSS series
Price: 7.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: AS NSS TSS series

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    nss 60 bearing, nss25 bearing, tss bearings


Name:	AS One Way Sprag Bearing Overrunning Clutch	Material:	GCR 15 Bearing Steel
Type:	One Way Bearings	Thichness (mm):	19-140
Torque (Nm）:	2.1-1063	Weight (Kg):	0.01-1.41
Bore Size(mm):	6-80	Warranty:	12 Months

Name:	AS One Way Sprag Bearing Overrunning Clutch
Material:	GCR 15 Bearing Steel
Type:	One Way Bearings
Thichness (mm):	19-140
Torque (Nm）:	2.1-1063
Weight (Kg):	0.01-1.41
Bore Size(mm):	6-80
Warranty:	12 Months

Description

AS TSS Nss 15 25 60 35mm One Way Bearings Roller Freewheel Clutch Bearing

AS NSS TSS One Way Roller Type Freewheel Clutch

Production introduction

Type AS is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside dimensions are the same as series 62...Ball bearings.
A typical arrangement is to install this type alongside a series 62 bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft (except 6 mm bore).
The outer race has a positive r6 tolerance to give a press fit in a H7 housing. The outer housing must be strong enough
To not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.

The dimensions of the AS type wedge type one-way clutch are the same as those of the 62 series deep groove ball bearings (CSK40). It is a combination of a deep groove ball bearing and a sprag clutch, which has been filled with grease. The seal can prevent dust above 0.3mm from entering the interior. The transmission of torque is in the form of interference fit. The outer ring is pressed with a rigid enough frame with N6 tolerance, and the inner ring is pressed with the outer diameter of the working shaft. When installing, pay attention not to knock the inner ring to press the outer ring into the frame, and not to knock the outer ring to press the inner ring to squeeze into the outer diameter of the shaft. The transmission torque is small (7.4~260N.m), and the limit speed is high. Widely used in printing machinery, packaging machinery, food machinery, electric drum, reducer and testing equipment, etc.

Products Parameters

Type	Size	Torque	Overrunning speeds		Dimensions						Weight	Drag torque
AS (NSS)	dH7	TKN1)	nimax2)	namax3)	Dr6	D5	L	s	e	f	Weight	Drag torque
	[mm]	[Nm]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]	[Ncm]
	6	2.1	5000	7500	19	15.8	6	0.3	0.6	0.3	0.01	0.18
	8	3.8	4300	6500	24	20	8	1.3	0.6	0.6	0.02	0.24
	10	6.8	3500	5200	30	25.9	9	1.3	0.6	0.6	0.03	0.36
	12	13	3200	4800	32	28	10	1.3	0.6	0.6	0.04	0.48
	15	14	2800	4300	35	31	11	1.4	0.6	0.6	0.05	0.7
	20	40	2200	3300	487	40	14	2.4	0.8	0.8	0.12	1.4
	25	56	1900	2900	52	45.9	15	2.4	0.8	0.8	0.14	2.4
	30	90	1600	2400	62	55	16	2.4	0.8	1	0.22	7.8
	35	143	1300	2000	72	64	17	2.5	0.8	1	0.31	9
	40	185	1200	1800	80	72	18	2.5	0.8	1	0.39	10
	45	218	1000	1600	85	77	19	2.5	1.2	1	0.44	11
	50	230	950	1500	90	82	20	2.5	1.2	1	0.49	13
	55	308	800	1300	100	90	21	2.5	1.2	1	0.66	14
	60	508	700	1100	110	100	22	2.5	1.2	1.5	0.81	26
	80	1063	600	900	140	128	26	2.5	1.2	1.5	1.41	58

NOTES:
AS6 without keyway. ØD = -0-0,009
AS8-12 keyway to DIN 6885.1.
Other sizes to DIN 6885.3
1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns
Mounting dimensions are identical to ball bearings series 62

AS TSS Nss 15 25 60 35mm One Way Bearings Roller Freewheel Clutch Bearing 0
