CK-N90180 CK-N80180 CK-N70150 ONE WAY SPRAG CLUTCH BEARING LOW SPEED

Name: CK-N90180 CK-N80180 CK-N70150 ONE WAY SPRAG CLUTCH BEARING LOW SPEED
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: CK-N series
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: CK-N series

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            CK-N60150, CK-N55125, CK-N45125


Name:	CK-N Sprag Type One Way Clutch	Material:	GCR 15 Bearing Steel
Type:	One Way Bearings	Thichness (mm):	106-190
Torque (Nm）:	137-3900	Weight (Kg):	2.1-16.5
Bore Size(mm):	25-90

Name:	CK-N Sprag Type One Way Clutch
Material:	GCR 15 Bearing Steel
Type:	One Way Bearings
Thichness (mm):	106-190
Torque (Nm）:	137-3900
Weight (Kg):	2.1-16.5
Bore Size(mm):	25-90

Description

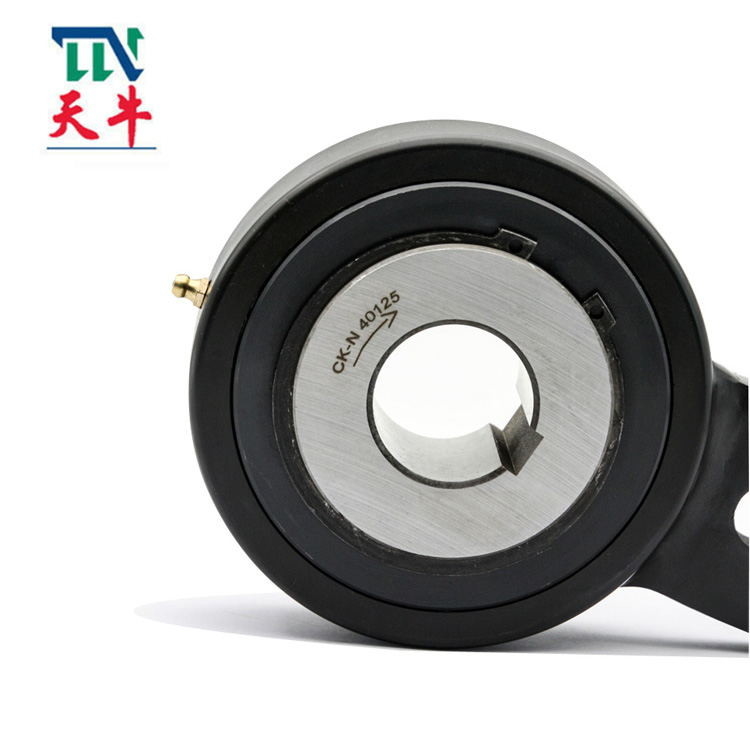

CK-N90180 CK-N80180 CK-N70150 ONE WAY SPRAG CLUTCH BEARING LOW SPEED

CK-N Sprag Type One Way Clutch With Low Speed

Production introduction

Type CK-N is sprag type one-way clutch integrate without supporting bearing and oil seal,and is suitable to application at low running speed.

A bit,secured to a fixed part of the machine and passing through the slot in the torque arm,provide the roating stop,radial clearance on this bolt should be equal to 1% of the solt with.

The torque arm and the bearing must no:be prestressed ,priimarily used as s backstop or indexing clutch in packing and printing,this type provides a high torque capacity with a minimum space reuirement.

CK-N series Cam Clutch was developed as European style Backstopping Cam Clutch which has easy
Usage. It has Cam & Roller construction that the roller works as a bearing same as the small size BS series
Cam Clutch. The outer race has special shape which was combined the torque arm, so only stopping the
Rotation is required.
You can select the correct model from various bore size from 20 mm to 90 mm in each 5 mm.
Backstopping for the country elevator or the foods conveying conveyor which is used in the factory is the
Recommendation. Tsubaki recommends BS series Cam Clutch in the very dusty environment condition or the inclined conveyor and the bucket elevator which are used in outside location.

Products Parameters

Type	Nominal Torque N.m	Overrunning Limiting Speed r/min	Dimension mm											Weight kg
Type	Nominal Torque N.m	Overrunning Limiting Speed r/min	d H7	D	D1	C	L	L1	L2	L3	H	H1	H2	Weight kg
CK-N2526	137	500	25	62	68	16	25	12	34	10	80	73	20	1.8
CK-N25100	435	400	25	100	106	48	32	15	40	18	113	102.5	35	2.5
CK-N30100	435	400	30	100	106	48	32	15	40	18	113	102.5	35	2.4
CK-N35100	435	400	35	100	106	48	32	15	40	18	113	102.5	35	2.3
CK-N40125	1035	300	40	125	132	52	36	15	60	18	125	115	35	4
CK-N45125	1035	300	45	125	132	52	36	15	60	18	125	115	35	3.9
CK-N50125	1035	300	50	125	132	52	36	15	60	18	125	115	35	3.8
CK-N55125	1035	300	55	125	132	52	36	15	60	18	125	115	35	3.7
CK-N60150	1290	250	60	150	161	54	40	15	70	18	140	130	35	6.2
CK-N70150	1290	250	70	150	161	54	40	15	70	18	140	130	35	6.1
CK-N80180	3900	200	80	180	190	70	50	20	70	25	165	150	30	9.6
CK-N90180	3900	200	90	180	190	70	50	20	70	25	165	150	30	9.5

CK-N90180 CK-N80180 CK-N70150 ONE WAY SPRAG CLUTCH BEARING LOW SPEED 0
