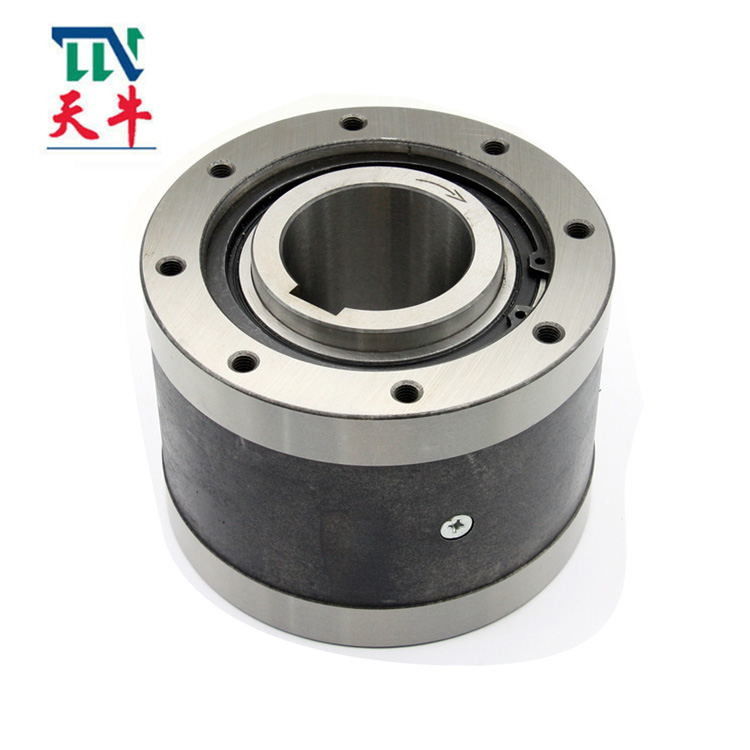

CKZ-F 25165 CKZ-F 30170 CKZ-F 35175 Backstop Overrunning Clutch Sprag Packing Machine

Name: CKZ-F 25165 CKZ-F 30170 CKZ-F 35175 Backstop Overrunning Clutch Sprag Packing Machine
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: CKZ-F series
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: CKZ-F series

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    CKZ-F 25165, CKZ-F 35175 Backstop Overrunning Clutch, Backstop Overrunning Clutch Sprag


Name:	CKZ-D One Way Overrunning Clutch	Material:	GCR 15 Bearing Steel
Type:	One Way Bearings	Thichness (mm):	106-190
Torque (Nm）:	400-16000	Weight (Kg):	20.51-146.81
Bore Size(mm):	165-360	Warranty:	12 Months

Name:	CKZ-D One Way Overrunning Clutch
Material:	GCR 15 Bearing Steel
Type:	One Way Bearings
Thichness (mm):	106-190
Torque (Nm）:	400-16000
Weight (Kg):	20.51-146.81
Bore Size(mm):	165-360
Warranty:	12 Months

Description

CKZ-F 25165 CKZ-F 30170 CKZ-F 35175 Backstop Overrunning Clutch Sprag Packing Machine

CKZ-F Sprag Type Overrunning Backstop Clutch For Packing Machine

Production introduction

Type CKZ-Fis not contact sprag type freewheels, bearing supported,only the inner race is designed for overruning,units are delivered grease lubricated.

The inner race is keyed to the shaft, the outer race has positive h7 tolerance to give a press fit in housing to H7 and it is screwed to the bond.

This type mating creeper gear used in machinery of packing ,traffic,metallurgy,mine and so on,primarily designed as a backstop,oner running clutch in crawl drives.

Type CKZ is a wedge-type overrunning clutch (backstop) with two sets of bearing supports. It is suitable for the limit speed of 600-1500r/min, the commonly used nominal torque is: 180-8000N.m, and the maximum torque has been produced with a backstop of 70000N.m. Commonly used in packaging machines, hoisting and transporting machinery, metallurgical machinery, mining machinery, petroleum machinery, chemical machinery, cement machinery, power stations, etc., also known as backstops, widely replacing the MG600 and MG700 backstops of the MG series in the United States in China

Products Parameters

Type	Nominal Torque	Overrunning Limiting Speeds r/min		Dimension inmm							Weight
	N·m	Overrunning Limiting Speeds r/min		Out Race Size					Inner Race Size
		Inner Race	Outer Race	D / H8	B	F	n-M	H	d/H7	bn×tn	kg
CKZ-F 25165	400	1500	480	165	125	145	8-M8	20	25	8*3.3	20.51
CKZ-F 30170	500	1500	470	170	130	150	8-M8	20	30	8*3.3	22.46
CKZ-F 35175	600	1500	450	175	130	155	8-M10	20	35	10*3.3	23.58
CKZ-F 40185	800	1500	430	185	130	162	8-M10	25	40	12*3.3	24.16
CKZ-F 50190	1000	1500	420	190	135	168	8-M10	25	50	14*3.8	26.95
CKZ-F 55195	1250	1500	400	195	145	172	8-M10	25	55	16*4.3	31.31
CKZ-F 55205	1600	1500	400	205	145	185	10-M10	25	55	16*4.3	34.81
CKZ-F 60208	1600	1500	400	208	150	185	10-M10	25	60	18*4.4	36.71
CKZ-F 65220	2000	1500	400	220	150	195	10-M10	25	65	18*4.4	40.88
CKZ-F 70230	2500	1500	390	230	150	205	12-M12	25	70	20*4.9	44.42
CKZ-F 80245	4000	1500	380	245	160	218	12-M12	25	80	22*5.4	52.93
CKZ-F 90260	6300	1500	370	260	160	230	12-M14	25	90	22*5.4	58.74
CKZ-F 100275	8000	1500	370	275	170	245	12-M14	25	100	28*6.4	68.83
CKZ-F 110295	10000	1500	370	295	185	260	12-M16	30	110	28*6.4	85.46
CKZ-F 130330	12500	1500	350	330	200	295	12-M16	30	130	32*6.4	113.44
CKZ-F 140360	16000	1500	350	360	215	320	12-M18	30	140	36*8.4	145.81

CKZ-F 25165 CKZ-F 30170 CKZ-F 35175 Backstop Overrunning Clutch Sprag Packing Machine 0
