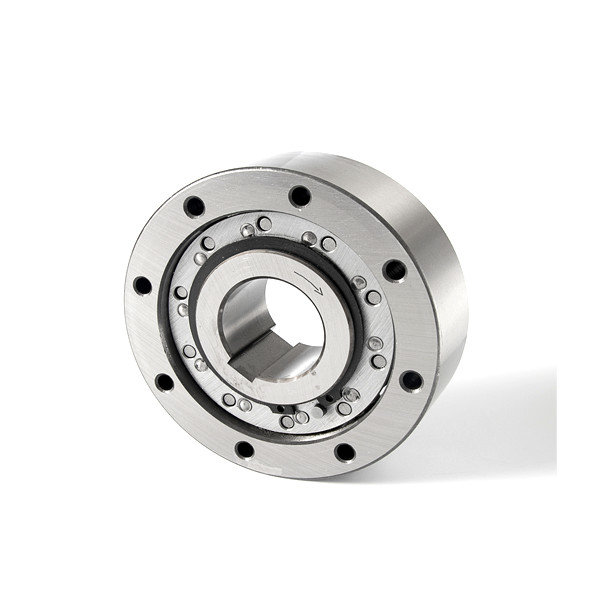

RSCI Sprag Freewheel One Way Pump Overrunning Clutch Bearing
RSCI Sprag Freewheel One Way Pump Overrunning Clutch Bearing
RSCI Sprag Freewheel One Way Pump Overrunning Clutch Bearing
RSCI Sprag Freewheel One Way Pump Overrunning Clutch Bearing
RSCI Sprag Freewheel One Way Pump Overrunning Clutch Bearing

RSCI Sprag Freewheel One Way Pump Overrunning Clutch Bearing

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: RSCI series

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

Pump Overrunning Clutch Bearing

,

Freewheel Overrunning Clutch Bearing

,

RSCI Bearing

Name:
RSCI Sprag Type Freewheel One Direction Bearing
Material:
GCR 15 Bearing Steel
Type:
One Way Bearings
Thichness (mm):
64-180
Torque (Nm）:
31500-250000
Weight (Kg):
59-457
Bore Size(mm):
180-300
Name:
RSCI Sprag Type Freewheel One Direction Bearing
Material:
GCR 15 Bearing Steel
Type:
One Way Bearings
Thichness (mm):
64-180
Torque (Nm）:
31500-250000
Weight (Kg):
59-457
Bore Size(mm):
180-300
Description
RSCI Sprag Freewheel One Way Pump Overrunning Clutch Bearing



RSCI Sprag Type Freewheel One Direction Bearing​



Production introduction




RSCI is a centrifugal lift off sprag type freewheel with the inner race rotating. It is a non self-supported type.



Type RSCI is a centrifugal lift off sprag type freewheel with the inner race rotating. Only the inner race is designed for freewheeling.

An oil mist is generally sufficient. Grease lubrication may be acceptable if the unit works mostly in overrunning condition, as on E-motors.

Centering of the outer race must use the inner bore. The centering spigot must not contact the sprag cage.



tem RSCI 20-130
Material GCr15
Bore dia. 20-130 mm
Outer dia. 90-322 mm
Torque 212-15750 Nm
Weight(RSCI) 1.5-35 kg
Weight(F8) 0.3-6 kg
Number of Z 6-12
Delivery time 15-20 days


Products Parameters



Size Torque Speeds   NO.   Weight

dH7 TKN1) nmax2) nimin3) nimax4) D5) D1h6 D2H7 D3 D4 z L I I1 I4 f×45° dmin m tmin
[mm] [Nm] [min-1] [min-1] min-1 mm mm mm mm     mm mm mm mm mm mm mm mm [kg]
180 31500 115 285 1300 412 240 310 360 M20 12 90 80 53 5 3.5 280 18.6 3 59
180M 50000 90 220 1300 422 240 310 370 M20 18 120 120 83 0 4 280 18.5 2 92
180II 63000 115 285 1300 412 240 310 360 M20 24 160 160 118 0 3.5 280 21 3 116
180II-M 100000 90 220 1300 425 240 310 370 M24 24 240 240 176 0 4 280 32 3 190
220 42500 110 265 1100 470 290 360 410 M20 16 105 80 60 12.5 4 330 19.5 3 90
220M 68000 85 205 1100 480 290 360 410 M24 16 120 120 83 0 4 330 18.5 2 109
220II 85000 110 265 1100 480 290 360 430 M24 18 160 160 130 0 4 330 15 3 159
220II-M 136000 85 205 1100 490 290 360 425 M30 20 240 240 176 0 4 330 32 2 249
240 52000 105 250 1100 500 320 390 440 M20 16 105 90 60 7.5 4 360 15 2 95
240M 83000 80 195 1100 520 320 390 440 M24 16 120 120 83 0 4 360 18.5 2 137
240II 104000 105 250 1100 520 320 390 440 M24 24 180 180 132 0 4 360 24 2 191
240II-M 166000 80 195 1100 530 320 390 455 M30 24 240 240 181 0 4 360 32 2 250
260 65000 100 240 1000 550 360 430 500 M24 16 105 105 60 0 4 400 22.5 2 130
260M 100000 75 185 1000 580 360 430 500 M24 24 125 125 83 0 4 400 21 2 183
260II 130000 100 240 1000 580 360 430 500 M24 24 210 210 132 0 4 400 39 2 262
260II-M 200000 75 185 1000 580 360 430 500 M30 24 250 250 176 0 4 400 37 2 369
300 78000 90 225 1000 630 410 480 560 M24 24 105 105 60 0 4 460 22.5 3 174
300M 125000 70 175 1000 630 410 480 560 M24 24 125 125 83 0 4 460 21 3 210
300II 156000 90 225 1000 630 410 480 560 M24 24 210 210 134 0 4 460 38 3 351
300II-M 250000 70 175 1000 630 410 480 560 M30 24 250 250 182.6 0 4 460 33.7 3

457
