Name: |
LD Series Low Speed One Direction Cam Clutch |
Material: |
GCR 15 Bearing Steel |
Max. Overrunning (r/min): |
300-200 |
Torque (Nm）: |
5.88-49 |
Weight (Kg): |
0.25-0.69 |
Bore Size(mm): |
10-30 |
Name: |
LD Series Low Speed One Direction Cam Clutch |
Material: |
GCR 15 Bearing Steel |
Max. Overrunning (r/min): |
300-200 |
Torque (Nm）: |
5.88-49 |
Weight (Kg): |
0.25-0.69 |
Bore Size(mm): |
10-30 |

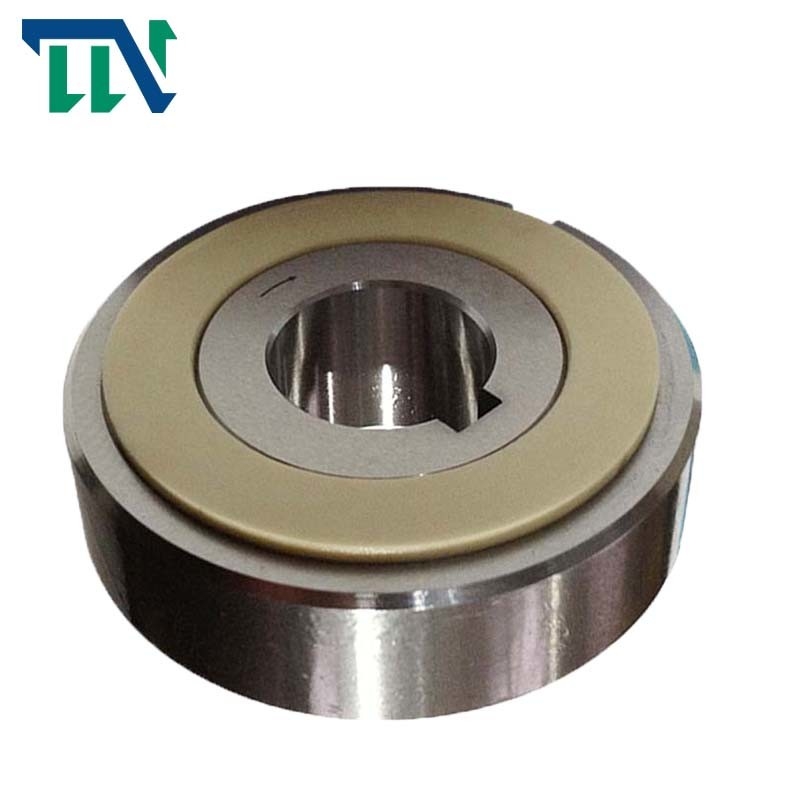

LD Series One Way Sprag Cam Clutch Bearing For Textile Machinery
Production introduction
Changzhou TIANNIU Transmission Equipment Co., Ltd is a professional one way clutch bearing supplier, the primary products are micro electromagnetic clutch, torque limiter coupling, sliding shaft coupling, flexible propeller shaft coupling, locking assembly and shaft couplings, etc.
We have been in Sprag Clutch Bearing and clutch one way bearing industry for more than 10years, persisting in the business principle of products tailored to requirements from clients.We service through listening to our customers, applying innovation and building with craftsmanship to meet all their needs.
Installation and Usage
1. LD Series Cam Clutch is prelubricated with special grease and are ready for use.No additional lubricant is required.
2. When installing the clutch on the shaft, press the clutch inner race slightly with a soft hammer to prevent the clutch Outer race from slipping away from the inner race.
3. Be sure to attach the plate. This prevents the outer race from slipping away from the inner race. See recommended Dimensions of the plate listed on the right.
4. For lubrication, coat the plate and thrust metal with grease.
5. Never apply thrust loads to the clutch. Other devices should be provided to take up thrust loads applied to the clutch.
6. Key should be in accordance with JIS B1301-1959.
7. The bores of the pulley, sprocket, etc., should have a tolerance of H6 or H7.
|
Model
|
LD cam clutch
|
|
|
Inner Race Size (mm)
|
10-30 mm
|
|
|
Outer Race Size (mm)
|
47-82 mm
|
|
|
Thickness (mm)
|
24mm
|
|
|
Weight (Kg)
|
0.25-0.65 kg
|
|
|
Torque Capacity(Nm)
|
5.88-49 N.m
|
|
Products Parameters
| Model | Torque Capacity (Nm) |
Drag Torque (Nm) |
Max. Overrunning (r/min) |
Max. indexing (cycle/min) |
Max.Radial Load When Overrunning (kgf) |
Bore Size |
A |
B |
C |
D |
E |
Outer Race Keyway |
Weight ( kg ) |
|
| Inner Race | Dia. (H7) |
Keyway | ||||||||||||
| LD04 | 5.88 | 0.2 | 300 | 100 | 20 | 10 | 4x1.5 | 19.5 | 23.9 | 24 | 47 -0.014 -0.039 |
40 | 5x3 | 0.25 |
| LD05 | 9.8 | 0.29 | 300 | 100 | 30 | 14 | 5x2 | 19.5 | 23.9 | 24 | 52 -0.017 -0.042 |
45 | 5x3 | 0.3 |
| LD06 | 19.6 | 0.29 | 200 | 100 | 50 | 20 | 5x2 | 19.5 | 23.9 | 24 | 62 -0.017 -0.042 |
52 | 7x4 | 0.4 |
| LD07 | 29.4 | 0.39 | 200 | 100 | 70 | 25 | 7x3 | 19.5 | 23.9 | 24 | 72 -0.017 -0.042 |
62 | 7x4 | 0.55 |
| LD08 | 49 | 0.49 | 200 | 100 | 80 | 30 | 7x3 | 19.5 | 23.9 | 24 | 82 -0.017 -0.042 |
70 | 10x4.5 | 0.65 |
Mounting example:
