Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO-9001
Model Number: FSO300
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-10working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
Name: |
FSO300 FS Series HPI Type One Way Freewheels Sprag Clutch Bearing |
Material: |
GCR 15 Bearing Steel |
Bore Size(mm): |
20-30 |
Thichness (mm): |
64-180 |
Torque (Nm）: |
43.1 196 |
Weight (Kg): |
1.9-4 |
Warranty: |
12 Months |
Name: |
FSO300 FS Series HPI Type One Way Freewheels Sprag Clutch Bearing |
Material: |
GCR 15 Bearing Steel |
Bore Size(mm): |
20-30 |
Thichness (mm): |
64-180 |
Torque (Nm）: |
43.1 196 |
Weight (Kg): |
1.9-4 |
Warranty: |
12 Months |

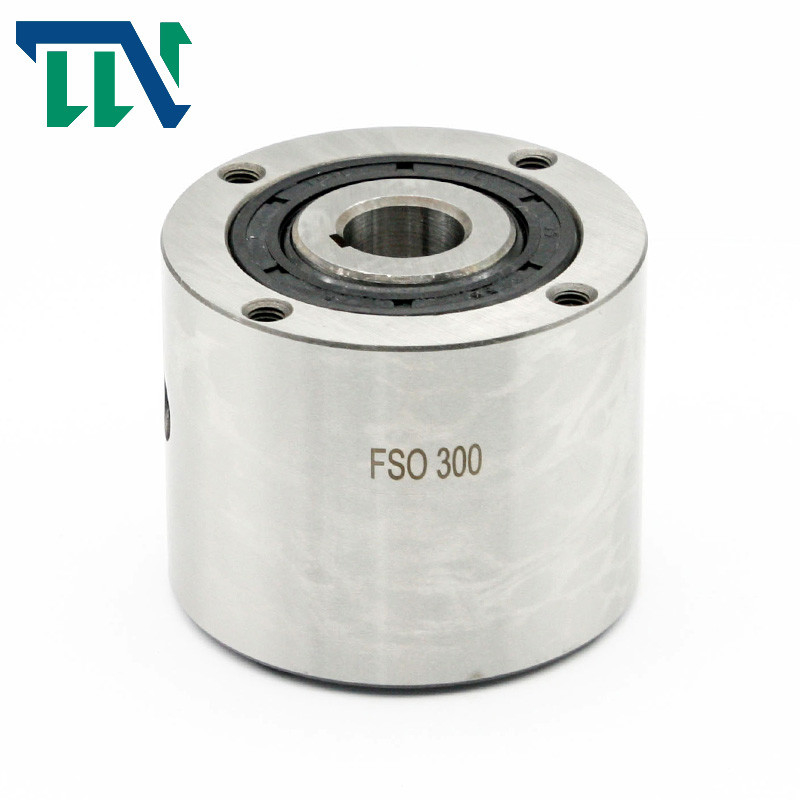

FSO300 FS Series HPI Type One Way Freewheels Sprag Clutch Bearing
Production introduction
We have different types of one way bearings, CSK, CSK.2RS specification series; CSK..P, CSK..PP specification series; AS specification series; ASNU specification series; AE specification model; NF specification series; DC specification series; BAT specification series; GFR, GFRN specification series; GFR..F1F2, GFR..F2F7, GFRN..F5F6 specification models; GFR...F2-F3, GFR..F3-F4 specification series; FSO, FSO-GR, HPI specification series; FS, FSO, HPI specification series
Types FSO, FSO-GR, and HPI 300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.
Units are delivered oil or grease lubricated according to the type.
It is a design with full sprag complement that gives a very high torque for a given diameter. Any overload is resisted by a sprag to sprag abutment, avoiding a sprag tilt over.
Lubrication
Types FSO and HPI are oil lubricated and use standard shaft lip seals.
Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.
Type HPI is specially designed for high speed indexing applications.
Products Parameters
| Type | Size |
Torque TKN1 [Nm] |
Overrunning speeds [min-1] |
DIMENSION ( MM ) | Lubricant | Weight | Torque Drag | |||||||||||||||
| FSO FSO-GR HPI |
FSO nmax2) |
FSO- GR nmax3) |
dH7-bxh |
d4) min-max |
A |
B -0.05 |
C | E | F | G | z | J | K | L | f | FSO | FSO..GR | HPI | [kg] | TR [Ncm] | ||
| 300 | 379 | 3000/900 | 3600/900 | 15-5x5 | 12...19 | 63.5 | 76.2 | 60.45 | 1.6 | 28.58 | 66.67 | 4 | M8 | 13 | M6 | 0.8 | 7 | 10 | 14 | 1.6 | 18 | |
| 400 | 407 | 2800/850 | 3600/850 | 18-6x6 | 12...22 | 69.85 | 88.9 | 68.07 | 1.6 | 30 | 73 | 4 | M8 | 13 | M6 | 0.8 | 10 | 20 | 20 | 2.7 | 27 | |
| 500 | 1621 | 2500/800 | 3000/800 | 30-8x7 | 19...33 | 88.9 | 107.95 | 85.73 | 1.6 | 45 | 92 | 4 | M8 | 16 | M6 | 1.5 | 22 | 35 | 35 | 4.8 | 31 | |
| 600 | 3105 | 2200/750 | 2400/750 | 45-14x9 | 24...57 | 95.25 | 136.525 | 92.2 | 1.6 | 63.5 | 120.6 | 6 | M8 | 16 | M6 | 1.6 | 52 | 84 | 84 | 8.6 | 62 | |
| 700 | 6900 | 1600/450 | 2000/450 | 60-18x11 | 48...82 | 127 | 180.975 | 123.85 | 1.6 | 90 | 158.75 | 8* | M10* | 20 | M6 | 1.6 | 168 | 280 | 280 | 19 | 156 | |
