Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO-9001
Model Number: FPD448Z
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-10working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
Name: |
FPD448Z Freewheel One Way Clutch Bearing For Cutting Machine |
Material: |
GCR 15 Bearing Steel |
Bore Size(mm): |
15-60 |
Torque (Nm）: |
94-543 |
Weight (Kg): |
0.09-0.41 |
Warranty: |
12 Months |
Name: |
FPD448Z Freewheel One Way Clutch Bearing For Cutting Machine |
Material: |
GCR 15 Bearing Steel |
Bore Size(mm): |
15-60 |
Torque (Nm）: |
94-543 |
Weight (Kg): |
0.09-0.41 |
Warranty: |
12 Months |

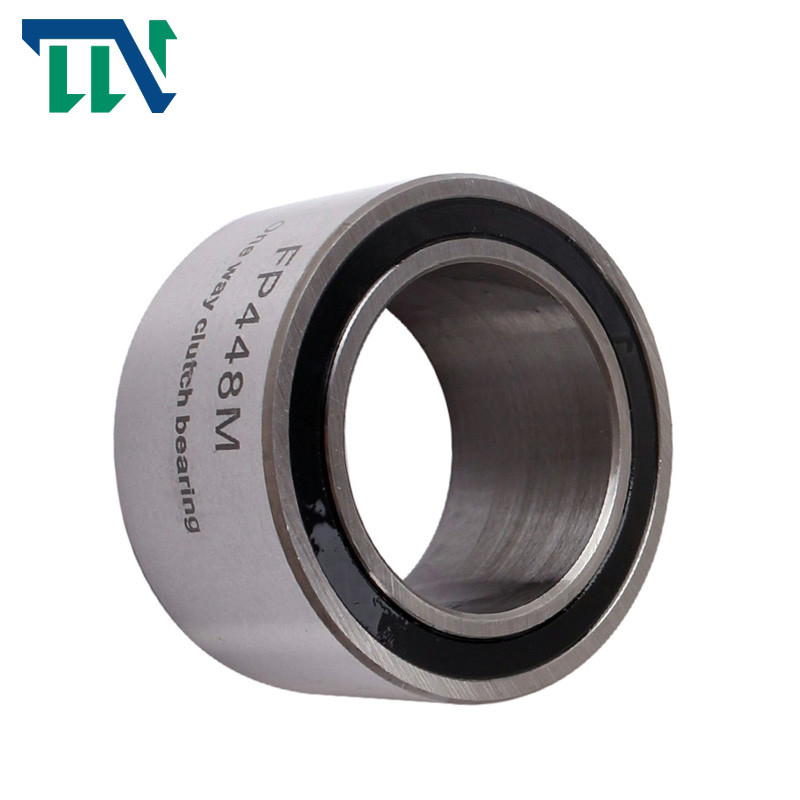

FPD448Z Freewheel One Way Clutch Bearing For Cutting Machine
Production introduction
Bearing
The freewheel clutch includes ball and roller bearings.Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping direction.
Width:34 mm
Operating temperature:max. 100° C
Lubrication
Operative lifetime oil lubrication
Installation
Installation tolerances
Shaft h5; hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Components
Changzhou TIANNIU Transmission Equipment Co., Ltd is a professional one way clutch bearing supplier, the primary products are micro electromagnetic clutch, torque limiter coupling, sliding shaft coupling, flexible propeller shaft coupling, locking assembly and shaft couplings, etc.
We have been in Sprag Clutch Bearing and clutch one way bearing industry for more than 10years, persisting in the business principle of products tailored to requirements from clients.We service through listening to our customers, applying innovation and building with craftsmanship to meet all their needs.
Products Parameters
| Model | d | D | W | Tnom | nmax | Cdyn. | Cstat. | Weight | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [N] | [N] | [kg] | ||
| FPD 427 M | 15 | 31 | 34 | 94 | 2,000 | 7,679 | 6,397 | 0.09 | 306516 |
| FPD 427 Z | 15 | 31 | 34 | 84 | 2,000 | 7,679 | 6,397 | 0.09 | 306517 |
| FPD 432 M | 20 | 36 | 34 | 133 | 1,800 | 8,104 | 7,241 | 0.12 | 306518 |
| FPD 432 Z | 20 | 36 | 34 | 121 | 1,800 | 8,104 | 7,241 | 0.12 | 306519 |
| FPD 437 M | 25 | 41 | 34 | 176 | 1,700 | 9,201 | 8,142 | 0.15 | 306520 |
| FPD 437 Z | 25 | 41 | 34 | 160 | 1,700 | 9,201 | 8,142 | 0.15 | 306521 |
| FPD 442 M | 30 | 46 | 34 | 223 | 1,500 | 10,247 | 10,708 | 0.18 | 300696 |
| FPD 442 Z | 30 | 46 | 34 | 208 | 1,500 | 10,247 | 10,708 | 0.18 | 300697 |
| FPD 448 M | 35 | 53 | 34 | 286 | 1,300 | 11,642 | 13,440 | 0.23 | 306524 |
| FPD 448 Z | 35 | 53 | 34 | 262 | 1,300 | 11,642 | 13,440 | 0.23 | 306525 |
| FPD 453 M | 40 | 58 | 34 | 343 | 1,200 | 11,417 | 13,577 | 0.26 | 300702 |
| FPD 453 Z | 40 | 58 | 34 | 314 | 1,200 | 11,417 | 13,577 | 0.26 | 300700 |
| FPD 463 M | 50 | 68 | 34 | 461 | 1,100 | 13,070 | 17,063 | 0.34 | 306534 |
| FPD 463 Z | 50 | 68 | 34 | 428 | 1,100 | 13,070 | 17,063 | 0.34 | 306535 |
| FPD 473 M | 60 | 78 | 34 | 588 | 1000 | 14128 | 19896 | 0.41 | 306536 |
| FPD 473 Z | 60 | 78 | 34 | 543 | 1000 | 14128 | 19896 | 0.41 | 306537 |
