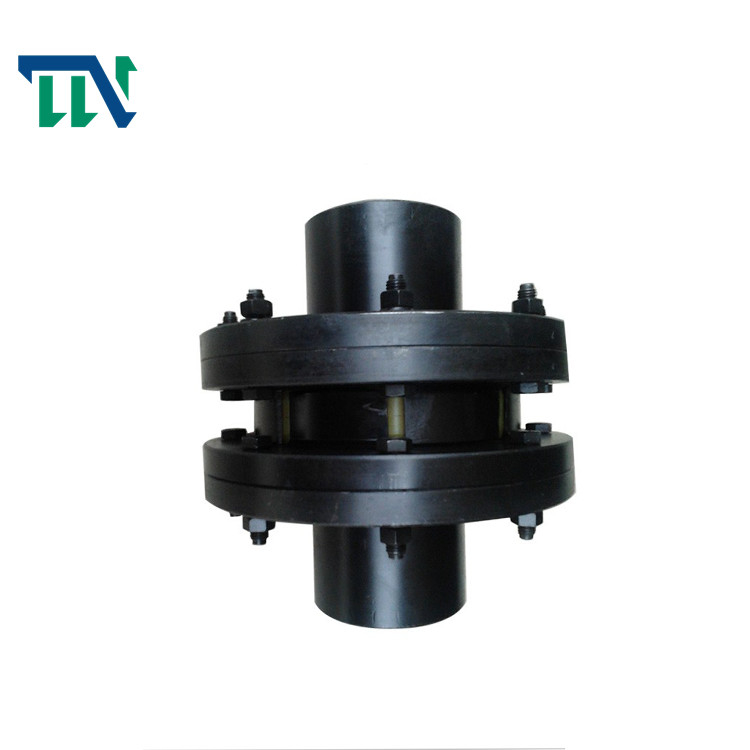

Double Flange Plum Shaft Coupling Flexible Drive Shaft Coupler Hydraulic Pump

Name: Double Flange Plum Shaft Coupling Flexible Drive Shaft Coupler Hydraulic Pump
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: LMS3
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO 9001

Model Number: LMS3

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 3-5 working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Double Flange Plum Shaft Coupling, Plum Shaft Coupling flexible, hydraulic pump couplings


Model:	LMS Plum Shaft Coupling	Warranty:	12 Months
Bore Size:	30-32mm	Length:	40mm
Weight:	0.0.34KG	Touque:	100

Model:	LMS Plum Shaft Coupling
Warranty:	12 Months
Bore Size:	30-32mm
Length:	40mm
Weight:	0.0.34KG
Touque:	100

Description

Double Flange Plum Shaft Coupling Flexible Drive Shaft Coupler Hydraulic Pump

LMS1 Type Plum Blossom Elastic Coupling Doule Flanges Shaft For Mining

Products Features

Main feature

1. Intermediate elastomer connection

2. Can absorb vibration, compensate radial, angular and axial deviation

3. Oil resistance and electrical insulation

4. Clockwise and counterclockwise rotation characteristics are exactly the same

5. Fixing with positioning screws

Scope of application

Plum couplings are widely used in CNC machine tools, CNC lathes, machining centers, engraving machines, CNC milling machines, computer gongs, metallurgical machinery, mining machinery, petroleum machinery, chemical machinery, lifting machinery, transportation machinery, light industry machinery, textile machinery , pumps, fans, etc.

Products Parameters

Type	Nominal torque(Tn/Nm)		Speed(Np)		Shaft hole diameter	Length of shaft hole			LO			D	D1	Type of elastic parts	Mass			Rotary inertia
	Hardness of elastic parts		LM	LMD ,LMS	(d1,d2,dz)	Y type	J1,Z type	L	LM	LMD	LMS		LMD ,LMS		LM	LMD	LMS			LM	LMD	LMS
	a/HA	b/HD				L		(r
	80+5	60+5	rmin-1		Mm										kg				kg/m2
LM1	25	45	15300	8500	12,14	32	27	35	86	92	98	50	90	MT1-a -b	0.66	1.21	1.33			0.0002	0.0008	0.0013
LMD1					16,18,19	42	30
LMS1					20,22,24	52	38
					25	62	44
LM2	50	100	1200	7600	16,18,19	42	30	38	95	101.5	108	60	100	MT2-a -b	0.93	1.65	1.74			0.0004	0.0014	0.0021
LMD2					20,22,24	52	38
LMS2					25,28	62	44
					30	82	60
LM3	100	200	10900	6900	20,22,24	52	38	40	103	110	117	70	110	MT3-a -b	1.41	2.36	2.33			0.0009	0.0024	0.0034
LMD3					25,28	62	44
LMS3					30,32	82	60
LM4	140	280	9000	6200	22,24	52	38	45	114	122	130	85	125	MT4-a -b	2.18	3.56	3.38			0.002	0.005	0.0064
LMD4					25,28	62	44
LMS4					30,32,35,38	82	60
					40	112	84
LM5	350	400	7300	5000	25,28	62	44	50	127	138.5	150	105	150	MT5-a -b	3.6	6.36	6.07			0.005	0.0135	0.0175
LMD5					30,32,35,38	82	60
LMS5					40,42,45	112	84
LM6	400	710	6100	4100	30,32,35,38	82	60	55	143	155	167	185	185	MT6-a -b	6.07	10.77	10.47			0.0114	0.0329	0.0444
LMD6
LMS6					40,42,45,48	112	84
LM7	630	1120	5300	3700	35,38	82	60	60	159	172	185	205	205	MT7-a -b	9.09	15.3	14.22			0.0232	0.0581	0.0739
LMD7
LMS7					40,42,45,48, 50,55	112	84
LM8	1120	2240	4500	3100	45,48,50,55,56	112	84	70	181	195	209	170	240	MT8-a -b	13.56	22.72	21.16			0.0468	0.1175	0.1493
LMD8
LMS8					60,63,65	142	107
LM9	1800	3550	3800	2800	50,55,56*	112	84	80	208	224	240	200	270	MT9-a -b	21.4	34.44	30.7			0.1041	0.2333	0.2767
LMD9					60,63,65,70,71,75	142	107
LMS9					80	172	132
LM10	2800	5600	3300	2500	60,63,65*,70, 71,75	142	107	90	230	248	268	230	305	MT10-a -b	32.03	51.36	44.55			0.2105	0.4594		0.5262
LMD10					80,85,90,95	172	132
LMS10					100	212	167
LM11	4500	9000	2900	2200	71,71,75*	142	107	100	260	284	308	260	350	MT11-a -b	49.52	81.3	70.72			0.4338	0.9777		1.1362
LMD11					80,85,90,95	172	132
LMS11					100,110,120	212	167
LM12	6300	12500	2500	1900	80,85,90*95	172	132	115	297	321	345	300	400	MT12-a -b	73.45	115.53	99.54			0.8205	1.751		1.9998
LMD12					100,110,120,125	212	167
LMS12					130,140,150	252	202
LM13	11200	2000	2100	1600	90,95	172	132	125	323	348	373	360	460	MT13-a -b	103.86	161.79	137.53			1.6718	3.667		3.6719
LMD13					100,110,120, 125	212	167
LMS13					130,140,150	252	202
LM14	12500	25000	1900	1500	100,110,120, 125	212	167	135	333	358	383	400	500	MT14-a -b	127.59	196.32	165.25			2.499	4.8669		5.1581
LMD14					130,140,150	252	202
LMS14					160	302	242

Double Flange Plum Shaft Coupling Flexible Drive Shaft Coupler Hydraulic Pump 0
