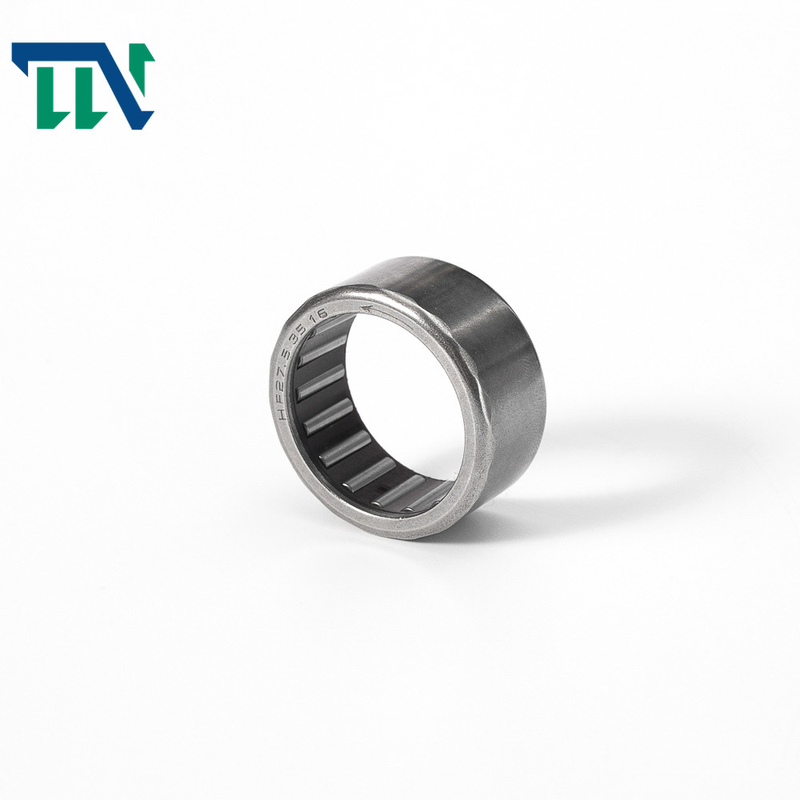

HF081412 One Way Needle Roller Bearings 8X14X12 Mop Bearing Drawn Cup

Product Details

Place of Origin: China

Brand Name: Tianniu

Model Number: HF 081412

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: USD0.1~USD15

Packaging Details: Cartons

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price
Contact Now
Specifications
Highlight:

One Way Needle Roller Bearings

,

8X14X12 Mop Bearing Drawn Cup

,

HF081412

Model:
HF Series
Warranty:
12 Months
Weight:
0.008KG
Material:
Chrome Steel
Number Of Row:
Single
Precision:
P 0
Lubrication:
Standard Grease Or Oil
Model:
HF Series
Warranty:
12 Months
Weight:
0.008KG
Material:
Chrome Steel
Number Of Row:
Single
Precision:
P 0
Lubrication:
Standard Grease Or Oil
Description
HF081412 One Way Needle Roller Bearings 8X14X12 Mop Bearing Drawn Cup

HF081412 One Way Needle Roller Bearings 8X14X12 Mop Bearing Drawn Cup



Products Introduction



Features of HF bearing for mop

Having a small cross section still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained.
Suitable for unidirectional rotation device.



The one-way drawn cup needle roller clutch bearing is composed of a thin-wall drawn cup and a plastic cage. The stamped outer ring is made of alloy steel, and the inner diameter surface has an inclined surface for clamping the needle roller. Because the radial section is thin, the inertia of the one-way extrusion outer ring needle roller clutch is very small. Each has a separate spring support, thus allowing a higher conversion frequency and conversion accuracy.

Insert a metal spring into the plastic cage. The plastic cage can keep the needle roller in normal operation. After the needle roller clutch bearing with one-way stamped outer ring is subjected to special heat treatment, its wear resistance and load carrying capacity can be greatly improved. By installing one-way drawn cup needle roller clutch bearings with drawn cup needle roller bearings of the same diameter, better support rigidity and more precise rotation performance can be obtained.

APPLICATION INDUSTRY:
The HF series of drawn cup roller clutches are particularly popular in bicycle applications. Including applications on electric bicycles (electric bicycles) and motorcycles, as well as industrial applications for overspeed clutches and speed compensation in packaging machinery. The equipment of the conveyor system.

ADVANTAGE:

1. High speed, high precision

2. Long service life

3. Low noise and good performance


HF081412 neeld bearing is one way needle roller bearing.


For this bearing,


Size: 8*14*12mm


Weight: 0.008kg/pc


Material: Chrome steel


Certificate: ISO9001: 2015


Number of Row: Single row


Structure: Needle roller bearing


Precision: Standard ABE1 or P0


Lubrication: Standard grease or oil


Also Known As: HF081412, HF 081412, etc



Products Parameters




SPECIFICATIONS
Model HF081412
Material Outer race: ST14, Holder: Nylon , Needle: Stainless Steel
Inner diameter 8mm
Outer diameter 14mm
Thickness 12mm
Torque capacity 5Nm
Weight 4g
Package roll pack
Delivery time 1 days for sample, 5-7 day for big order
Payment Terms TT, L/C, D/P, D/A, Western Union, Paypal

Catalogue of hf bearing for mop for your choice

Shaft Diameter Bearing Designation Mass Approx Dimensions Permissible Torque Limiting Speed Suitable Drawn Cup Bearings
Fw D C Rotating Shaft Min-1 Rotating Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm rpm
3 HF0306KF   0.9 3 6.5 6 0.2 36000 7000 HK0306TN
4 HF0406KF -- 1 4 8 6 0.34 34000 8000 HK0408TN
HF0406KFR -- 1 4 8 6 0.1 34000 8000 HK0408TN
6 HF0608KF   2.8 6 10 8 1.5 20000 11000 HK0608
HF0612KF HF0612 3 6 10 12 1.76 23000 13000 HK0608
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000 HK0608
  HF061210 3.5 6 12 10 3 20000 13000 HK061208
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000 HK0808
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000 HK0808
-- HF061210 3.2 8 12 10 3 16000 12000 HK0808
-- HF081410 3.6 8 14 10 4.6 15000 11000 HK081410
-- HF081610 4.1 8 16 10 5.5 15000 11000 HK081610
-- HF081412 4 8 14 12 5 16000 12000 HK081410
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000 HK1010
HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000 HK1010
12 -- HF1216 11 12 18 16 12.2 11000 8000 HK1212
14 -- HF1416 13 14 20 16 17.3 9500 8000 HK1412
16 -- HF1616 14 16 22 16 20.5 8500 7500 HK1612
18 -- HF1816 16 18 24 16 24.1 7500 7500 HK1812
20 -- HF2016 17 20 26 16 28.5 7000 6500 HK2010
25 -- HF2520 30 25 32 20 66 5500 5500 HK2512
30 -- HF3020 36 30 37 20 90 4500 4500 HK3012
35 -- HF3520 40 35 42 20 121 3900 3900 HK3512
