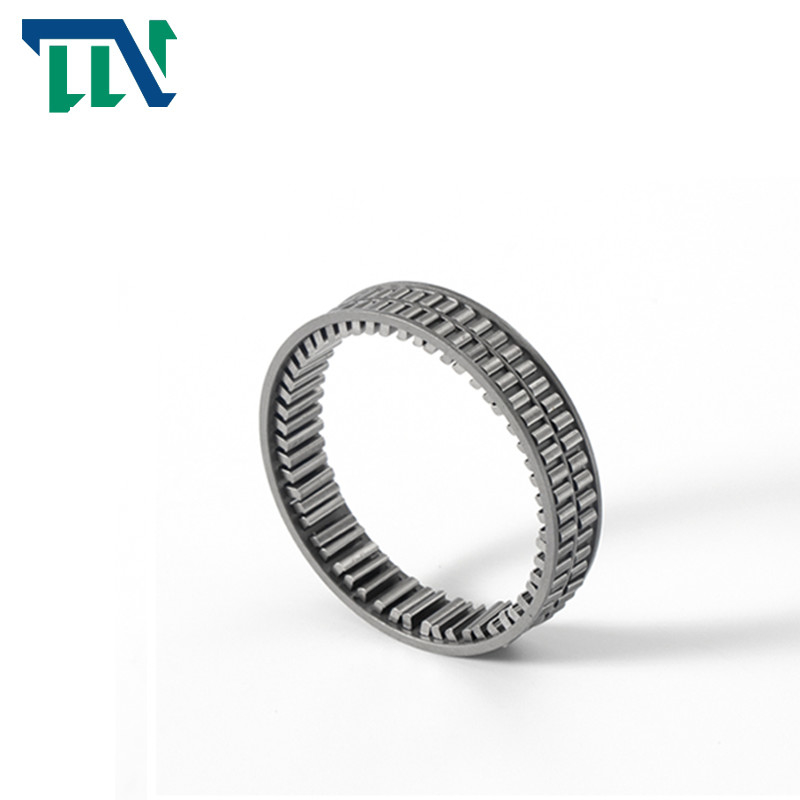

One Way Clutch Bearing FE453Z For Printing Radio Controlled Helicopter

Name: One Way Clutch Bearing FE453Z For Printing Radio Controlled Helicopter
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: FE series
Price: 7.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: FE series

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            One Way Clutch Bearing FE453Z, Helicopter One Way Clutch Bearing, Printing Helicopter One Way Bearings


Name:	FE Wedge Type One Way Bearing	Material:	GCR 15 Bearing Steel
Type:	One Way Bearings	[Nm:	293
Torque (Nm）:	4-2673 Nm	Weight (Kg):	0.003-0.02
Bore Size(mm):	4-240

Name:	FE Wedge Type One Way Bearing
Material:	GCR 15 Bearing Steel
Type:	One Way Bearings
[Nm:	293
Torque (Nm）:	4-2673 Nm
Weight (Kg):	0.003-0.02
Bore Size(mm):	4-240

Description

One Way Clutch Bearing FE453Z For Printing Radio Controlled Helicopter

One Way Clutch Bearing FE453Z For Printing Radio Controlled Helicopter

Production introduction

The type of deep groove ball Bearing 6 used in automobile, tractor, machinery, motor, water pump, agricultural machinery and textile machinery. Its wide application, simple design, non - separation, suitable for high - speed, reliable operation, low maintenance costs.The tight consistency between deep raceway and groove and ball enables deep raceway ball bearings to withstand axial loads in both directions in addition to radial loads.

The sprags are evenly spaced around the circumference of the insert element cage. The insert element cage does not come in contact with the inner or outer races; it remains absolutely loadfree under any application.

Sprag type freewheel clutches with a plastic cage in their standard design are also available as a special design with a steel cage on request.

Operating temperature:

Steel cage: max. 170

Plastic cage: max. 140

Products Parameters

Designation	d [mm]	D [mm]	W [mm]	Tnom [Nm]	nmax [rpm]	Weight [kg]	Item no.
FE 412 Z	4	12	12	4	27,000	0.003	300393
FE 416 Z	8	16	12	16	19,200	0.006	300400
FE 420 Z	12	20	12	35	12,500	0.007	306041
FE 422 Z	14	22	12	53	10,100	0.008	300405
FE 423 Z	15	23	12	62	9,200	0.009	300411
FE 425 Z	17	25	12	72	8,100	0.011	300415
FE 427 Z	19	27	12	83	7,400	0.013	300422
FE 428 Z	20	28	12	93	7,500	0.013	300430
FE 430 Z	22	30	12	107	6,300	0.014	300435
FE 432 Z	24	32	12	117	5,900	0.016	300439
FE 433 Z	25	33	12	128	6,000	0.016	300445
FE 435 Z	27	35	12	143	5,100	0.017	300448
FE 437 Z	29	37	12	154	4,800	0.018	300455
FE 438 Z	30	38	12	166	4,900	0.019	300460
FE 442 Z	34	42	12	198	4,400	0.018	300463
FE 443 Z	35	43	12	207	4,300	0.022	300469
FE 448 Z	40	48	12	248	4,200	0.024	300478
FE 453 Z	45	53	12	293	3,400	0.022	300482
FE 455 Z	47	55	12	313	3,300	0.026	300487
FE 458 Z	50	58	12	344	3,100	0.029	300489
FE 459 Z	51	59	12	353	3,000	0.030	300494
FE 463 Z	55	63	12	393	2,900	0.032	300497
FE 468 Z	60	68	12	444	2,700	0.034	300501
FE 470 Z	62	70	12	465	2,600	0.035	300505
FE 473 Z	65	73	12	495	2,500	0.037	300508
FE 478 Z	70	78	12	548	2,600	0.039	300511
FE488Z	80	88	12	657	2,100	0.045	300514
FE 508 Z	100	108	12	889	1,700	0.055	300519
FE 528 Z	120	128	12	1,127	1,300	0.066	300522
FE 648 Z	240	248	12	2,673	800	0.131	300524

One Way Clutch Bearing FE453Z For Printing Radio Controlled Helicopter 0
