Name: |
CKL-C One Way Cam Clutch |
Material: |
GCR 15 Bearing Steel |
Type: |
One Way Bearings |
Inner Race(mm): |
2500-500 |
Torque (Nm）: |
580-38000 |
Weight (Kg): |
12.5-342 |
Bore Size(mm): |
30-130 |
Name: |
CKL-C One Way Cam Clutch |
Material: |
GCR 15 Bearing Steel |
Type: |
One Way Bearings |
Inner Race(mm): |
2500-500 |
Torque (Nm）: |
580-38000 |
Weight (Kg): |
12.5-342 |
Bore Size(mm): |
30-130 |

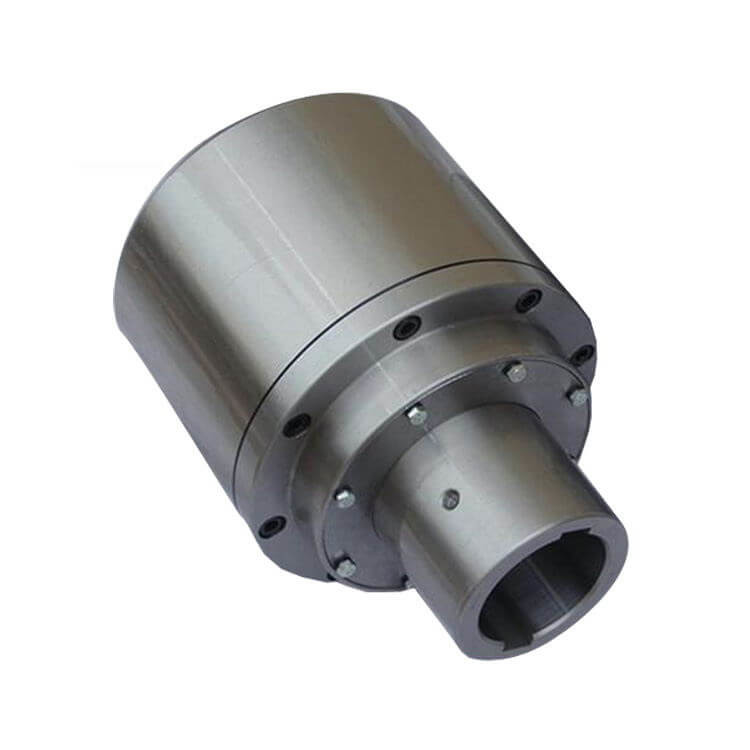

One Bearing Clutch CKL-C Series Wedge Bearing With More Torque
Production introduction
The main standards of overrunning clutch include more than 20 types, including CKA type, CKB type (B200 Series), CKZ type, CKD type (UHF type), CKX type, NYD (NJ) type and CKF type, NF type non-contact wedge overrunning clutch (NF type backstop), CG type roller overrunning clutch, CGK type controllable overrunning clutch and CKS type two-way overrunning clutch, with a total of more than 1000 specification series.
Type CKL-C is a sprag type freewheel, self-contained, sealed and bearing supported, Unit is delivered oil lubricated.
It used to transmit torque or back off in two faced shafts with displacement.compare with type CKL-A,it can transmit much more torque.
Overrunning clutch is a basic component with the development of mechatronics products. It is an important component for power transmission and separation between prime mover and working machine or between driving shaft and driven shaft in machine. It is a device with self clutch function by using the speed change or rotation direction change of the driving and driven parts.
This series is widely used in packaging, mining, metallurgy, cement, electric power and other machinery. It is often used as the switching device of two speed drive in the transmission system of overrunning clutch and medium and low speed transmission.
Products Parameters
Nm |
r/min |
mm | ||||||||||
| out race | Inner race | dH7 | D k (H7) | D | D 1 | L | L 1 | L 2 | b n ×t n | KG | ||
| CKL-C30110 | 580 | 740 | 2500 | 30 | 28-45 | 110 | 66 | 146 | 53 | 86 | 8*3.3 | 12.5 |
| CKL-C40125 | 800 | 700 | 2500 | 40 | 36-55 | 125 | 78 | 168 | 62 | 98 | 10*3.3 | 14.5 |
| CKL-C45130 | 815 | 710 | 2500 | 45 | 42-58 | 130 | 80 | 168 | 62 | 98 | 12*3.3 | 16 |
| CKL-C50150 | 1400 | 610 | 2000 | 50 | 48-65 | 150 | 94 | 207 | 82 | 117 | 14*3.8 | 24 |
| CKL-C55165 | 1700 | 600 | 2000 | 55 | 54-68 | 165 | 100 | 233.5 | 95 | 130 | 14*3.8 | 35.6 |
| CKL-C60170 | 2200 | 490 | 2000 | 60 | 58-70 | 170 | 108 | 244 | 97 | 138 | 16*4.3 | 37 |
| CKL-C70190 | 4420 | 480 | 2000 | 70 | 68-78 | 190 | 115 | 312.5 | 130 | 172.5 | 16*4.3 | 67.5 |
| CKL-C80210 | 6800 | 450 | 1500 | 80 | 78-85 | 210 | 125 | 340 | 153 | 177 | 18*4.4 | 80 |
| CKL-C90230 | 11000 | 450 | 1500 | 90 | 90-98 | 230 | 135 | 369 | 150 | 209 | 22*5.4 | 127.5 |
| CKL-C100270 | 16000 | 400 | 1500 | 100 | 96-105 | 270 | 145 | 422.5 | 186 | 222.5 | 25*5.4 | 162.5 |
| CKL-C110320 | 22000 | 350 | 1000 | 110 | 110-125 | 320 | 160 | 455 | 188 | 252 | 28*6.4 | 203 |
| CKL-C120360 | 25000 | 330 | 1000 | 120 | 115-135 | 360 | 190 | 480 | 202 | 262 | 32*7.4 | 263 |
| CKL-C130440 | 38000 | 280 | 500 | 130 | 125-150 | 400 | 210 | 500 | 207 | 275 | 36*8.4 | 342 |
