Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO-9001
Model Number: GC-A series
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-10working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
Name: |
GC-B Roller Type Without Bearing Support |
Material: |
GCR 15 Bearing Steel |
Type: |
Roller Bearings |
Thickness (mm): |
1650-275 |
Torque (Nm）: |
8.3-2500 Nm |
Weight (Kg): |
0.07-6.5 |
Bore Size(mm): |
4-60 |
Name: |
GC-B Roller Type Without Bearing Support |
Material: |
GCR 15 Bearing Steel |
Type: |
Roller Bearings |
Thickness (mm): |
1650-275 |
Torque (Nm）: |
8.3-2500 Nm |
Weight (Kg): |
0.07-6.5 |
Bore Size(mm): |
4-60 |

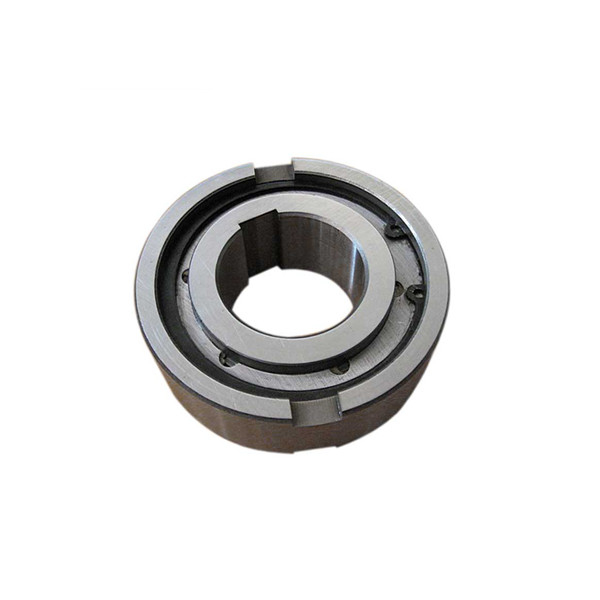

GC-B Roller Type One Way Backstop Clutch Without Bearing Support
Production introduction
Type GC-B is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outer diameter is the same as a series 63...Ball bearing.
Application: primarily used on motorcycle starter.
A typical arrangement is to install this type alongside a bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft.
The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission.
If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and uter race of ± S/2.
Products Parameters
