Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO-9001
Model Number: GC-D series
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-10working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
Name: |
GC-D Roller Type One Way Backstop Clutch |
Material: |
GCR 15 Bearing Steel |
Type: |
Roller Bearings |
Thickness (mm): |
12 |
Torque (Nm）: |
27 Nm |
Weight (Kg): |
0.07 |
Bore Size(mm): |
4-60 |
Name: |
GC-D Roller Type One Way Backstop Clutch |
Material: |
GCR 15 Bearing Steel |
Type: |
Roller Bearings |
Thickness (mm): |
12 |
Torque (Nm）: |
27 Nm |
Weight (Kg): |
0.07 |
Bore Size(mm): |
4-60 |

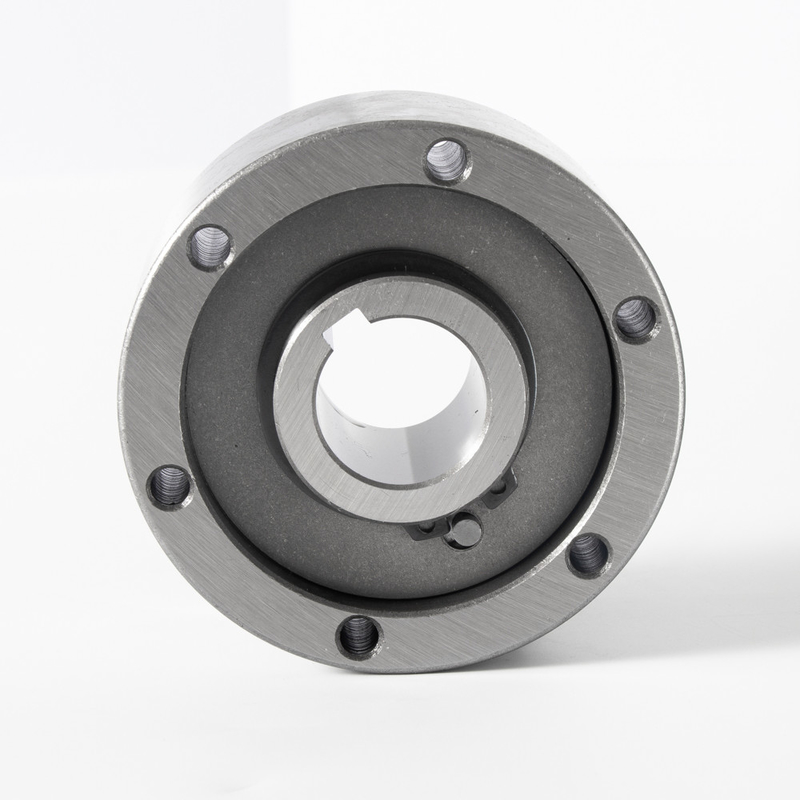

GC-D Roller Type One Way Backstop Clutch For Printing Machine
Production introduction
As a kind of clutch one way bearing, the GC-D roller type one way backstop clutch for printing machine mainly consists of cylinder inner diameter outer ring, oblique roller inner ring and a group of bearing spring force and always close to the inner and outer ring together.
Deep groove ball bearing is the most common type of rolling bearing.
The basic deep groove ball bearing consists of an outer ring, an inner circle, a set of steel balls and a set of maintenance frames.
Deep groove ball bearing type has a single row and double row two kinds, deep groove ball structure is sealed and open two kinds of structure, open without sealing structure refers to the bearing, seal type deep groove ball into dust seal and oil seal.
The dust - proof sealing material is a sheet metal stamping, which simply prevents the dust from entering the bearing roller. The oil-proof type is the contact oil seal, which can effectively prevent the grease spillover inside the bearing.
Products Parameters
| Type | Nominal Torque Nm |
Overrunning Limiting Speed r/min |
Dimension mm |
Weight Kg |
||||||
| Inner Race |
Outer Race |
d H7 |
D H7 |
F | L | n-d1 | bn×tn | |||
| GC-D1247 | 12 | 1550 | 3000 | 12 | 47 | 38 | 20 | 3-5.5 | 4×1.8 | 0.21 |
| GC-D1555 | 42 | 1150 | 2700 | 15 | 55 | 45 | 30 | 3-5.5 | 5×2.3 | 0.44 |
| GC-D2068 | 111 | 1000 | 1800 | 20 | 68 | 58 | 34 | 4-5.5 | 6×2.8 | 0.70 |
| GC-D2590 | 215 | 850 | 1300 | 25 | 90 | 78 | 37 | 6-5.5 | 8×3.3 | 1.30 |
| GC-D30100 | 380 | 750 | 1050 | 30 | 100 | 87 | 44 | 6-6.6 | 8×3.3 | 2.00 |
| GC-D35110 | 547 | 650 | 975 | 35 | 110 | 96 | 48 | 6-6.6 | 10×3.3 | 2.60 |
| GC-D40125 | 760 | 600 | 850 | 40 | 125 | 108 | 56 | 6-9.0 | 12×3.3 | 3.90 |
| GC-D45130 | 855 | 525 | 750 | 45 | 130 | 112 | 56 | 8-9.0 | 14×3.8 | 4.00 |
| GC-D50150 | 1634 | 475 | 650 | 50 | 150 | 132 | 63 | 8-9.0 | 14×3.8 | 6.00 |
| GC-D55160 | 1995 | 425 | 600 | 55 | 160 | 138 | 67 | 8-11 | 16×4.3 | 7.20 |
| GC-D60170 | 2660 | 400 | 550 | 60 | 170 | 150 | 78 | 10-11 | 18×4.4 | 9.20 |
| GC-D70190 | 4370 | 325 | 450 | 70 | 180 | 165 | 95 | 10-11 | 20×4.9 | 11.80 |
