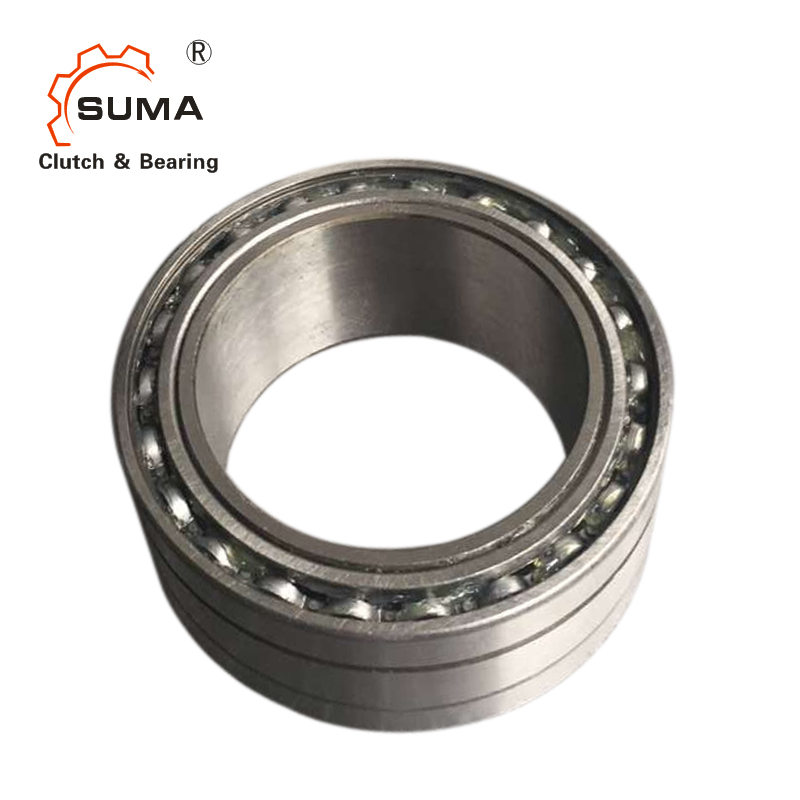

FGK40 Sprag One Way Bearing 40mm ID 310Nm Torque

Name: FGK40 Sprag One Way Bearing 40mm ID 310Nm Torque
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: FGK40
Price: 7.10 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SUMA

Model Number: FGK40

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            40mm one way bearing, high torque sprag bearing, FGK40 one way clutch bearing


Outer Diameter:	60mm	Inner Diameter:	40mm
Height:	70mm	Material:	Chrome Steel GCr15
Torque Capacity:	310Nm	Precision Rating:	P6
Seals Type:	Open	Bore Diameter:	40mm
Inner Race Speed:	4200min	Outer Race Speed:	3000min
Dynamic Load:	8650N	Static Load:	5750N
Weight:	0.30kg	Type:	Sprag
Nominal Torque:	310Nm

Outer Diameter:	60mm
Inner Diameter:	40mm
Height:	70mm
Material:	Chrome Steel GCr15
Torque Capacity:	310Nm
Precision Rating:	P6
Seals Type:	Open
Bore Diameter:	40mm
Inner Race Speed:	4200min
Outer Race Speed:	3000min
Dynamic Load:	8650N
Static Load:	5750N
Weight:	0.30kg
Type:	Sprag
Nominal Torque:	310Nm

Description

FGK40 Sprag One Way Bearing 40mm ID 310Nm Torque

FGK 40 One Way Bearing Sprag Indexing Freewheel Clutch FGK40

Product Specifications

Attribute	Value
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works, Energy & Mining
Type	Sprag
Precision Rating	P6
Seals Type	Open
Outer Diameter	60mm
Inner Diameter	40mm
Height	70mm
Material	Chrome steel GCr15
Torque	310Nm
Delivery Time	5-7 days
Package	Wooden box

Product Description

The FGK 40 is a high-performance sprag-type indexing freewheel clutch with bearing support, designed for demanding industrial applications.

Key Features

Sprag-type freewheel clutch with bearing support
Precision engineered for reliable performance
Chrome steel GCr15 construction for durability
High torque capacity of 310Nm
Available in multiple configurations

Applications

Backstops
Overrunning Clutches
Indexing Freewheels
Automotive systems
Power tools
Textile machinery

Technical Specifications

Model	Material	Bore Diameter	Outer Diameter	Height	Torque Capacity	Inner Race Speed	Outer Race Speed
FGK40	GCr15	40mm	62mm	70mm	310Nm	4200min	3000min

Product Images

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) specializes in producing high-quality cam clutches, one-way bearings, and overrunning clutches for industrial applications.

Our commitment: Best Quality, Best Price, Fast Delivery, Best Service to ensure complete customer satisfaction.

Frequently Asked Questions

How do you pack the goods?

Less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

Yes, we highly encourage customers to request samples for quality verification.

Can you promise to deliver the goods on time?

Small items: In stock
Medium items: 10-15 days
Large items: 20-25 days
