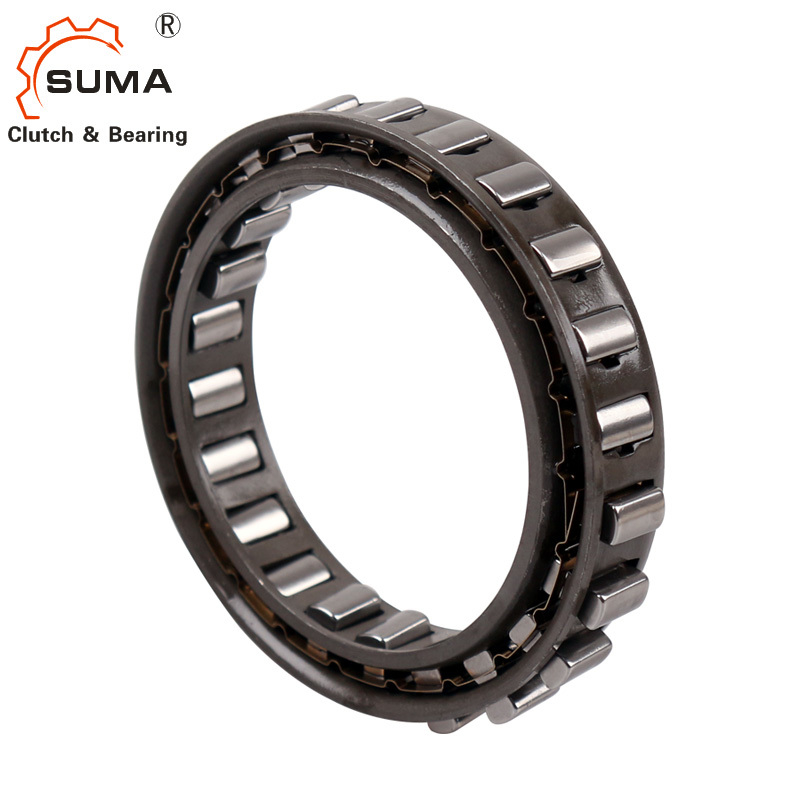

19mm Sprag Clutch One Way Bearing DC4972H 4C 306Nm Torque

Name: 19mm Sprag Clutch One Way Bearing DC4972H 4C 306Nm Torque
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: DC4972H(4C) / BWX137222
Price: 10.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SUMA or OEM

Model Number: DC4972H(4C) / BWX137222

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $10-11

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            19mm sprag clutch one way bearing, one way bearing 306Nm torque, DC4972H one way bearing


Type:	Sprag	Precision Rating:	P0
Seals Type:	Open Type	Number Of Clips:	4
Race Material:	GCr15	Thickness:	19MM
Sprag Hardness:	HRC58-62	Torque Capacity:	306Nm
Drag Torque:	245Nm	Inner Diameter:	49.721mm
Outer Diameter:	66.381mm	Sprag Space:	8.33mm
Minimum Plain Width:	13.5mm	Surface Hardness:	HRC60-62
Hardness Depth:	0.6mm

Type:	Sprag
Precision Rating:	P0
Seals Type:	Open Type
Number Of Clips:	4
Race Material:	GCr15
Thickness:	19MM
Sprag Hardness:	HRC58-62
Torque Capacity:	306Nm
Drag Torque:	245Nm
Inner Diameter:	49.721mm
Outer Diameter:	66.381mm
Sprag Space:	8.33mm
Minimum Plain Width:	13.5mm
Surface Hardness:	HRC60-62
Hardness Depth:	0.6mm

Description

19mm Sprag Clutch One Way Bearing DC4972H 4C 306Nm Torque

BWX137222 DC4972H(4C) 19MM Thickness Sprag Type One Way Freewheel Cage

Product Specifications

Attribute	Value
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining
Type	sprag
Precision Rating	P0
Seals Type	Open Type
Product name	Sprag Clutch
Number of clips	4
Race Material	GCr15
Thickness	19MM
Sprag Hardness	HRC58-62
Torque Capacity	306Nm
Package	Each in White Box
Port	Shanghai, Ningbo
Delivery time	1-2 Days

Product Description

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

The DC type version-N accepts all types of lubricants currently used in the power transmission equipment. The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly.

Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0.6 mm minimum.

Available Sizes

Type	Drag torque (NM)	Size (mm)	Number of clips
DC2222G	50	22.225
DC2776	95	27.762
DC3034	99	30.34
DC3175(3C)	127	31.75	3
DC3809A	220	38.092
DC4127(3C)	179	41.275	3
DC4445A	290	44.45
DC4972(4C)	245	49.721	4
DC5476A	420	54.765
DC5476A(4C)	420	54.765	4
DC5476B(4C)	615	54.765	4
DC5476C(4C)	792	54.765	4
DC5776A	483	57.76
DC6334B	645	63.34
DC7221(5C)	540	72.217	5
DC7221B	1023	72.217
DC7221B(5C)	1023	72.217	5
DC7969C(5C)	1630	79.698	5
DC8334C	1645	83.34
DC8729A	1000	87.29
DC10323A(3C) *	1290	103.231 **	3
DC12334C *	3840	123.34 **
DC12388C(11C)	3900	123.881	11
