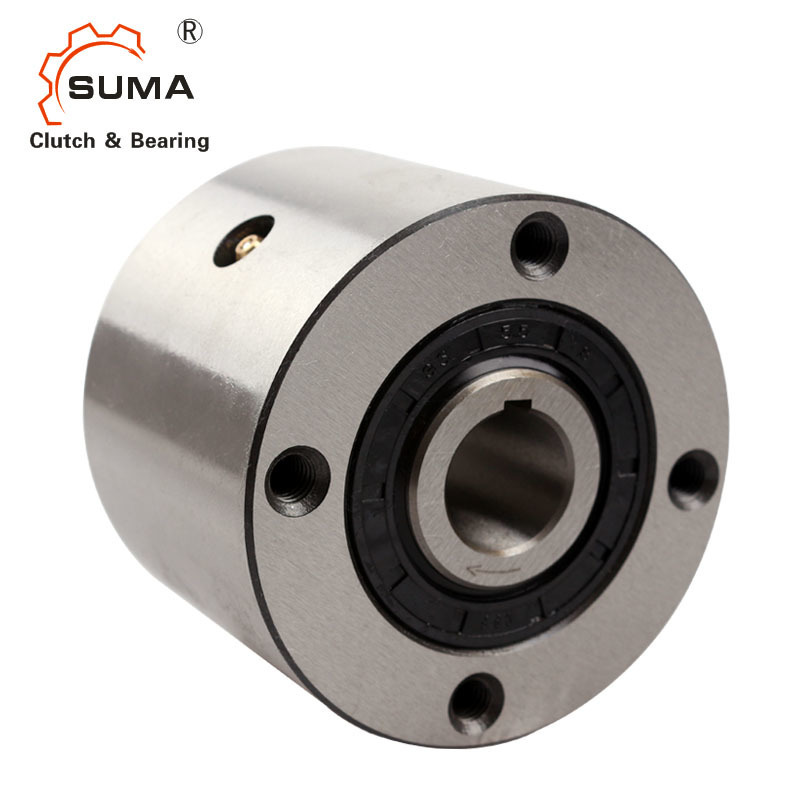

MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

Name: MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: MI300 MG300
Price: 126.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SUMA

Model Number: MI300 MG300

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $108-145

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            MI300 cam clutch bearing 314Nm torque, one way bearing for printing, 300 cycles per minute cam bearing


Precision Rating:	P0	Seals Type:	OPEN
Type:	CAM, Cam Clutch	Torque Capacity:	314 Nm
Max Indexing:	300 Cycle/min	Drag Torque:	0.31 Nm
Weight:	1.8 Kg	Bore Size:	19 Mm
Outer Race:	77 Mm	Keyway:	5x2
PCD:	63 Mm	H-M:	13 Mm
Tapped Holes:	4xM6xP1.0	Max Overrunning:	2800 R/min
Max Indexing Speed:	900 Cycle/min

Precision Rating:	P0
Seals Type:	OPEN
Type:	CAM, Cam Clutch
Torque Capacity:	314 Nm
Max Indexing:	300 Cycle/min
Drag Torque:	0.31 Nm
Weight:	1.8 Kg
Bore Size:	19 Mm
Outer Race:	77 Mm
Keyway:	5x2
PCD:	63 Mm
H-M:	13 Mm
Tapped Holes:	4xM6xP1.0
Max Overrunning:	2800 R/min
Max Indexing Speed:	900 Cycle/min

Description

MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

MI300 MG300 One Way Cam Clutch Bearing for Offset Printing Machine

Key Features

Primarily designed for indexing applications
Delivers high-precision intermittent feed
Ideal for medium- and low-speed indexing with short feed lengths
Excellent performance in continuous engagement operations with load changes

Specifications

Item	MI300 one way cam clutch
Precision	P0
Type	cam
Bore size (mm)	19
Outer race (mm)	77
Torque (KN)	314Nm
Max. Indexing (cycle/min)	300
Drag Torque(Nm)	0.31
Weight (kg)	1.8kg
Package	wooden box or customizable
Delivery time	5-7 days after order confirmed
Payment terms	L/C, T/T, D/P, D/A, Western Union

Technical Parameters

Model	Torque			Max.		Bore Size	Keyway	Dimensions (mm)			PCD	Tapped Holes	Weight (kg)
Model	Capacity (Nm)	Drag Torque (Nm)	Overrunning (r/min)	Indexing (cycle/min)	A	Bore Size	Keyway	B	C		PCD	Tapped Holes	Weight (kg)
MG 300	314	0.23	2800	900	19	5x2	63	77	60	66	4xM6xP1.0	1.8

Product Images

Application Examples

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

We highly encourage requesting samples for quality verification.

Can you promise timely delivery?
