CKA40100 One Way Bearing 40x100x34mm 780Nm Torque Capacity

Name: CKA40100 One Way Bearing 40x100x34mm 780Nm Torque Capacity
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: CKA 40100
Price: 28.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SUMA

Model Number: CKA 40100

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: $26-30

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            40x100x34mm one way bearing, high torque one way bearing, 780Nm capacity one way bearing


Precision Rating:	P6	Seals Type:	Open
Type:	SPRAG	Material:	Steel, GCr15
Torque Capacity:	780Nm	Inner Diameter:	40mm
Outer Diameter:	100mm	Thickness:	34mm
Weight:	1.2Kg	Structure:	Sprag Type
Overrunning Speed:	560r/min	Limiting Speed:	200r/min
Bearing Width:	34mm	Bearing Type:	Non-bearing Supported
Lubrication:	Grease Lubricated

Precision Rating:	P6
Seals Type:	Open
Type:	SPRAG
Material:	Steel, GCr15
Torque Capacity:	780Nm
Inner Diameter:	40mm
Outer Diameter:	100mm
Thickness:	34mm
Weight:	1.2Kg
Structure:	Sprag Type
Overrunning Speed:	560r/min
Limiting Speed:	200r/min
Bearing Width:	34mm
Bearing Type:	Non-bearing Supported
Lubrication:	Grease Lubricated

Description

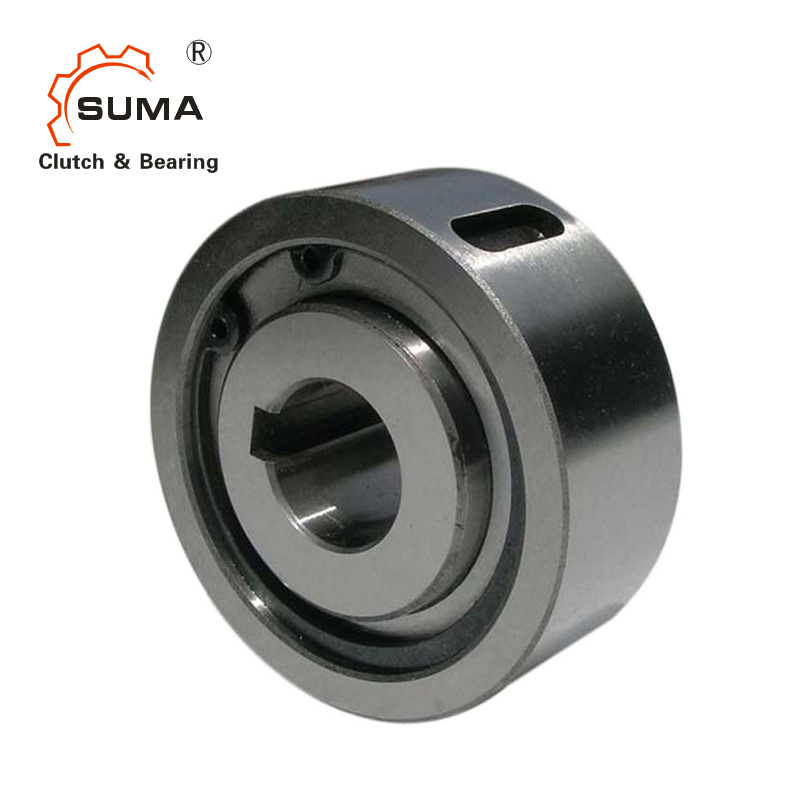

CKA40100 One Way Bearing 40x100x34mm 780Nm Torque Capacity

CKA40100 100mm Outside Diameter One Way Clutch Bearing 40x100x34mm

Product Description

The CKA40100 is a sprag type freewheel non-bearing supported one way clutch bearing. This unit requires separate bearings to support axial and radial loads and comes pre-lubricated with grease.

Key Features

Sprag type freewheel design
Requires separate bearings for axial/radial load support
Factory grease lubricated
High torque capacity (780Nm)
Durable GCr15 material construction

Technical Specifications

Product Name	One way clutch bearing
Model	CK-A 40100
Material	GCr15
Inner Diameter	40mm
Outer Diameter	100mm
Thickness	34mm
Torque Capacity	780Nm
Weight	1.2Kg
Structure	Sprag type
Applications	Packing machines, printing machines, conveyors, hoisters, textile machines, medical equipment, chemical equipment
Package	Wooden box
Payment Terms	TT, L/C, D/A, D/P, Western Union, Paypal
Delivery Time	3-5 Days

Product Images

Product Catalog

Model	Nominal Torque [N.m]	Overrunning Limiting Speed (r/min)	Dimension [mm]	Bearing	Weight [kg]
		Inner race	Outer race	D[h7]	B	bwxtw	d[h7]	C	bnxtn
CK-A1542	54	1750	500	42	23	3x1.8	15	24	3x1.4	6302	0.17
CK-A40100	780	560	200	100	34	10x5.0	40	34	10x3.3		1.2

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) specializes in manufacturing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and other high technology bearings.

We adhere to "Best Quality, Best Price, Fast Delivery, Best Service" to ensure complete customer satisfaction.

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

We highly encourage customers to request samples for quality verification.

Can you promise to deliver the goods in time?

Small items: In stock

Medium Items: 10-15 Days

Big items: 20-25 Days
