GVG series Backstop Clutch with Torque Arm GVG20

Name: GVG series Backstop Clutch with Torque Arm GVG20
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: GVG series
Price: 149.10 USD
Availability: InStock

Brand Name:	Tianniu
Model Number:	GVG series
MOQ:	1 pcs
Price:	Negotiable
Delivery Time:	5-10working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO-9001

Name:

GVG Series Backstop Clutch With Torque Arm

Material:

GCR 15 Bearing Steel

Type:

One Way Bearings

Thichness (mm):

83-300

Torque (Nm）:

265-11000

Weight (Kg):

1.3-42

Bore Size(mm):

20-120

Warranty:

12 Months

Packaging Details:

Cartons by sea shipping by airplane

Supply Ability:

10000 per month

Product Description

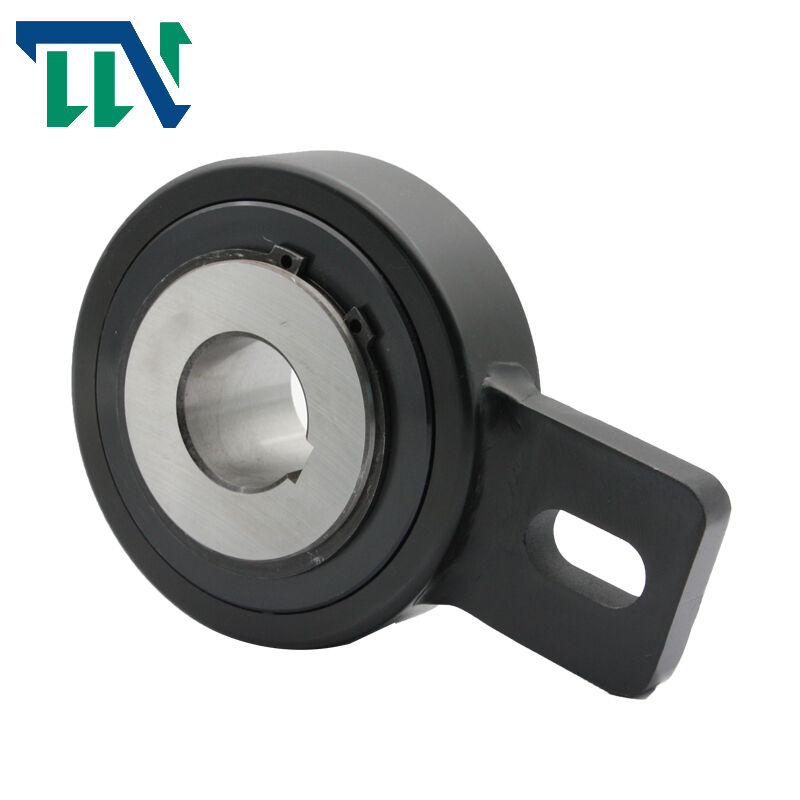

GVG series Backstop Clutch with Torque Arm

GVG series Backstop Clutch with Torque Arm GVG20 0

Production introduction

GvG series freewheels are with sprags cages, centering between the inner race and
outer race is carried out by means of bushes.
the torque forces are transmitted from the shaft to the inner race by means of a key.
shaft tolerance must be h6.
When the freewheel is used as a non return device, the lever fixed to the outer race
must be sandwiched between two brackets; otherwise a pin must be inserted in the
looped hole. When locked to the frame of a machine, it stops the freewheel rotating.
If the freewheel is used as an intermittent feed, the lever must be attached
lengthways using the hole for a pushrod or similar. In any case, to avoid overloading
the bushes, the lever must be given a certain amount of clearance to allow for the axial
movement.
the freewheel is supplied already greased.

Products Parameters

Model	dH7	D	L	B1	L1	b2	l2	l3	l4	Weight (kg)	Max.speed (rpm)	Torque (Nm)
GVG20	20	106	48	40	15	18	35	10.5	113	2.5	400	606
GVG25	25	106	48	40	15	18	35	10.5	113	2.4	400	606
GVG30	30	106	48	40	15	18	35	10.5	113	2.3	400	606
GVG35	35	106	48	40	15	18	35	10.5	125	2.2	400	606
GVG40	40	132	52	60	15	18	35	10	125	4	300	1295
GVG45	45	132	52	60	15	18	35	10	125	3.8	300	1295
GVG50	50	132	52	60	15	18	35	10	125	3.7	300	1295
GVG55	55	132	52	60	15	18	35	10	125	3.5	300	1295
GVG60	60	161	54	70	15	18	35	10	140	6.1	250	2550
GVG70	70	161	54	70	15	18	35	10	140	5.7	250	2550
GVG80	80	190	70	70	20	25	45	15	165	10.2	200	4875
GVG90	90	290	70	70	20	25	45	15	165	9.6	200	4875
