Model: |
JS Series |
Material: |
45# Steel |
Structure: |
Snake Type Shaft Coupling |
Warranty: |
12 Months |
Bore Size: |
18-500mm |
Length: |
47-432mm |
Elastomer Materia: |
PA66 |
Surface Treatment: |
Anodic Oxidation Treatment |
Model: |
JS Series |
Material: |
45# Steel |
Structure: |
Snake Type Shaft Coupling |
Warranty: |
12 Months |
Bore Size: |
18-500mm |
Length: |
47-432mm |
Elastomer Materia: |
PA66 |
Surface Treatment: |
Anodic Oxidation Treatment |

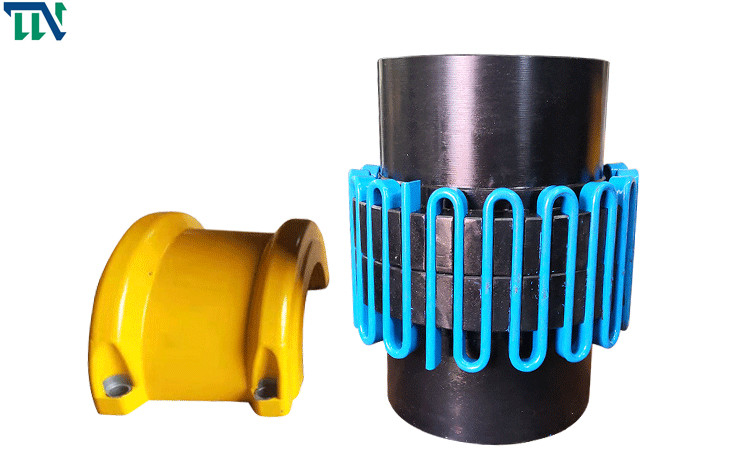

Steel Snake Type Spring Flexible Coupling For Crusher Reducer
Products Features
he main structure of serpentine spring coupling is composed of two half couplings, two half covers, two sealing rings and serpentine spring sheets. It transmits torque by inserting the serpentine spring into the teeth of the two half couplings, and the coupling inserts the serpentine spring into the teeth of the two half couplings to realize the link between the driving shaft and the driven shaft. During operation, the driven end is driven by the axial force of the driving end teeth facing the snake spring to transmit the torque, so as to avoid the resonance phenomenon to a great extent, and the elastic variable generated by the spring when transmitting the torque enables the mechanical system to obtain a better vibration reduction effect, with an average vibration reduction rate of more than 36%.
1. Good vibration damping and long service life.
2. Large range of bearing variable load and safe starting.
3. High transmission efficiency and reliable operation.
4. Low noise and good lubrication.
5. The utility model has the advantages of simple structure and convenient assembly and disassembly.
6. The whole machine has few parts, small volume and light weight.
7. Large installation deviation is allowed.
> It is suitable for the connection of motor and reducer, and has a wide range of applications
> High quality 45 steel forgings
> It can be used in the scene of large torque change and has a good buffer effect
Products Parameters
Product Appliaction
1. JS serpentine spring coupling is applicable to the medium and high-power transmission shaft system connecting two coaxial lines. It has certain compensation for the relative offset of the two shafts, vibration reduction and cushioning performance. The working temperature is - 30 ℃ ~ + 150 ℃, and the transmission nominal torque is 45 ~ 800000n m.
2. JS serpentine spring coupling is mainly used in crusher, crank reciprocating motion, reducer, metallurgy, mining, hoisting machinery, etc.
3. JS type serpentine spring coupling is used for shaft transmission of other machines and equipment. It can be used where there is a motor connected with the operator, a motor connected with the reducer or a shaft connected with the shaft
