Z13 Best-selling Locking Assembly Locking Shaft RLK302

Name: Z13 Best-selling Locking Assembly Locking Shaft RLK302
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: Z13
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: Z13

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-7working days

Supply Ability: 1000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            RLK302 Locking Assembly, Shaft Locking Assembly, Z13 Locking Assembly


Model Number:	Z13 Locking Assembly	Material:	GCr15 Bearing Steel
Weight:	0.5-10.66KG	Outer Diameter:	47-235mm
Thickness (mm):	60-155	Bore Size:	20-180 Mm
Torque (kNm:	0.5-66

Model Number:	Z13 Locking Assembly
Material:	GCr15 Bearing Steel
Weight:	0.5-10.66KG
Outer Diameter:	47-235mm
Thickness (mm):	60-155
Bore Size:	20-180 Mm
Torque (kNm:	0.5-66

Description

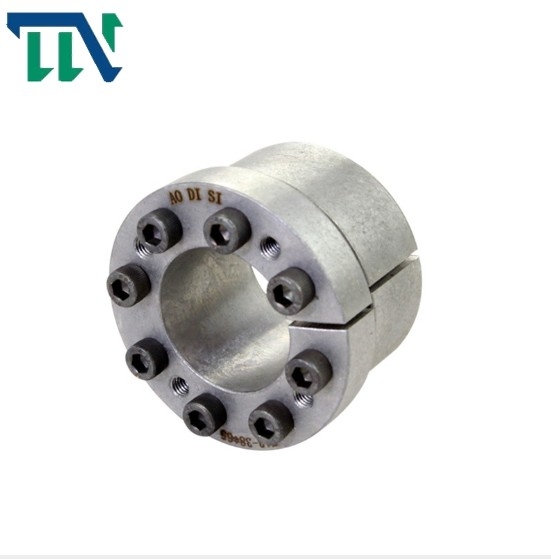

Z13 Best-selling Locking Assembly Locking Shaft RLK302

Z13 Best-selling Locking Assembly Locking Shaft RLK302

Products Features

Model		Z13 Cone Clamping Elements
Pressure on Shaft (N/mm2)		120
Pressure on Hub (N/mm2)		92-108
Rated Load (kN.m)	Force	54-270
	Torque	0.54-13.3
Inner Race Size (mm)		20-100
Outer Race Size (mm)		47-145
Thickness (mm)		48-77
Weight (Kg)		0.51-4.62

Advantage

Most widely used model with full sizes
High torque transmission
After tightening, the hub can move axially

Locking Assembly is a new type of connection. It relies on tightening high-strength bolts to generate positive pressure between the Locking assembly and the shaft or between the housing surface, which is accompanied by friction and a keyless connection device that realizes load transmission. It has many unique advantages and characteristics compared with the traditional mechanical connection method of general

interference without bond and bond

Changzhou TIANNIU Transmission Equipment Co., Ltd (Changzhou TIANNIU Clutch Factory) is a professional one way clutch bearing supplier, the primary products are micro electromagnetic clutch, torque limiter coupling, sliding shaft coupling, flexible propeller shaft coupling, locking assembly and shaft couplings, etc.

We have been in Sprag Clutch Bearing and clutch one way bearing industry for more than 10years, persisting in the business principle of products tailored to requirements from clients.We service through listening to our customers, applying innovation and building with craftsmanship to meet all their needs

Products Parameters

基本尺寸 fundamental dimensions							内六角螺钉internal hexagon headed bolt		额定负荷 Rated load		M_A (N·m)	Pf (N/mm2)	G (kg)
d	D	L1	L2	L3	L4	D1	规格 sizes	数量 Qty	F_t (kN)	M_t (kN·m)
mm							规格 sizes	数量 Qty	F_t (kN)	M_t (kN·m)
20	47					53				0.54		276	0.51
22	47					53				0.6		253	0.53
24 25	50 50	48	42	29	26	56 56	M6	7	54	0.65 0.68	14	230 222	0.55 0.62
28	55					61				0.76		198	0.65
30	55					61				0.82		186	0.70
32	60					66				1.31		261	0.80
35 38	60 65	48	42	29	26	66 71	M6	11	82	1.44 1.56	14	240 220	0.81 0.90
40	65					71				1.64		209	1.33
42	75					81		6	101	2.13		213	1.24
45	75					81		6	101	2.28		199	1.35
48	80					86		6	101	2.43		186	1.41
50	80	59	51	34.4	30	86	M8	6	101	2.53	41	179	1.44
55	85					91		9	152	4.18		244	1.45
60	90					96		9	152	4.56		224	1.55
65	95					102		9	152	4.94		206	1.67
70	110					117		7	186	6.5		176	2.61
75	115					122		7	186	7.0		165	2.75
80 85	120 125	66	56	45	40	127 132	M10	7 8	186 213	7.4 9.0	83	153 165	2.89 3.04
90	130					137		8	213	9.6		157	3.18
95	135					142		10	267	12.6		185	3.33
100	145					152		7	270	13.3		153	4.62
110 120	155 165	77	65	52	46	163 173	M12	7 8	270 309	14.7 18.4	145	140 147	5.00 5.37
130	180					188		10	388	25.1		171	6.46
140	190					199		11	586	40.5		213	7.73
150	200					209		12	639	47.0		217	8.21
160	210	87.5	73.5	58.5	51	219	M14	13	692	54.3	230	220	8.64
170	225					234		14	746	63.0		226	10.14
180	235					244		14	746	66.0		212	10.66
