20mmX25mm Oldham Shaft Coupling Clamp Sintered Aluminum Jaw M4

Name: 20mmX25mm Oldham Shaft Coupling Clamp Sintered Aluminum Jaw M4
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: GH 20*25
Price: 149.10 USD
Availability: InStock

Brand Name:	Tianniu
Model Number:	GH 20*25
MOQ:	Negotiation
Price:	Negotiation
Delivery Time:	5-7 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2005

Name:

Oldham Shaft Coupling

Material:

Aluminium Steel

Inner Diameter:

16-70mm

Model:

GH Series

Structure:

Oldham Shaft Coupling

Warranty:

12 Months

Surface Treatment:

Anodic Oxidation Treatment

Flexible Or Rigid:

Flexible

Packaging Details:

Cartons by sea shipping by airplane

Supply Ability:

10000 per month

Highlight:

20mm shaft coupling

25mm shaft coupling

oldham coupling supplier

Product Description

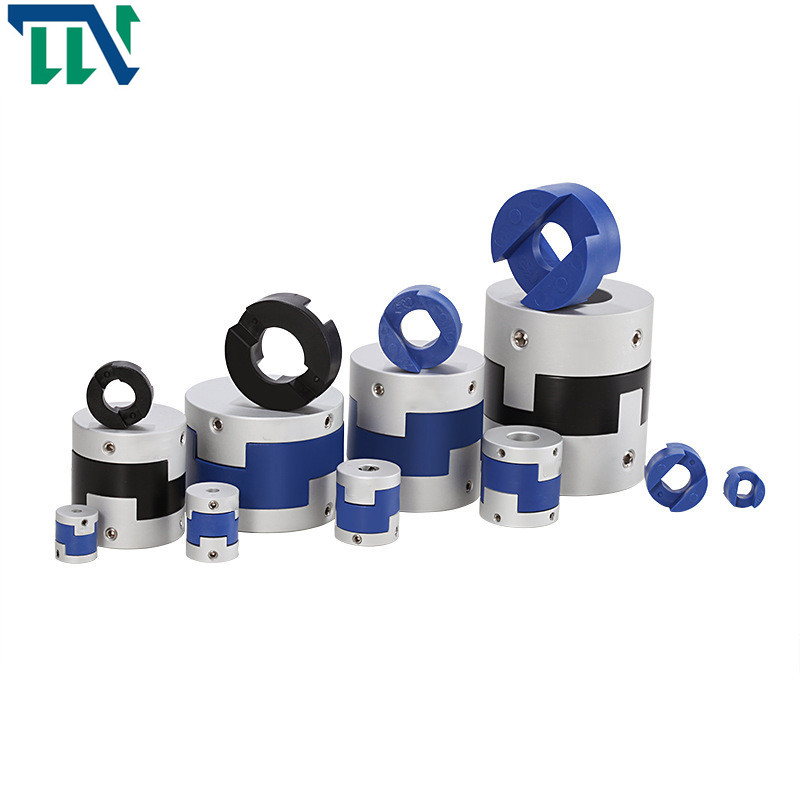

GH 20*25 M3 Oldham Type Shaft Coupling For Mechanism Connection

Products Introduction

Shaft coupling refers to the situation that two parts of the power transmission device and the rotating shaft are not connected together during normal movement. Sometimes it is also used as a safety device to prevent the connected parts from bearing excessive load and play the role of overload protection.

Oldham type shaft coupling are designed to clamp evenly around the shaft and provide greater retention than fixed screw couplings without damaging shaft. Then tighten the clamping screws to secure. These are Oldham couplings

Products Parameters

20mmX25mm Oldham Shaft Coupling Clamp Sintered Aluminum Jaw M4 0

Production Datasheet

model parameter	common bore diameter d1,d2	ΦD	L	LF	LP	F	M	tightening screw torque (N.M)
GH-16X18	4,5,6,6.35,7,8	16	18	7.1	11.6	3.55	M3	0.7
GH-20X25	5,6,6.35,7,8,9,9.525	20	25	9.1	12.7	4.55	M4	1.7
GH-25X28	5,6,6.35,8,9,9.525,10,11,12,14	25	28	11.7	16.65	5.58	M4	1.7
GH-32x33	5,6,8,9,9.525,10,11,12,12.7,14,15,16	32	33	14	19.5	7	M4	1.7
GH-40X35	8,9,9.525,10,11,12,12.7,14,14,16,17,18,19,20	40	35	15.5	18.4	7.75	M4	1.7
GH-45X46	8,9,9.525,10,11,12.7,14,15,16,17,18,19,20,22	45	46	21.5	18.4	9	M5	4
GH-50X38	10,12,12.7,14,15,16,17,18,19,20,22,24,25	50	38	16.5	15	8.25	M5	4
GH-55X57	10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32	55	57	27	17.5	10.5	M5	4
GH-63X47	14,15,16,17,18,19,20,22,24,25,28,30,32	63	47	21	17.5	10.5	M6	8.4
GH-70X77	16,17,18,19,20,22,24,25,28,30,32,38,40	70	77	36.5	25	13.5	M8	10.5

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	Material of shaft sleeve	Material of shrapnel	surface treatment	weight (g)
GH-16X18	0.7	0.8	3	±0.2	9000	30	3.3x10-7	High strength aluminum alloy	P A 6 6	Anodizing treatment	6
GH-20X25	1.2	1.2	3	±0.2	7000	58	1.1x10-6				18
GH-25X28	2	1.6	3	±0.2	6000	130	3.1x10-6				25
GH-32x33	4.5	2	3	±0.2	4800	270	9.6x10-6				44
GH-40X35	9	2.4	3	±0.2	3600	520	2.3x10-5				81
GH-45X46	12	2.8	3	±0.2	3500	560	3.8x10-5				136
GH-50X38	19	2.6	3	±0.2	3000	800	1.8x10-4				142
GH-55X57	22	3.3	3	±0.2	2800	795	8.0x10-4				255
GH-63X47	19	3	3	±0.2	2500	1200	8.3x10-4				320
GH-70X77	56	3.8	3	±0.2	2500	1260	3.9x10-4				445
