Power Transmission Aluminum Flexible Coupling Oldham Shaft Coupler 63X71mm

Name: Power Transmission Aluminum Flexible Coupling Oldham Shaft Coupler 63X71mm
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: GHC 63*71
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO 9001

Model Number: GHC 63*71

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-7 working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    aluminum flexible coupling 63X71mm, aluminum flexible shaft coupling, oldham shaft


Name:	Oldham Shaft Coupling	Material:	Aluminium Steel
Inner Diameter:	16-70mm	Model:	GHC Series
Structure:	Oldham Clamping Type	Warranty:	12 Months
Surface Treatment:	Anodic Oxidation Treatment	Flexible Or Rigid:	Flexible

Name:	Oldham Shaft Coupling
Material:	Aluminium Steel
Inner Diameter:	16-70mm
Model:	GHC Series
Structure:	Oldham Clamping Type
Warranty:	12 Months
Surface Treatment:	Anodic Oxidation Treatment
Flexible Or Rigid:	Flexible

Description

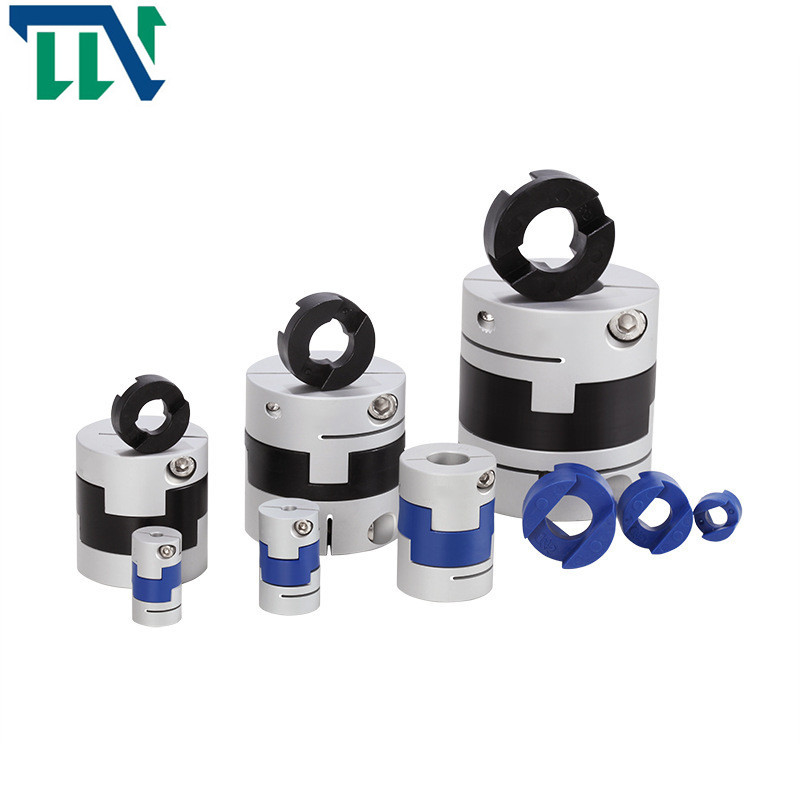

Power Transmission Aluminum Flexible Coupling Oldham Shaft Coupler 63X71mm

GHC 63X71 Shaft Coupling With Clamping For Industry Connection

Products Introduction

The Oldham type shaft coupling are designed to clamp evenly around the shaft and provide greater retention than fixed screw couplings without damaging shaft. Then tighten the clamping screws to secure. These are Oldham couplings. We are the manufactures of producing all kinds of shaft coupling. Customized couplings are also acceptable.

1. The middle of the coupling is connected with a cross slider

2. Large radial and angular deviations are allowed

3. Zero swing clearance

4. High torque rigidity and sensitivity

5. Simple structure, oil corrosion resistance and point insulation

Products Parameters

Production Drawings

Power Transmission Aluminum Flexible Coupling Oldham Shaft Coupler 63X71mm 0

Production Datasheet

model parameter	common bore diameter d1,d2	ΦD	L	LF	LP	F	M	tightening screw torque (N.M)
GHC-16X21	4,5,6,6.35	16	21	8.6	11.6	2.5	M2.5	1
GHC-16X30	4,5,6,6.35	16	30	13.1	11.6	3	M2.5	1
GHC-20X22	5,6,6.35,7,8	20	22	8.6	12.7	2.5	M2.5	1
GHC-20x33	5,6,6.35,7,8	20	33	14.1	12.7	3	M2.5	1
GHC-25x28	5,6,6.35,8,9,9.525,10,11,12	25	28	11.7	16.65	3	M3	1.5
GHC-25X39	5,6,6.35,8,9,9.525,10,11,12	25	39	17.2	16.65	4.2	M3	1.5
GHC-32X33	5,6,8,9,9.525,10,11,12.12.7,14,15,16	32	33	14	19.5	3	M4	2.5
GHC-32X45	5,6,8,9,9.525,10,11,12,12.7,14,15,16	32	45	20	19.5	4.5	M4	2.5
GHC-40X50	8,9,9.525,10,11,12,14,15,16,17,18,19	40	50	23	18.4	7	M5	7
GHC-45X46	8,9,9.525,10,11,12,14,15,16,17,18,19,20,22	45	46	21	18.4	7	M5	7
GHC-50X53	10,11,12.7,14,15,16,17,18,19,20,22,24	50	53	24	15	7.5	M6	12
GHC-50X58	10,11,12.7,14,15,16,17,18,19,20,22,24	50	58	26.5	17.5	8	M6	12
GHC-55X57	10,11,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32	55	57	26	17.5	7.8	M6	12
GHC-63X71	14,15,16,17,18,19,20,22,24,25,28,30,32	63	71	33	24	10	M8	20
GHC-70X77	14,15,16,17,18,19,20,22,24,25,28,30,32,35,38	70	77	29.5	25	12	M8	20

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	Material of shaft sleeve	Material of shrapnel	surface treatment	weight (g)
GHC-16X21	0.7	0.8	3	±0.2	8500	30	5.5x10-7	High strength aluminum alloy	P A 6 6	Anodizing treatment	8
GHC-16X30	0.7	0.8	3	±0.2	9000	30	5.9x10-7				12
GHC-20X22	1.2	1.2	3	±0.2	6500	58	1.3x10-6				13
GHC-20x33	1.2	1.2	3	±0.2	7000	58	1.5x10-6				19
GHC-25X28	2	1.6	3	±0.2	5500	130	4.0x10-6				24
GHC-25X39	22	1.6	3	±0.2	6000	130	4.5x10-6				35
GHC-32X33	4.5	2	3	±0.2	4500	270	1.3x10-5				48
GHC-32X45	4.5	2	3	±0.2	4800	270	1.5x10-5				67
GHC-40X50	9	2.4	3	±0.2	3600	520	4.2x10-5				114
GHC-45X46	12	2.5	3	±0.2	3500	800	4.5x10-5				140
GHC-50X53	19	2.6	3	±0.2	3000	800	1.0x10-4				190
GHC-50X58	19	3	3	±0.2	3000	800	1.1x10-4				215
GHC-55X57	25	3.2	3	±0.2	3000	900	1.3x10-5				260
GHC-63X71	33	3	3	±0.2	2550	1200	3.5x10-4				455
GHC-70X77	56	3.5	3	±0.2	2500	1260	4.1x10-5				520

Tags:
