Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO9001
Model Number: GV series
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
OEM/ODM: |
Available |
Material: |
Steel |
Product Type: |
Overrunning Clutch |
Surface Treatment: |
Polishing |
Application: |
Automotive |
Packaging: |
Carton Box |
MOQ: |
1 Piece |
Warranty: |
1 Year |
OEM/ODM: |
Available |
Material: |
Steel |
Product Type: |
Overrunning Clutch |
Surface Treatment: |
Polishing |
Application: |
Automotive |
Packaging: |
Carton Box |
MOQ: |
1 Piece |
Warranty: |
1 Year |

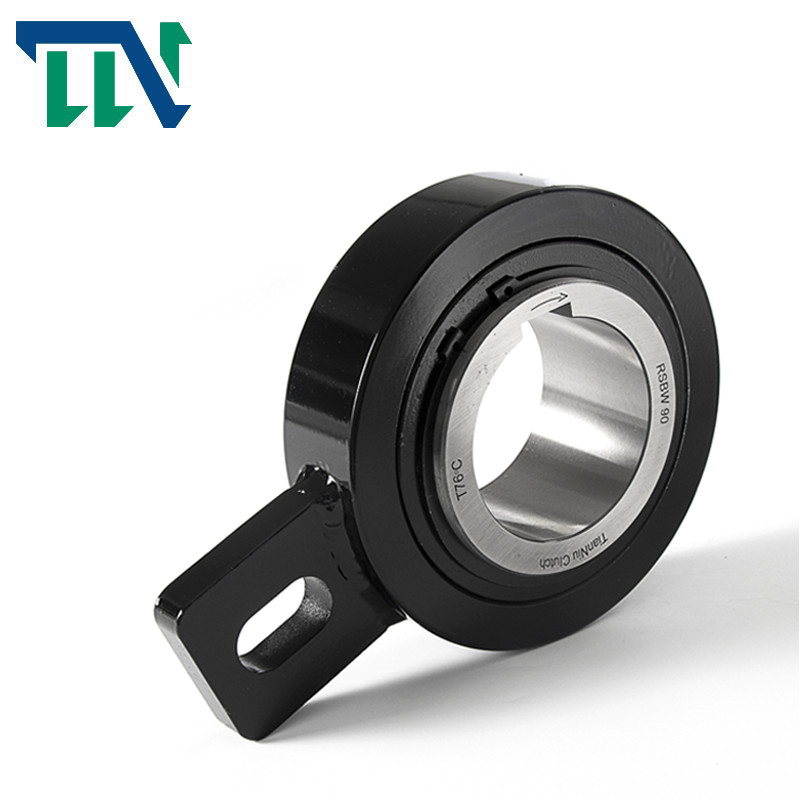

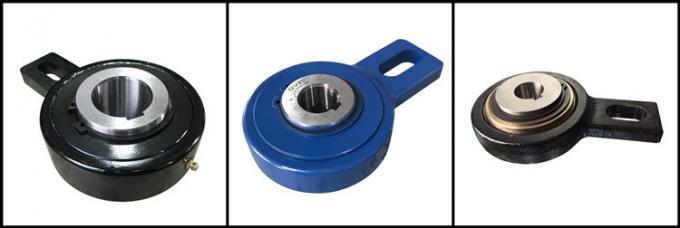

GV50 Backstop Clutch Overrunning Clutch One Direction Cam Clutch Roller Bearing GV Series
Features
Type GV is a roller type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected metallic labyrinth seals.. This design is suitable for use in difficult environments. A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop.
Unit is delivered grease lubricated, ready to install in a horizontal or vertical position. Primarily used as a backstop, the torque capacity is high for a minimum space requirement.
Radial clearance on this bolt should be equal to 1– 3 % of the slot width.The torque arm and the bearings must not be prestressed. The roller design makes the
GV type ideal for light indexing applications.

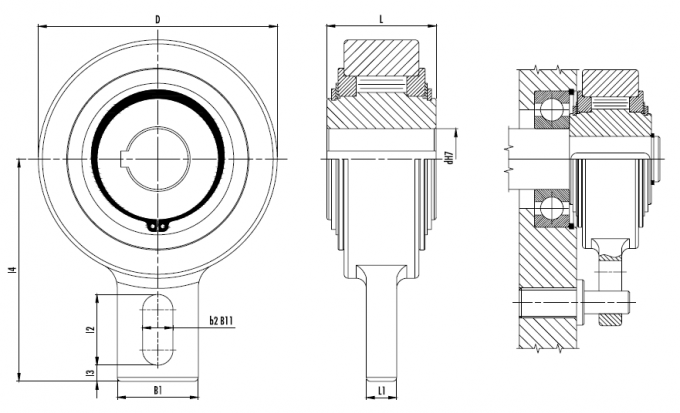

Dimension and Capacity
| Model |
dH7 mm |
D mm |
L mm |
B1 mm |
L1 mm |
b2 mm |
I2 mm |
I3 mm |
I4 mm |
Weight Kg |
Max Speed |
Torque Nm |
Drag Torque Nm |
| GV20 | 20 | 83 | 35 | 40 | 12 | 15 | 35 | 5 | 90 | 1.3 | 450 | 275 | 0.2 |
| GV25 | 25 | 83 | 35 | 40 | 12 | 15 | 35 | 5 | 90 | 1.3 | 450 | 275 | 0.2 |
| GV30 | 30 | 118 | 54 | 40 | 15 | 15 | 35 | 8 | 110 | 3.5 | 320 | 1250 | 1.2 |
| GV35 | 35 | 118 | 54 | 40 | 15 | 15 | 35 | 8 | 110 | 3.4 | 320 | 1250 | 1.2 |
| GV40 | 40 | 118 | 54 | 40 | 15 | 15 | 35 | 8 | 110 | 3.3 | 320 | 2180 | 1.2 |
| GV45 | 45 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.8 | 300 | 2180 | 2.2 |
| GV50 | 50 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.7 | 300 | 2180 | 2.2 |
| GV55 | 55 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.6 | 300 | 2180 | 2.2 |
| GV60 | 60 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.5 | 300 | 2180 | 2.2 |
| GV70 | 70 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.3 | 300 | 2180 | 2.2 |
| GV80 | 80 | 190 | 64 | 80 | 20 | 20 | 40 | 10 | 155 | 8.7 | 200 | 2930 | 3.5 |
| GV90* | 90 | 260 | 90 | 120 | 25 | 30 | 50 | 20 | 220 | 24.5 | 150 | 7250 | 3.5 |
| GV100* | 100 | 260 | 90 | 120 | 25 | 30 | 50 | 20 | 220 | 23.5 | 150 | 7250 | 3.5 |
| GV110* | 110 | 260 | 90 | 120 | 25 | 30 | 50 | 20 | 220 | 22.5 | 150 | 7250 | 3.5 |
| GV120* | 120 | 300 | 110 | 120 | 30 | 30 | 50 | 20 | 240 | 42 | 130 | 11100 | 6.0 |
