Aluminum Bellows Shaft Coupling Bellow Motor Starter Setscrew 16mm 19mm

Brand Name:	Tianniu
Model Number:	GR series
MOQ:	1 pcs
Price:	Negotiable
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Name:

Bellow Shaft Coupling

Structure:

Bellow Shaft Coupling

Material:

Aluminium Steel

Bore Size:

16-55mm

Warranty:

12 Months

Elastomer Materia:

PA66

Surface Treatment:

Anodic Oxidation Treatment

Packaging Details:

Cartons by sea shipping by Airplane

Supply Ability:

10000 per month

Highlight:

aluminium bellow couplings Tianniu

Shaft Couplings bellow motor Starter Tianniu

shaft couplings 16mm Tianniu

Product Description

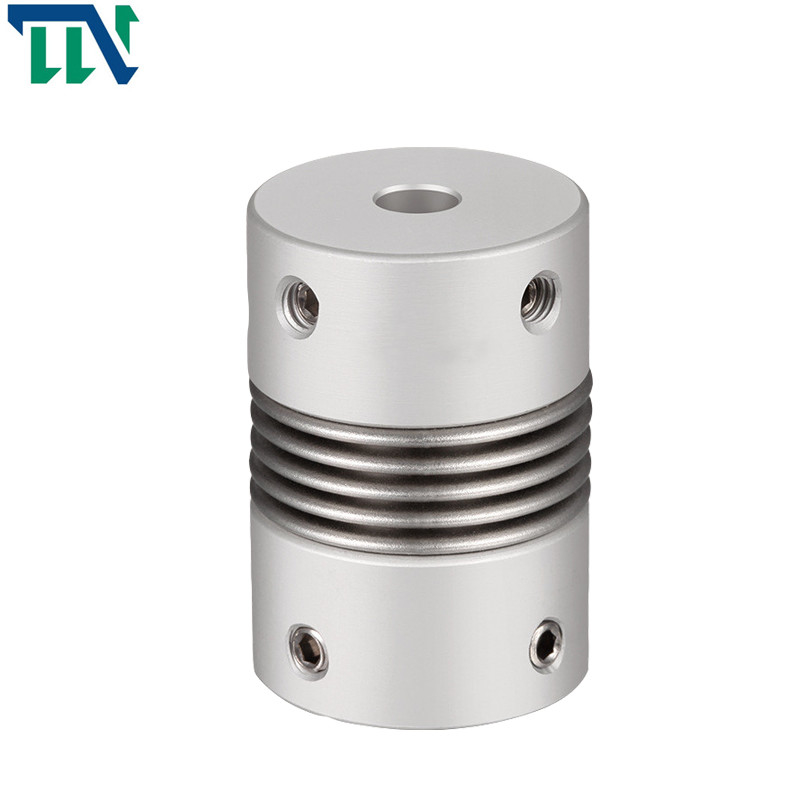

Aluminum alloy bellows setscrew coupling for motor starter

Product introduction

Bellows couplings are used where precise rotation, high speeds, and dynamic motion must be transmitted. They exhibit zero backlash and a high level of torsional stiffness, offering distinct performance advantages. But proper sizing and handling are critical to theirsuccessful implementation.

Products Features

>The material is aluminum alloy, and the middle bellows is made of stainless steel with excellent corrosion resistance
>Laser welding is used between bellows and shaft sleeve, with zero rotation clearance, suitable for forward and reverse rotation
>Bellows structure can effectively compensate radial, angular and axial deviation
>Designed for servo motor stepper motor
>Fastening method of setscrew

Products Parameters

Product Drawings

Aluminum Bellows Shaft Coupling Bellow Motor Starter Setscrew 16mm 19mm 0

Product Dimensions

model parameter	common bore diameter d1,d2	ΦD	L	LI	L2	L3	N	F	M	tightening screw torque (N.M)
GR-16x27	4,5,6,6.35,7,8	16	27	7.5	2	8	13.5	3	M3	0.7
GR-20x32	5,6,6.35,7,8,9,9.525,10,11,12	20	32	7.2	2.8	12	18	3.5	M3	0.7
GR-22.5x34	5,6,6.35,7,8,9,9.525,10,11,12	22.5	34	8.05	2.8	12.3	20.2	4.5	M4	1.7
GR-25x37	6,6.35,7,8,9,9.525,10,11,12	25	37	9.5	3	12	20.2	4.5	M4	1.7
GR-32x42	8,9,10,11,12,12.7,14,15	32	42	8	4	18	27.2	5.5	M5	4
GR-40x51	8,9,9.525,10,11,12,12.7,14,15,16,17,18,19,20	40	51	9.5	6	20	34.5	5.5	M5	4
GR-55x57	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25	55	57	9	6	27	51.9	6.25	M6	7
GR-65x81	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32,35,38	65	81	19.5	7	28	60.5	8.9	M6	7

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	Material of shaft sleeve	surface treatment	weight (g)
GR-16x27	0.8	0.1	2	+ 0.4 -1.2	20000	150	7.9x10-7	High strength aluminum alloy	Anodizing treatment	8
GR-20x32	1.5	0.1	2	+ 0.6 -1.8	18000	220	2.0x10-6			13
GR-22.5x34	1.8	0.15	2	+ 0.6 -1.8	16000	300	6.2x10-6			22
GR-25x37	2.0	0.15	2	+ 0.6 -1.8	15000	330	6.7x10-6			30
GR-32x42	2.5	0.2	2	+ 0.8 -2.5	11000	490	2.0x10-5			53
GR-40x51	6.4	0.3	2	+ 0.8 -2.5	10000	530	2.1x10-5			85
GR-55x57	12	0.3	2	+ 0.8 -2.5	9000	860	2.8x10-5			170
GR-65x81	18	0.2	2	+ 0.7 -2.5	4500	900	2.3x10-5			280
