Flexible Bellows Shaft Coupling Assembly For Servo Motor 2 Inch M6

Name: Flexible Bellows Shaft Coupling Assembly For Servo Motor 2 Inch M6
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: GR55*57
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO 9001

Model Number: GR55*57

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by Airplane

Delivery Time: 3-5 working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            shaft coupling for motor, Bellows Couplings for Servo Motors, 2 inch motor shaft coupling


Name:	Bellow Shaft Coupling	Material:	Aluminium Steel
Bore Size:	16-55mm	Warranty:	12 Months
Elastomer Materia:	PA66	Surface Treatment:	Anodic Oxidation Treatment
Weight:	85G

Name:	Bellow Shaft Coupling
Material:	Aluminium Steel
Bore Size:	16-55mm
Warranty:	12 Months
Elastomer Materia:	PA66
Surface Treatment:	Anodic Oxidation Treatment
Weight:	85G

Description

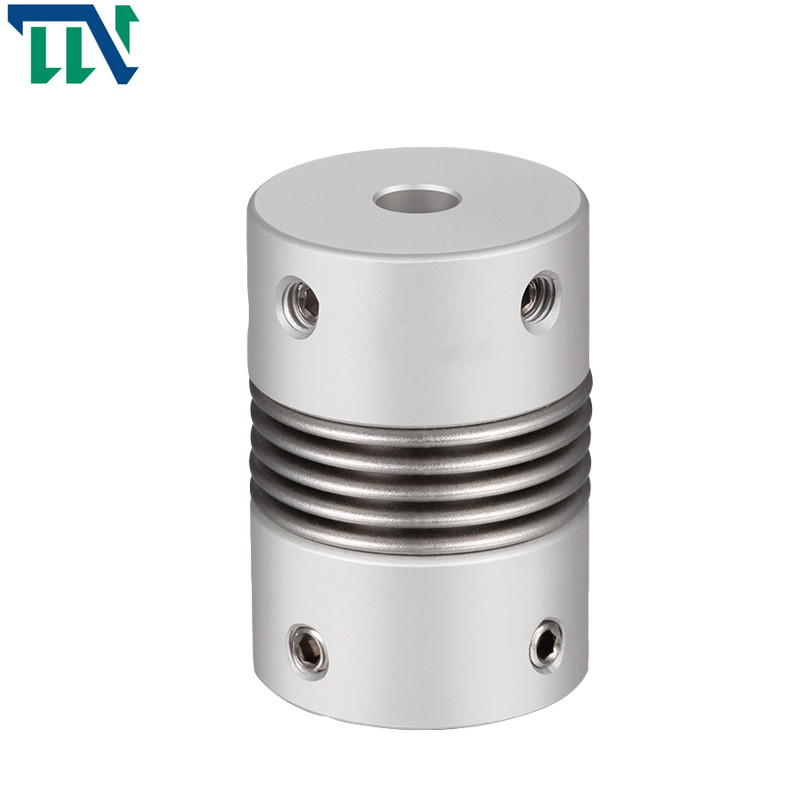

Flexible Bellows Shaft Coupling Assembly For Servo Motor 2 Inch M6

GR 55X57 M6 Bellow Shaft Coupling Aluminum Bellows Setscrew For Servo Motor

Products Features

1. The bellows coupling has no clearance and high sensitivity

2. High elasticity, better protection of equipment

3. It can absorb vibration and compensate radial, angular and axial deviations at the same time

4. Oil stain resistance and strong corrosion resistance

5. Torsional rigidity, clockwise and counterclockwise rotation characteristics are exactly the same

6. Commonly used in CNC machine tools, indexing discs and other industrial machinery

Products Parameters

Product Drawings

Flexible Bellows Shaft Coupling Assembly For Servo Motor 2 Inch M6 0

Product Dimensions

model parameter	common bore diameter d1,d2	ΦD	L	LI	L2	L3	N	F	M	tightening screw torque (N.M)
GR-16x27	4,5,6,6.35,7,8	16	27	7.5	2	8	13.5	3	M3	0.7
GR-20x32	5,6,6.35,7,8,9,9.525,10,11,12	20	32	7.2	2.8	12	18	3.5	M3	0.7
GR-22.5x34	5,6,6.35,7,8,9,9.525,10,11,12	22.5	34	8.05	2.8	12.3	20.2	4.5	M4	1.7
GR-25x37	6,6.35,7,8,9,9.525,10,11,12	25	37	9.5	3	12	20.2	4.5	M4	1.7
GR-32x42	8,9,10,11,12,12.7,14,15	32	42	8	4	18	27.2	5.5	M5	4
GR-40x51	8,9,9.525,10,11,12,12.7,14,15,16,17,18,19,20	40	51	9.5	6	20	34.5	5.5	M5	4
GR-55x57	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25	55	57	9	6	27	51.9	6.25	M6	7
GR-65x81	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32,35,38	65	81	19.5	7	28	60.5	8.9	M6	7

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	Material of shaft sleeve	surface treatment	weight (g)
GR-16x27	0.8	0.1	2	+ 0.4 -1.2	20000	150	7.9x10-7	High strength aluminum alloy	Anodizing treatment	8
GR-20x32	1.5	0.1	2	+ 0.6 -1.8	18000	220	2.0x10-6			13
GR-22.5x34	1.8	0.15	2	+ 0.6 -1.8	16000	300	6.2x10-6			22
GR-25x37	2.0	0.15	2	+ 0.6 -1.8	15000	330	6.7x10-6			30
GR-32x42	2.5	0.2	2	+ 0.8 -2.5	11000	490	2.0x10-5			53
GR-40x51	6.4	0.3	2	+ 0.8 -2.5	10000	530	2.1x10-5			85
GR-55x57	12	0.3	2	+ 0.8 -2.5	9000	860	2.8x10-5			170
GR-65x81	18	0.2	2	+ 0.7 -2.5	4500	900	2.3x10-5			280
