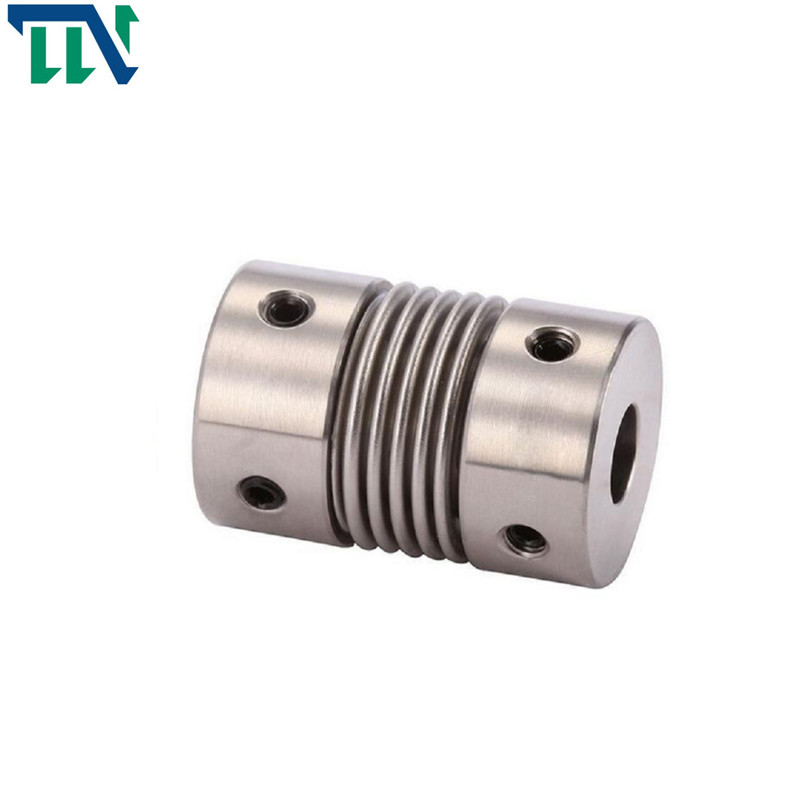

Welded Stainless Steel Bellows Coupling Suppliers bellow joint 25X37mm M4

Name: Welded Stainless Steel Bellows Coupling Suppliers bellow joint 25X37mm M4
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: GR 25*37
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO 9001

Model Number: GR 25*37

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by Airplane

Delivery Time: 3-5 working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    welded bellows coupling, Stainless Steel Bellows Coupling 25X37mm, bellow type coupling


Name:	Bellow Shaft Coupling	Structure:	Bellow Shaft Coupling
Material:	Aluminium Steel	Bore Size:	16-55mm
Warranty:	12 Months	Elastomer Materia:	PA66
Surface Treatment:	Anodic Oxidation Treatment	Weight:	0.013KG

Name:	Bellow Shaft Coupling
Structure:	Bellow Shaft Coupling
Material:	Aluminium Steel
Bore Size:	16-55mm
Warranty:	12 Months
Elastomer Materia:	PA66
Surface Treatment:	Anodic Oxidation Treatment
Weight:	0.013KG

Description

Welded Stainless Steel Bellows Coupling Suppliers bellow joint 25X37mm M4

GR 25X37 M4 Shaft Coupling Aluminum Bellows Setscrew For Machine

Products Parameters

Product Drawings

Welded Stainless Steel Bellows Coupling Suppliers bellow joint 25X37mm M4 0

Product Dimensions

model parameter	common bore diameter d1,d2	ΦD	L	LI	L2	L3	N	F	M	tightening screw torque (N.M)
GR-16x27	4,5,6,6.35,7,8	16	27	7.5	2	8	13.5	3	M3	0.7
GR-20x32	5,6,6.35,7,8,9,9.525,10,11,12	20	32	7.2	2.8	12	18	3.5	M3	0.7
GR-22.5x34	5,6,6.35,7,8,9,9.525,10,11,12	22.5	34	8.05	2.8	12.3	20.2	4.5	M4	1.7
GR-25x37	6,6.35,7,8,9,9.525,10,11,12	25	37	9.5	3	12	20.2	4.5	M4	1.7
GR-32x42	8,9,10,11,12,12.7,14,15	32	42	8	4	18	27.2	5.5	M5	4
GR-40x51	8,9,9.525,10,11,12,12.7,14,15,16,17,18,19,20	40	51	9.5	6	20	34.5	5.5	M5	4
GR-55x57	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25	55	57	9	6	27	51.9	6.25	M6	7
GR-65x81	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32,35,38	65	81	19.5	7	28	60.5	8.9	M6	7

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	Material of shaft sleeve	surface treatment	weight (g)
GR-16x27	0.8	0.1	2	+ 0.4 -1.2	20000	150	7.9x10-7	High strength aluminum alloy	Anodizing treatment	8
GR-20x32	1.5	0.1	2	+ 0.6 -1.8	18000	220	2.0x10-6			13
GR-22.5x34	1.8	0.15	2	+ 0.6 -1.8	16000	300	6.2x10-6			22
GR-25x37	2.0	0.15	2	+ 0.6 -1.8	15000	330	6.7x10-6			30
GR-32x42	2.5	0.2	2	+ 0.8 -2.5	11000	490	2.0x10-5			53
GR-40x51	6.4	0.3	2	+ 0.8 -2.5	10000	530	2.1x10-5			85
GR-55x57	12	0.3	2	+ 0.8 -2.5	9000	860	2.8x10-5			170
GR-65x81	18	0.2	2	+ 0.7 -2.5	4500	900	2.3x10-5			280

Product introduction

Bellows coupling uses corrugated thin-walled pipe (bellows) to directly weld or bond with the two half couplings to transmit motion. The coupling has the advantages of simple structure, small overall dimension, convenient processing and installation and high transmission accuracy. It is mainly used in small power precision machinery and control mechanisms requiring compact structure and high transmission accuracy.

Products Features

1. The bellows coupling has no clearance and high sensitivity

2. High elasticity, better protection of equipment

3. It can absorb vibration and compensate radial, angular and axial deviations at the same time

4. Oil stain resistance and strong corrosion resistance

5. Torsional rigidity, clockwise and counterclockwise rotation characteristics are exactly the same

6. Commonly used in CNC machine tools, indexing discs and other industrial machinery
