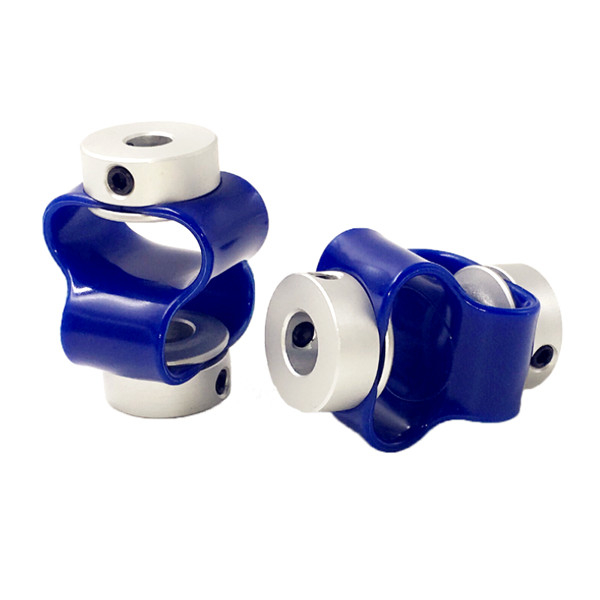

Aluminium Stator Encoder Shaft Coupling 6mm 8mm 10mm 8 Fonts

Name: Aluminium Stator Encoder Shaft Coupling 6mm 8mm 10mm 8 Fonts
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: GB series
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: GB series

Payment & Shipping Terms

Minimum Order Quantity: 2 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by Airplane

Delivery Time: 5-7 working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            aluminium encoder coupling, encoder coupling 10mm, flexible encoder coupling


Model:	GB 8 Fonts Encoder-specific	Material:	Aluminum Alloy
Structure:	8 Fonts Encoder-specific	Bore Size:	34-82mm
Warranty:	12 Months	Elastomer Materia:	PA66
Surface Treatment:	Anodic Oxidation Treatment

Model:	GB 8 Fonts Encoder-specific
Material:	Aluminum Alloy
Structure:	8 Fonts Encoder-specific
Bore Size:	34-82mm
Warranty:	12 Months
Elastomer Materia:	PA66
Surface Treatment:	Anodic Oxidation Treatment

Description

Aluminium Stator Encoder Shaft Coupling 6mm 8mm 10mm 8 Fonts

GB 8 Fonts Encoder-Specific Series Coupling Special Aluminium Alloy Coupling For Encoder

Products Features

Metal diaphragm coupling: suitable for servo motor, encoder, planetary reducer, ball screw, compressor, mixer, papermaking machinery, robot and other mechanical equipment. Plum blossom coupling: suitable for encoder, servo system, motor spindle drive, packaging machinery, machine tool drive, pump and other machinery. Bellows coupling: suitable for encoder, CNC machine tool, positioning system, ball screw, indexing plate and planetary gear reducer. Spring coupling: suitable for rotary encoder, stepping motor, screw rod, etc. Parallel coupling: suitable for the connection of stepping motor, encoder, screw rod, etc. Cross slider coupling: suitable for tachometer, encoder, screw rod, machine tool and other machinery. Universal coupling, rigid coupling.

GB 8 Fonts Encoder-Specific Series Coupling Special Aluminium Alloy Coupling For Encoder has the following advantages:

>Designed for encoder
>Good flexibility, not easy to break
>The elastomer is made of polyurethane, resistant to oil and oxidation

Products Parameters

Aluminium Stator Encoder Shaft Coupling 6mm 8mm 10mm 8 Fonts 0

model parameter	common bore diameter d1,d2	ΦD	L	LP	S	F	M	tightening screw torque (N.M)
GB-15X24	3,4,5,6,6.35,7,8	15	24	20	1.8	2.5	M3	0.7
GB-15x32	3,4,5,6,6.35,7,8	15	32	20	1.8	2.5	M3	0.7
GB-18x28	4,5,6,6.35,7,8,9,10	18	28	25	1.8	3.1	M4	1.7
GB-18x38	4,5,6,6.35,7,8,9,10	18	38	25	1.8	3.1	M4	1.7

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	Material of shaft sleeve	Material of shrapnel	surface treatment	weight (g)
GB-15X24	0.5	1	2	+ 2-5	8000	15	4.5x10-4	High strength aluminum alloy	PU	Anodizing treatment	8
GB-15X32	0.5	1	2	+ 2-5	8000	15	4.5x10-4				8
GB-18X28	0.8	1	3	+ 2-5	6000	20	5.6x10-4				13
GB-18X38	0.8	1	3	+ 2-5	6000	20	5.6x10-4				13
