Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO-9001
Model Number: GM series
Payment & Shipping Terms
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by Airplane
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
Model: |

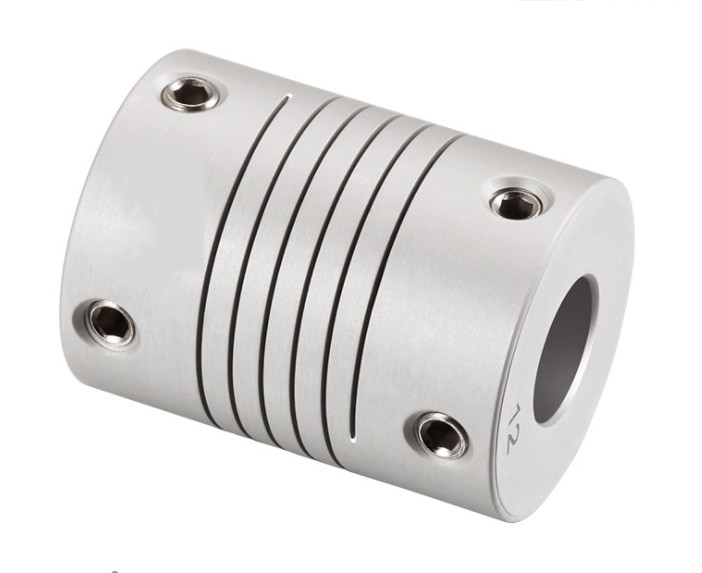

GM Screw Thread Setscrew Coupling Winding Coupling |
Material: |
Aluminum Alloy |
Bore Size: |
12-50mm |
Warranty: |
12 Months |
Elastomer Materia: |
PA66 |
Surface Treatment: |
Anodic Oxidation Treatment |
Model: |
GM Screw Thread Setscrew Coupling Winding Coupling |
Material: |
Aluminum Alloy |
Bore Size: |
12-50mm |
Warranty: |
12 Months |
Elastomer Materia: |
PA66 |
Surface Treatment: |
Anodic Oxidation Treatment |
Products Features
Shaft Couplings are divided into the following most common categories according to type:
Metal diaphragm coupling: suitable for servo motors, encoders, planetary reducers, ball screws, compressors, mixers, paper machinery, robots and other mechanical equipment. Plum-shaped coupling: suitable for encoders, servo systems, motor spindle drives, packaging machinery, machine tool drives, pumps and other machinery. Bellows coupling: suitable for encoders, CNC machine tools, positioning systems, ball screws, indexing discs, planetary gear reducers. Spring coupling: suitable for rotary encoders, stepper motors, screw rods, etc. Parallel coupling: suitable for connection of stepper motors, encoders, screw rods, etc. Cross slide coupling: suitable for tachometer, encoder, screw, machine tool and other machinery. Universal coupling, rigid coupling.
>Integrated structure, the overall use of high-strength aluminum alloy materials
>Elastic action compensates radial, angular and axial deviation
>Spring design, with buffer effect
>Special design for encoder, micro motor
>Fastening method of set screw
Products Parameters
| model parameter | common bore diameter d1,d2 | ΦD | L | L1 | L2 | F | M | tightening screw torque (N.M) |
| GM-12xl8.5 | 2,3,4,5,6,6.35 | 12 | 18.5 | 1.8 | 0.4 | 3.5 | M3 | 0.7 |
| GM-15.5x21 | 3,4,5,6,6.35,7 | 15.5 | 21 | 2 | 0.4 | 3.3 | M3 | 0.7 |
| GM-15.5x23 | 3,4,5,6,6.35,7 | 15.5 | 23 | 2 | 0.4 | 3.6 | M3 | 0.7 |
| GM-19.1x19.1 | 4,5,6,6.35,7,8 | 17.5 | 23 | 2 | 0.4 | 3.6 | M4 | 1.7 |
| GM-17.5x23 | 4,5,6,6.35,7,8,10 | 19.1 | 19.1 | 2 | 0.4 | 3 | M4 | 1.7 |
| GM-19.5x24.5 | 6,6.35,7,8,9,9.525,10 | 19.5 | 24.5 | 2 | 0.4 | 3.3 | M4 | 1.7 |
| GM-25x32 | 5,6,6.35,7,8,9,9.525,10,11,12,12.7 | 25 | 32 | 2 | 0.4 | 3.7 | M4 | 1.7 |
| GM-25.4x25.4 | 6,6.35,7,8,9,9.525,10,11,12,12.7 | 25.4 | 25.4 | 2 | 0.4 | 3.7 | M4 | 1.7 |
| GM-28.6x28.6 | 8,9,9.525,10,11,12,12.7,14 | 28.6 | 28.6 | 2.75 | 0.4 | 4.2 | M4 | 1.7 |
| GM-32x32 | 8,9,9.525,10,11,12,12.7,14,15,16,17,18 | 32 | 32 | 2.75 | 0.4 | 5.5 | M4 | 1.7 |
| GM-32x41 | 8,9,9.525,10,11,12,12.7,14,15,16,17,18 | 32 | 41 | 2.75 | 0.4 | 6.8 | M4 | 1.7 |
| GM-38.7x38.1 | 8,10,11,12,12.7,14,15,16,17,18,19,20,22 | 38.1 | 38.1 | 3 | 0.4 | 5.2 | M5 | 4 |
| GM-42x50 | 12,12.7,14,15,16,17,18,19,20,22,24,25,28 | 42 | 50 | 3.5 | 0.4 | 8.5 | M6 | 7 |
| GM-50x50 | 12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32 | 50 | 50 | 3.5 | 0.5 | 8.5 | M6 | 7 |
| model parameter | Rated torque (N.M)* |
allowable eccentricity (mm)* |
allowable deflection angle (°)* |
allowable axial deviation (mm)* |
maximum speed rpm |
static torsional stiffness (N.M/rad) |
moment of inertia (Kg.M2) |
Material of shaft sleeve | surface treatment | weight (g) |
| GM-12xl8.5 | 0.3 | 0.15 | 3 | ±0.2 | 30000 | 40 | 8.0x10-7 | High strength aluminum alloy | Anodizing treatment | 4 |
| GM-15.5x21 | 0.5 | 0.15 | 3 | ±0.2 | 25000 | 80 | 2.8x10-7 | 7.7 | ||
| GM-15.5x23 | 0.5 | 0.15 | 3 | ±0.2 | 25000 | 50 | 2.9x10-7 | 9.3 | ||
| GM-17.5x23 | 0.6 | 0.15 | 3 | ±0.2 | 25000 | 85 | 3.5x10-7 | 12.7 | ||
| GM-19.1x19.1 | 0.9 | 0.15 | 3 | ±0.2 | 24000 | 130 | 7.2x10-7 | 11.6 | ||
| GM-19.5x24.5 | 1 | 0.15 | 3 | ±0.2 | 19000 | 150 | 8.1x10-7 | 16 | ||
| GM-25x32 | 2 | 0.15 | 3 | ±0.2 | 15000 | 300 | 3.5x10-7 | 32 | ||
| GM-25.4x25.4 | 2 | 0.15 | 3 | ±0.2 | 14000 | 360 | 2.3x10-6 | 26 | ||
| GM-28.6x28.6 | 2 | 0.15 | 3 | ±0.2 | 14000 | 380 | 2.3x10-6 | 39 | ||
| GM-32x32 | 3 | 0.15 | 3 | ±0.2 | 13000 | 380 | 2.5x10-6 | 57 | ||
| GM-32x41 | 4 | 0.15 | 3 | ±0.2 | 12000 | 450 | 9.6x10-6 | 65 | ||
| GM-38.7x38.1 | 6.5 | 0.15 | 3 | ±0.2 | 9500 | 400 | 2.7x10-5 | 97 | ||
| GM-42x50 | 8 | 0.15 | 3 | ±0.2 | 9000 | 500 | 7.2x10-3 | 185 | ||
| GM-50x50 | 20 | 0.15 | 3 | ±0.2 | 8000 | 785 | 8.1x10-5 | 220 |
