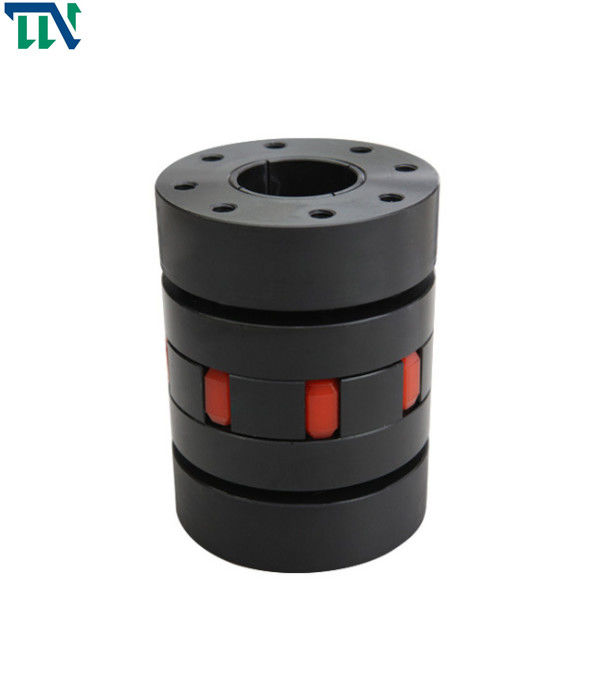

Electric Motor Coupling Rubber Flexible Shaft Coupling Clamp XL Star Type

XL star type flexible shaft coupling rubber coupling

Products Features

The Curved Jaw couplings can be utilized in many applications and serve as an all-purpose coupling. The basic design of the Curved Jaw allows for a higher torque capacity in a compact design. The curved tooth has a greater contact area which gives it the high torque capacity, and reduces edge pressure. It will accommodate axial, radial and angular shaft misalignment.The hubs are produced from a variety of materials including: aluminum, gray iron,Steel and stainless steel. The spider elements are available in various durometer options in Urethane & Hytrel. The spiders can perform under normal duty cycle conditions to heavy duty cycles which include shock loading and can minimize torsional vibrations in the system.

+

The rubber body of rubber flexible shaft coupling is connected with cylinder bushing and flange bushing respectively with bolts in radial and axial direction, and is driven through the rubber body.

> The polyurethane elastomer is limited by convex claw block, which can avoid the internal deformation and external deformation caused by centrifugal force.
> The concave surface with large claw makes the surface pressure on involute tooth very small.
> Even if the tooth is overloaded, the tooth will not wear or deform.
> It can compensate the displacement between the two transmission shafts well, and it is widely used.

Products Parameters
