Model Number: |
Z5 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Weight: |
0.29-6.7KG |
Outer Diameter: |
47-200 |
Thickness (mm): |
37-77 |
Bore Size: |
55-80 |
Torque (kNm: |
145-1600 |
Model Number: |
Z5 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Weight: |
0.29-6.7KG |
Outer Diameter: |
47-200 |
Thickness (mm): |
37-77 |
Bore Size: |
55-80 |
Torque (kNm: |
145-1600 |

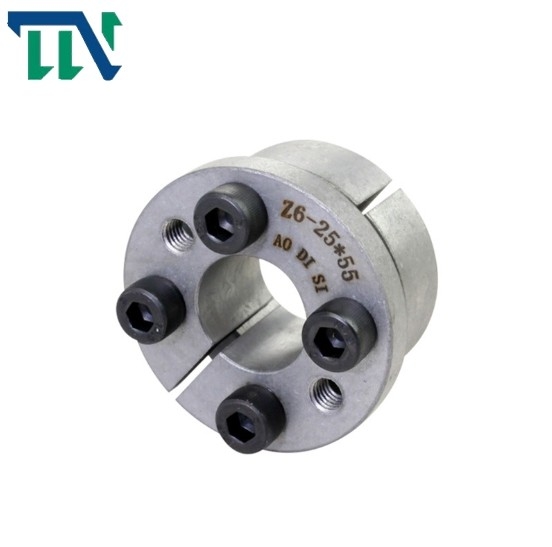

Z6 Lock Assembles Adjustment Screw With Lock Assembly Power Lock
Products Features
The Locking Assembly connection can withstand heavy loads. Its structure can be made into various styles. In order to meet the installation load requirements, one Locking Assembly is not enough, and multiple series can be used in combination.
The Locking Assembly connection is a precise, gap-free, keyless connection. Reliably eliminates the disadvantages such as stress concentration and rolling keys caused by key transmission. It has the advantages of convenient and quick positioning, long service life and not easy to corrode. There is no relative sliding during work and no wear. It is especially suitable for use in various high-precision transmission and servo mechanisms
Changzhou TIANNIU Transmission Equipment Co., Ltd (Changzhou TIANNIU Clutch Factory) is a professional one way clutch bearing supplier, the primary products are micro electromagnetic clutch, torque limiter coupling, sliding shaft coupling, flexible propeller shaft coupling, locking assembly and shaft couplings, etc.
We have been in Sprag Clutch Bearing and clutch one way bearing industry for more than 10years, persisting in the business principle of products tailored to requirements from clients.We service through listening to our customers, applying innovation and building with craftsmanship to meet all their needs
Products Parameters
|
fundamental dimensions |
internal hexa- gon headed bolt |
Rated load |
Pf (N/mm2) |
MA
(N·m) |
G
(kg) |
||||||||
| d | D | L4 | L3 | L2 | D1 | L1 |
sizes |
Qty |
Ft (kN) |
Mt (kN·m) |
|||
| mm | |||||||||||||
| 14 | 18 | 0.127 | 208 | 25 | 0.37 | ||||||||
| 16 | 18 | 0.142 | 181 | 25 | 0.39 | ||||||||
| 18 | 18 | 0.157 | 161 | 25 | 0.41 | ||||||||
| 19 | 18 | 0.165 | 152 | 25 | 0.42 | ||||||||
|
20 22 |
55 | 17 | 30 | 22 | 62 | 38 | M6 | 6 |
18 25.5 |
0.172 0.285 |
145 186 |
25 35 |
0.44 0.45 |
| 24 | 25.5 | 0.307 | 170 | 35 | 0.46 | ||||||||
| 25 | 25.5 | 0.315 | 163 | 35 | 0.47 | ||||||||
| 28 | 31.5 | 0.435 | 175 | 41 | 0.48 | ||||||||
| 30 | 31.5 | 0.472 | 163 | 41 | 0.50 | ||||||||
| 24 | 37.4 | 0.440 | 244 | 30 | 0.46 | ||||||||
| 25 | 37.4 | 0.460 | 234 | 30 | 0.48 | ||||||||
| 28 | 43.6 | 0.600 | 243 | 35 | 0.51 | ||||||||
|
30 32 |
65 | 17 | 30 | 22 | 72 | 38 | M8 | 5 |
43.6 43.6 |
0.640 0.690 |
227 213 |
35 35 |
0.55 0.56 |
| 35 | 52.5 | 0.910 | 234 | 41 | 0.58 | ||||||||
| 38 | 52.5 | 0.990 | 216 | 41 | 0.61 | ||||||||
| 40 | 52.5 | 1.050 | 205 | 41 | 0.62 | ||||||||
| 30 | 52.4 | 0.780 | 232 | 30 | 0.73 | ||||||||
| 32 | 52.4 | 0.830 | 217 | 30 | 0.76 | ||||||||
| 35 | 61.0 | 1.060 | 232 | 35 | 0.82 | ||||||||
| 38 | 61.0 | 1.150 | 214 | 35 | 0.89 | ||||||||
| 40 | 80 | 20 | 33 | 25 | 87 | 41 | M8 | 7 | 61.0 | 1.220 | 203 | 35 | 0.92 |
| 43 | 73.5 | 1.540 | 233 | 41 | 0.96 | ||||||||
| 45 | 73.5 | 1.650 | 217 | 41 | 0.99 | ||||||||
| 48 | 73.5 | 1.760 | 203 | 41 | 1.00 | ||||||||
| 50 | 73.5 | 1.830 | 195 | 41 | 1.02 | ||||||||
