Locking Device Z19 Keyless Clamping Locking Assembly Locking Shaft

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: Z19

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-7working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Locking Shaft Locking Assembly, Z19 Locking Assembly, Keyless Clamping Locking Assembly


Model Number:	Z19 Locking Assembly	Material:	GCr15 Bearing Steel
Weight:	4.5-179.5Kg	Outer Diameter:	145-710mm
Thickness (mm):	72-197mm	Bore Size:	100-600
Torque (kNm:	3.9-470

Model Number:	Z19 Locking Assembly
Material:	GCr15 Bearing Steel
Weight:	4.5-179.5Kg
Outer Diameter:	145-710mm
Thickness (mm):	72-197mm
Bore Size:	100-600
Torque (kNm:	3.9-470

Description

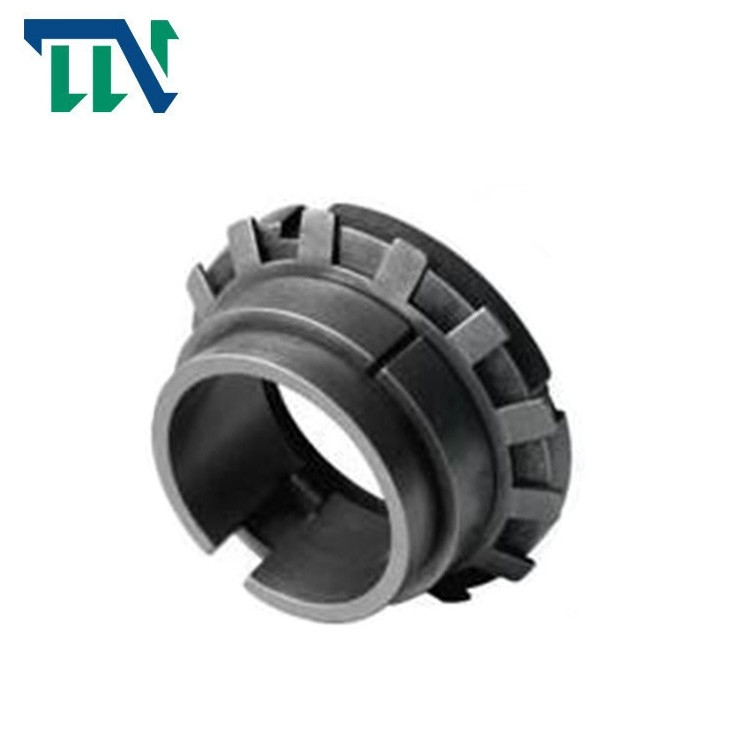

Locking Device Z19 Keyless Clamping Locking Assembly Locking Shaft

Z19 Keyless Locking Device Power Lock Assembly

Products Features

Locking assembly is an advanced basic component widely used in mechanical connection under heavy load in the world. In the connection of wheel and shaft, it is a keyless connection device that realizes load transmission by tightening high-strength bolts to make the pressure and friction produced between the containment surfaces.

Good interchangeability and easy disassembly. When dismantling, first loosen the compression screw, and then use the ejector screw to push out the unloading to release the connection state and separate the Locking Assembly from the connection parts.

The Locking Assembly connection can withstand heavy loads. Its structure can be made into various styles. In order to meet the installation load requirements, one Locking Assembly is not enough, and multiple series can be used in combination

With the development of new energy, wind power generation is widely promoted in China and has become an emerging industry. As an important part of the fan, the expansion sleeve is widely matched on the speed reducer and yaw reducer of the fan

Products Parameters

基本尺寸 fundamental dimensions					螺母 nut		额定负荷 Rated load		Pf (N/mm2)	G (kg)
d	D	E	H	B	规格 sizes	M_A N·m	F_t (kN)	M_t (N·m)
mm					规格 sizes	M_A N·m	F_t (kN)	M_t (N·m)
14	25				M20×1		5.10	38	200	0.04
15	25				M20×1		5.50	41	185	0.05
16	25	32	16.5	6.5	M20×1	95	5.45	43	174	0.06
17	26				M20×1		5.50	47	164	0.07
18	26				M22×1		5.40	49	155	0.08
18	30							58	185	0.09
19	30	38	18	6.5	M25×1.5	160	6.60	62	176	0.10
20	30	38	18	6.5	M25×1.5	160	6.60	66	167	0.11
22	32							73	152	0.12
24	35				M30×1.5		8.75	105	185	0.13
25	35	45	18	6.5	M30×1.5	220	8.80	110	178	0.14
28	36				M32×1.5		8.55	120	159	0.15
28	40			7	M32×1.5			149	188	0.17
30	40	52	19.5	8	M35×1.5	340	10.60	160	164	0.18
32	42			8	M35×1.5			170	154	0.19
35	45				M40×1.5			230	153	0.21
36	45	58	21.5	8	M40×1.5	480	13.10	240	149	0.23
38	48	58	21.5	8	M42×1.5	480	13.10	250	141	0.24
38	50				M42×1.5			250	141	0.25
40	50		24.5		M42×1.5		15.50	310	124	0.28
40	52	65	25.5	10	M45×1.5	680	15.50	310	120	0.30
42	55		25.5		M48×1.5		15.20	320	114	0.31
45 45	55 57	70	25.5	10	M50×1.5	870	17.70	400	122	0.35 0.36
48	60							500	135	0.38
50	60	75	25.5	10	M55×2	970	20.80	520	130	0.40
50	62							520	130	0.42

基本尺寸 fundamental dimensions					螺 nu	母 t	额定 Rated		负荷 load	Pf (N/mm2)	G (kg)
d	D	E	H	B	规格 sizes	M_A N·m	F_t (kN)	M_t (N·m)
mm					规格 sizes	M_A N·m	F_t (kN)	M_t (N·m)
14	25		30		M20×1			64		85	0.07
15	25		30		M20×1			70		80	0.08
16	25	32	30		M20×1	95	9.1	73		75	0.09
17 18	25 30		32 32	20	M22×1 M22×1			80 83		70 65	0.10 0.11
19 20	30	38	32		M25×1.5 M25×1.5	160	11.0	105 112		75 70	0.12 0.13
22								163		70	0.14
24	35	45	36	25	M30×1.5	220	14.5	178		65	0.15
25								185		60	0.17
28 30	40	52	42		M35×1.5	340 340	14.5 17.5	250 270		55 50	0.19 0.20
32	42	52			M36×1.5	340		350		60	0.22
32	45	58	44		M40×1.5	480	21.5	350		60	0.25
35	45	58			M40×1.5	480		390		55	0.27
38 40	50	65	45	30	M45×1.5	680	26.0	500 520		60	0.30 0.32
45	55	70			M50×1.5	870	30.0	680			0.33
48 50	60 60	75 75	46		M55×2 M55×2	970 970	35.0 35.0	840 880		60	0.34 0.36
55	65	80			M60×2	1100	37.5	1030			0.38
60	70	85	52		M65×2	1300	45.0	1360		65	0.42

Locking Device Z19 Keyless Clamping Locking Assembly Locking Shaft 0
