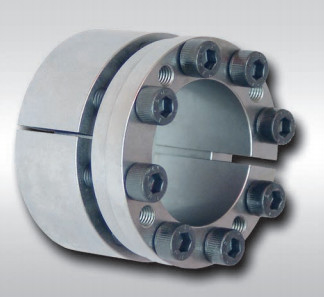

Rlk130 Keyless Locking Shaft Coupling Assembly Power Lock

Name: Rlk130 Keyless Locking Shaft Coupling Assembly Power Lock
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: RLK130
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: RLK130

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-7working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Rlk130  Locking Assembly, keyless locking shaft coupling Assembly, Rlk130 keyless locking shaft coupling


Model Number:	RLK130 Locking Assembly	Material:	GCr15 Bearing Steel
Weight:	0.4-9.5	Outer Diameter:	47-200mm
Thickness (mm):	24-140mm	Bore Size:	20-150mm
Torque (kNm:	30-380

Model Number:	RLK130 Locking Assembly
Material:	GCr15 Bearing Steel
Weight:	0.4-9.5
Outer Diameter:	47-200mm
Thickness (mm):	24-140mm
Bore Size:	20-150mm
Torque (kNm:	30-380

Description

Rlk130 Keyless Locking Shaft Coupling Assembly Power Lock

RLK130 Lock Nut Bearing Standard Shaft Locking Device

Products Features

Locking assembly is an advanced basic component widely used in mechanical connection under heavy load in the world. In the connection of wheel and shaft, it is a keyless connection device that realizes load transmission by tightening high-strength bolts to make the pressure and friction produced between the containment surfaces

Selecting locking assembly should meet the following requirements:

A. Transmission torque: MT ≥ M

B. Bearing axial force: ft ≥ FX

C. Transmission force: ft ≥ f2x + (MD / 2x10-3) 2

D. Bearing radial force: Pt ≥ FR / d1x103, where:

M ￣ torque to be transmitted, kn · m;

FX ￣ axial force to be borne, kn;

FT ￣ radial force to be borne, kn;

Rated torque of MT ￣ locking assembly, kn · m;

Rated axial force of FT ￣ locking assembly; KN;

d. |inner diameter and inner ring width of locking assembly, mm;

Pressure on the joint surface between Pt ￣ locking assembly and shaft, N / mm2

Model		RLK130 Power Locking Assembly
Pressure on Shaft (N/mm2)		174-309
Pressure on Hub (N/mm2)		112-184
Rated Load (kN.m)	Force	53-640
	Torque	0.53-57.5
Inner Race Size (mm)		20-180
Outer Race Size (mm)		47-235
Thickness (mm)		48-90
Weight (Kg)		0.4-11

Products Parameters

基本尺寸 fundamental dimensions					内六角螺钉internal hexagon headed bolt		额定负荷 Rated load		Pf (N/mm2)	M_A (N·m)	G (kg)
d	D	L	L₁	L₂	规格 sizes	数量 Qty	F₁ (kN)	M_t (kN·m)
mm					规格 sizes	数量 Qty	F₁ (kN)	M_t (kN·m)
20	47	37	31	21.7	M6	4	30	0.30	287	17	0.27
22	47					4	30	0.33	260		0.29
25	50					5	35	0.44	287		0.30
28	55							0.49	256		0.36
30	55							0.53	239		0.34
35	60					6	45	0.81	246		0.38
40	65						45	0.94	215		0.41
45	75	46	38	25.3	M8		80	1.86	283	41	0.70
50	80						80	2.07	255		0.76
55	85					8	90	2.54	270		0.82
60	90						90	2.77	247		0.88
65	95						105	3.58	261		0.94
70	110	60	50	33.4	M10		140	5.10	244	83	2.10
75	115							5.46	228		2.20
80	120							5.85	214		2.30
85	125						175	7.45	230		2.40
90	130						175	7.90	217		2.60
95	135					10	205	9.90	257		2.70
100	145	68	58	40.8			220	11.00	192		3.70
105	150							11.55	210		3.90
110	155							12.10	175		4.00
120	165					12	260	15.70	192		4.30
125	170				M12	10	320	17.50	189	145	4.80
130	180							20.70	188		5.90
140	190							22.50	175		6.30
150	200	77	65	45.4		12	380	28.50	196		6.70
