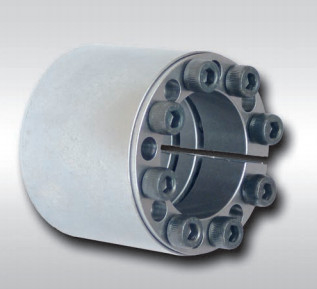

Cone Clamping Elements Rlk 110 Rlk 200 RLK402 Lock Nut Bearing Device

Name: Cone Clamping Elements Rlk 110 Rlk 200 RLK402 Lock Nut Bearing Device
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: RLK402
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: RLK402

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-7working days

Supply Ability: 1000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            cone clamping elements rlk 200, cone clamping elements rlk 110, cone clamping device


Model Number:	RLK402 Locking Assembly	Material:	GCr15 Bearing Steel
Weight:	0.42-34.3KG	Outer Diameter:	55-326mm
Thickness (mm):	24-140mm	Bore Size:	25-260mm
Torque (kNm:	0.84-240

Model Number:	RLK402 Locking Assembly
Material:	GCr15 Bearing Steel
Weight:	0.42-34.3KG
Outer Diameter:	55-326mm
Thickness (mm):	24-140mm
Bore Size:	25-260mm
Torque (kNm:	0.84-240

Description

Cone Clamping Elements Rlk 110 Rlk 200 RLK402 Lock Nut Bearing Device

RLK402 Lock Nut Bearing Standard Shaft Locking Device

Products Introduction

instructions for use

1. Please read this instruction carefully before use;

2. Confirm whether the current product is consistent with the model of the configured machinery;

3. Molybdenum or silicon containing additives must not be used in the components of locking assembly;

4. The specified performance level of this product is 1.2 Grade 9 bolts shall be replaced by other bolts;

5. This product has no center positioning function. If you need this function, please design it on the wheel hub by yourself;

6. Do not knock forcibly during the installation of locking assembly;

7. The selection tolerance of shaft and hub is H8 / H8

Centres the hub to the shaft. Double slot for high centering accuracy

Can be assembled multiple times

Highest transmissible torque

For heavy duty applications

No axial displacement between hub and shaft during clamping procedure

Highest machining quality

Transmissible torque of 50 500 Nm up to 1 701 000 Nm

For shaft diameters between 130 mm and 600 mm

Products Features

Model		RLK402/Z12 Locking Assembly
Pressure on Shaft (N/mm2)		252-136
Pressure on Hub (N/mm2)		88-130
Rated Load (kN.m)	Force	55-2400
	Torque	0.7-362.3
Inner Race Size (mm)		25-300
Outer Race Size (mm)		50-375
Thickness (mm)		51-197
Weight (Kg)		0.5-49.7

Products Parameters

fundamental dimensions					internal hexagon headed bolt		Rated load		Pf (N/mm2)	M_A (N·m)	G (kg)
d	D	I	L	L₁	sizes	Qty	F_t (kN)	M_t (kN·m)
mm					sizes	Qty	F_t (kN)	M_t (kN·m)
25								0.84	297		0.42
28	55	32	40	46	M6	6	67	0.94	265	17	0.44
30								1.00	248		0.47
35	60			60	M6		74	1.30	165	17	1.0
40	75	44	54	62	M8	7	145	2.90	282	41	1.0
45	75			62	M8		145	3.26	251	41	1.2
50	80					8	165	4.15	200		1.4
55 60	85 90	56	64	72	M8	9 10	186 207	5.15 6.20	205 202	41	1.6 1.7
65	95					10	207	6.75	187		1.9
70	110					10	329	11.5	223		3.1
80	120	70	78	88	M10	11	362	14.5	215	83	3.5
90	130					12	390	17.8	208		3.8
100	145					14	527	26.3	200		6.1
110	155	90	100	112	M12	17	575	31.8	198	145	6.2
120	165					18	670	40.4	212		7.2
130	180					16	759.0	49	180		11.1
140 150	190 200	104	116	130	M14	18 19	842.8 896.8	59 67	186 185	230	11.8 12.6
160	210					20	950.0	76	183		13.4
170	225					19	1223.5	104	172		19.6
180	235					20	1288.8	116	172		20.6
190	250					21	1363.0	129	172		23.8
200	260	134	146	162	M16	22	1427.5	143	172	355	24.9
220	285					24	1581.8	174	172		29.6
240	305					26	1725.0	207	172		31.9
260	325					28	1846.0	240	170		34.3
