Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO-9001
Model Number: TLK133 series
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-7working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Model Number: |
TLK133 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Bore Size: |
20-65mm |
Weight: |
0.25-0.89 |
Outer Diameter: |
47-95mm |
Size: |
M6 M8 |
Torque0.014-15.7 (kNm: |
30-100 |
Model Number: |
TLK133 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Bore Size: |
20-65mm |
Weight: |
0.25-0.89 |
Outer Diameter: |
47-95mm |
Size: |
M6 M8 |
Torque0.014-15.7 (kNm: |
30-100 |

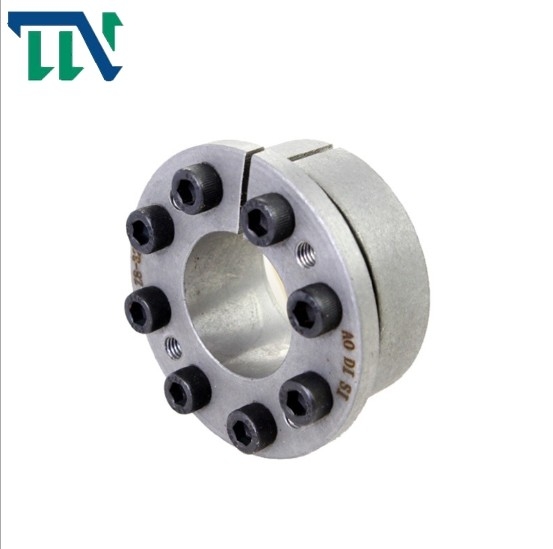

TLK133 Series Lock Nut Bearing Standard Shaft Locking Device
Prodcucts Introduction
Locking Assembly is a new type of connection. It relies on tightening high-strength bolts to generate positive pressure between the Locking assembly and the shaft or between the housing surface, which is accompanied by friction and a keyless connection device that realizes load transmission. It has many unique advantages and characteristics compared with the traditional mechanical connection method of general interference without bond and bond
instructions for use
1. Please read this instruction carefully before use;
2. Confirm whether the current product is consistent with the model of the configured machinery;
3. Molybdenum or silicon containing additives must not be used in the components of locking assembly;
4. The specified performance level of this product is 1.2 Grade 9 bolts shall be replaced by other bolts;
5. This product has no center positioning function. If you need this function, please design it on the wheel hub by yourself;
6. Do not knock forcibly during the installation of locking assembly;
7. The selection tolerance of shaft and hub is H8 / H8
Products Features
| Model | RLK603 Locking Assembly | |
| Rated Load (kN.m) | Force | 5-3500 |
| Torque | 0.025-517 | |
| Inner Race Size (mm) | 14-360 | |
| Outer Race Size (mm) | 38-590 | |
| Thickness (mm) | 15-175 | |
| Weight (Kg) | 0.1-186 | |
Products Parameters
|
fundamental dimensions |
internal hexagon headed bolt |
Rated load |
Pf (N/mm2) |
MA
(N·m) |
G
(kg) |
|||||||
| d | D | L | L0 | L1 | L2 |
sizes |
Qty |
F1 (kN) | Mt (kN·m) | |||
| mm | ||||||||||||
| 20 |
47 |
17 |
22 |
28 |
34 |
M6×20 |
5 |
30 |
0.29 | 220 |
17 |
0.25 |
| 22 | 0.32 | 200 | 0.26 | |||||||||
| 24 |
50 |
0.37 | 200 | 0.27 | ||||||||
| 25 |
6 |
36 |
0.45 | 215 | 0.28 | |||||||
| 28 |
55 |
0.5 | 200 | 0.32 | ||||||||
| 30 | 0.54 | 219 | 0.34 | |||||||||
| 32 |
60 |
8 |
48 |
0.77 | 215 | 0.35 | ||||||
| 35 | 0.84 | 190 | 0.37 | |||||||||
| 38 |
65 |
0.91 | 195 | 0.38 | ||||||||
| 40 | 0.96 | 190 | 0.40 | |||||||||
| 45 | 75 |
20 |
25 |
33 |
41 |
M8×25 |
7 |
77 |
1.75 | 230 |
41 |
0.63 |
| 50 | 80 | 1.93 | 210 | 0.68 | ||||||||
| 55 | 85 |
8 |
88 |
2.45 | 215 | 0.73 | ||||||
| 60 | 90 | 2.7 | 190 | 0.78 | ||||||||
| 63 |
95 |
9 |
100 |
3.18 | 205 | 0.83 | ||||||
| 65 | 3.25 | 200 | 0.89 | |||||||||
