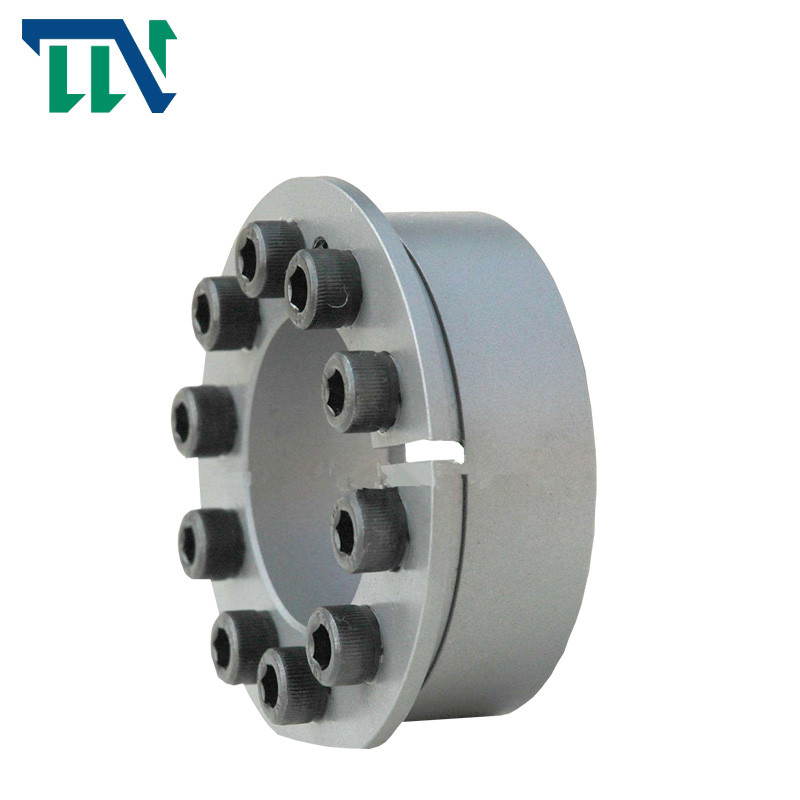

TLK 134 Locking Assembly Self-Centering Clamping Device Metallurgical Machinery

TLK 134 Locking Assembly Self-Centering Clamping For Metallurgical Machinery

TLK134 Series  Lock Nut Bearing Standard Shaft Locking Device

Products Introduction

Tianniu started to develop all kinds of expansion sleeves of this standard in 1987.

After nearly 20 years of practice, it has completed the development of all the varieties of this standard. And promoted to textile, packaging, food, light industry, metallurgy, papermaking, printing, machine tools, machining centers, forging machine tools, and metallurgical machinery and general machinery and other machinery, took a good reputation, and promoted the machinery industry products. skill improved. And according

to special user needs, the development of non-standard expansion joint sleeve.

Selecting locking assembly should meet the following requirements:

A. Transmission torque: MT ≥ M

B. Bearing axial force: ft ≥ FX

C. Transmission force: ft ≥ f2x + (MD / 2x10-3) 2

D. Bearing radial force: Pt ≥ FR / d1x103, where:

M ￣ torque to be transmitted, kn · m;

FX ￣ axial force to be borne, kn;

FT ￣ radial force to be borne, kn;

Rated torque of MT ￣ locking assembly, kn · m;

Rated axial force of FT ￣ locking assembly; KN;

d. |inner diameter and inner ring width of locking assembly, mm;

Pressure on the joint surface between Pt ￣ locking assembly and shaft, N / mm2

Products Features

Products Parameters
