Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO 9001
Model Number: TLK300 series
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-7working days
Supply Ability: 1000 per month
Model Number: |
TLK300 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Weight: |
0.1-10.5 |
Outer Diameter: |
14-155mm |
Thickness (mm): |
24-140mm |
Bore Size: |
6-120mm |
Torque (kNm: |
0.014-15.7 |
Model Number: |
TLK300 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Weight: |
0.1-10.5 |
Outer Diameter: |
14-155mm |
Thickness (mm): |
24-140mm |
Bore Size: |
6-120mm |
Torque (kNm: |
0.014-15.7 |

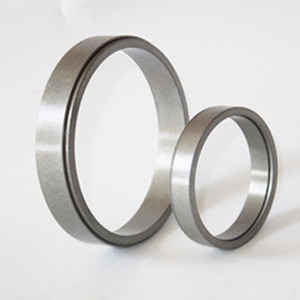

TLK300 Series Lock Nut Bearing Standard Shaft Locking Device
Products Features
Keyless Locking Devices (KLDs) are mechanical bushings used to connect power transmission components onto rotating shafts. These keyless, frictional devices provide an easily adjustable and releasable mechanical shrink fit, while eliminating problems associated with backlash including fretting, corroding and wallowing
TLK series locking assembly is the Renoxd brands products
Tollok T300100X114 Medium-Low Torque Locking Device with an external diameter of 114-millimeters and an internal diameter of 100-millimeters.
Advantages:
Changzhou TIANNIU Transmission Equipment Co., Ltd (Changzhou TIANNIU Clutch Factory) is a professional one way clutch bearing supplier, the primary products are micro electromagnetic clutch, torque limiter coupling, sliding shaft coupling, flexible propeller shaft coupling, locking assembly and shaft couplings, etc.
We have been in Sprag Clutch Bearing and clutch one way bearing industry for more than 10years, persisting in the business principle of products tailored to requirements from clients.We service through listening to our customers, applying innovation and building with craftsmanship to meet all their needs.
Products Parameters
| Part Number | d x D (mm) | B (mm) | L1 (mm) | Pre-Load Force - Pt (N) | Total Force - Pa (N) | Torque - Mt (N.m) | Axial force - Fax (kN) | Distance W 1 (mm) | Distance W 2 (mm) | Distance W 3 (mm) | Distance W 4 (mm) | Spacer Diameter Inside d1 (mm) | Spacer Diameter Outside D1 (mm) | Surface Pressure on Shaft - pw (N/mm²) | Surface Pressure on Hub - pn (N/mm²) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TLK 300 6x9 | 6 x 9 | 4.5 | 3.7 | 0 | 3800 | 2 | 0.84 | 2.5 | 2.5 | 3 | 4 | 6.1 | 8.9 | 115 | 75 | 0.002 |
| TLK 300 7x10 | 7 x 10 | 4.5 | 3.7 | 0 | 3900 | 3 | 0.86 | 2.5 | 2.5 | 3 | 4 | 7.1 | 9.9 | 105 | 70 | 0.002 |
| TLK 300 8x11 | 8 x 11 | 4.5 | 3.7 | 0 | 5300 | 5 | 1.17 | 2.5 | 2.5 | 3 | 4 | 8.1 | 10.9 | 120 | 90 | 0.002 |
| TLK 300 9x12 | 9 x 12 | 4.5 | 3.7 | 7650 | 15600 | 8 | 1.76 | 2.5 | 2.5 | 3 | 4 | 9.1 | 11.9 | 140 | 105 | 0 |
| TLK 300 10x13 | 10 x 13 | 4.5 | 3.7 | 7000 | 15600 | 10 | 1.91 | 2.5 | 2.5 | 3 | 4 | 10.1 | 12.9 | 135 | 105 | 0.002 |
| TLK 300 12x15 | 12 x 15 | 4.5 | 3.7 | 7000 | 15600 | 11 | 1.91 | 2.5 | 2.5 | 3 | 4 | 12.1 | 14.9 | 115 | 90 | 0.002 |
| TLK 300 13x16 | 13 x 16 | 4.5 | 3.7 | 6500 | 15600 | 13 | 2.02 | 2.5 | 2.5 | 3 | 4 | 13.1 | 15.9 | 110 | 90 | 0 |
| TLK 300 14x18 | 14 x 18 | 6.3 | 5.3 | 11000 | 25400 | 22 | 3.18 | 3.5 | 3.5 | 4.5 | 5.5 | 14.1 | 17.9 | 115 | 90 | 0.005 |
| TLK 300 15x19 | 15 x 19 | 6.3 | 5.3 | 10800 | 25400 | 24 | 3.24 | 3.5 | 3.5 | 4.5 | 5.5 | 15.1 | 18.9 | 110 | 85 | 0.005 |
| TLK 300 16x20 | 16 x 20 | 6.3 | 5.3 | 10000 | 25400 | 27 | 3.42 | 3.5 | 3.5 | 4.5 | 5.5 | 16.1 | 19.9 | 105 | 85 | 0.006 |
