Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO-9001
Model Number: TLK401series
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-7working days
Supply Ability: 1000 per month
Model Number: |
TLK401 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Bore Size: |
45-320mm |
Weight: |
1.5-71KG |
Outer Diameter: |
75-405mm |
Size: |
M8 M10 M12 M14 M16 M20 |
Torque (kNm: |
174-2930 |
Model Number: |
TLK401 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Bore Size: |
45-320mm |
Weight: |
1.5-71KG |
Outer Diameter: |
75-405mm |
Size: |
M8 M10 M12 M14 M16 M20 |
Torque (kNm: |
174-2930 |

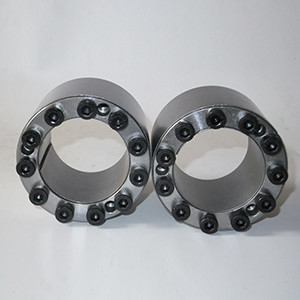

TLK401 Locking Assembly Self-Centering Tollok Keyless For Industry
TLK300 Series Lock Nut Bearing Standard Shaft Locking Device
Products Introduction
The z-series locking assembly produced by Changzhou tianniu transmission company relies on the authoritative technical standards in Europe, and has made some creative improvements to the products scientifically. The company mainly produces euro, JB (GB) standards, USA standards and various non-standard locking assembly series products. The products are exported to the European Union, the United States, Australia, Southeast Asia, Hong Kong and Taiwan and other countries and regions. At present, the enterprise covers an area of 1000 square meters and has various CNC machine tools, high-precision measuring instruments and special measuring equipment. The company has successively developed and produced more than 30 standard series and thousands of specifications of locking assemblies. It is a large-scale professional locking assembly manufacturer in China.
The Locking Assembly is an advanced mechanical base part that is widely used in
the world for mechanical joints under various loads. The United States, Germany, Japan
and countries with more developed industries first used this new technology in heavy-duty machinery.
Products Features
Model | RLK603 Locking Assembly | |
Rated Load (kN.m) | Force | 5-3500 |
Torque | 0.025-517 | |
Inner Race Size (mm) | 14-360 | |
Outer Race Size (mm) | 38-590 | |
Thickness (mm) | 15-175 | |
Weight (Kg) | 0.1-186 |
Products Parameters
基 本 尺 寸 fundamental dimensions |
内 六 角 螺 钉 internal hexagon headed bolt |
额 定 Rated |
负 荷 load |
Pf (N/mm2) |
G
(kg) |
||||||
d | D | I | L |
规 格 sizes |
数 量 Qty |
MA N·m |
Ft (kN) | Mt (kN·m) | |||
mm | |||||||||||
45 | 75 | 9 | 174 | 3.9 | 185 | 1.5 | |||||
48 | 80 | 9 | 174 | 4.1 | 170 | 1.6 | |||||
50 | 80 | 64 | 72 | M8 | 9 | 41 | 174 | 4.3 | 165 | 1.7 | |
55 | 85 | 9 | 174 | 4.8 | 150 | 1.8 | |||||
60 | 90 | 11 | 213 | 6.4 | 170 | 1.9 | |||||
65 | 95 | 11 | 213 | 6.9 | 155 | 2.0 | |||||
70 | 110 | 11 | 338 | 11.8 | 185 | 3.6 | |||||
75 | 115 | 11 | 338 | 12.7 | 170 | 3.8 | |||||
80 | 120 | 78 | 88 | M10 | 12 | 83 | 369 | 14.7 | 175 | 4.0 | |
85 | 125 | 12 | 369 | 15.7 | 165 | 4.3 | |||||
90 | 130 | 13 | 400 | 18.0 | 170 | 4.5 | |||||
95 | 135 | 13 | 400 | 19.0 | 160 | 4.7 | |||||
100 | 145 | 12 | 538 | 26.9 | 160 | 7.2 | |||||
110 | 155 | 100 | 112 | M12 | 13 | 145 | 583 | 32.0 | 155 | 7.7 | |
120 | 165 | 15 | 673 | 40.3 | 165 | 8.3 | |||||
130 | 180 | 13 | 800 | 52.0 | 155 | 11.7 | |||||
140 | 190 | 116 | 130 | M14 | 15 | 230 | 923 | 64.6 | 170 | 12.5 | |
150 | 200 | 16 | 985 | 73.8 | 165 | 13.2 | |||||
160 | 210 | 17 | 1045 | 83.7 | 165 | 14.0 | |||||
170 | 225 | 15 | 1283 | 109 | 150 | 20.6 | |||||
180 | 235 | 16 | 1369 | 123 | 150 | 21.6 | |||||
190 | 250 | 17 | 1454 | 138 | 150 | 25.0 | |||||
200 | 260 | 146 | 162 | M16 | 17 | 355 | 1454 | 145 | 145 | 26.2 | |
220 | 285 | 20 | 1710 | 188 | 155 | 31.1 | |||||
240 | 305 | 22 | 1880 | 225 | 155 | 33.6 | |||||
260 | 325 | 22 | 1880 | 244 | 145 | 36.1 | |||||
280 | 355 | 20 | 2670 | 373 | 155 | 54.9 | |||||
300 | 375 | 177 | 197 | M20 | 22 | 690 | 2930 | 440 | 155 | 58.3 | |
320 | 405 | 22 | 2930 | 470 | 145 | 71.0 |
