DLY1-16 DLY1-40 24v Dc Electromagnetic Clutch Bearing

Name: DLY1-16 DLY1-40 24v Dc Electromagnetic Clutch Bearing
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: DLY1
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: CGS

Model Number: DLY1

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            DLY1-16 electromagnetic clutch bearing, 24v dc electromagnetic clutch bearing, electromagnetic clutch 24v


Name:	DLY1 Series Industrial Electromagnetic Brake	Inner Diameter:	27.5-265mm
Outer Diameter: 85-253mm:	61-460mm	Length:	34.5-70.5mm
Warranty:	12 Months	Customized Support:	OEM, ODM
Weight:	0.57kg-34kg

Name:	DLY1 Series Industrial Electromagnetic Brake
Inner Diameter:	27.5-265mm
Outer Diameter: 85-253mm:	61-460mm
Length:	34.5-70.5mm
Warranty:	12 Months
Customized Support:	OEM, ODM
Weight:	0.57kg-34kg

Description

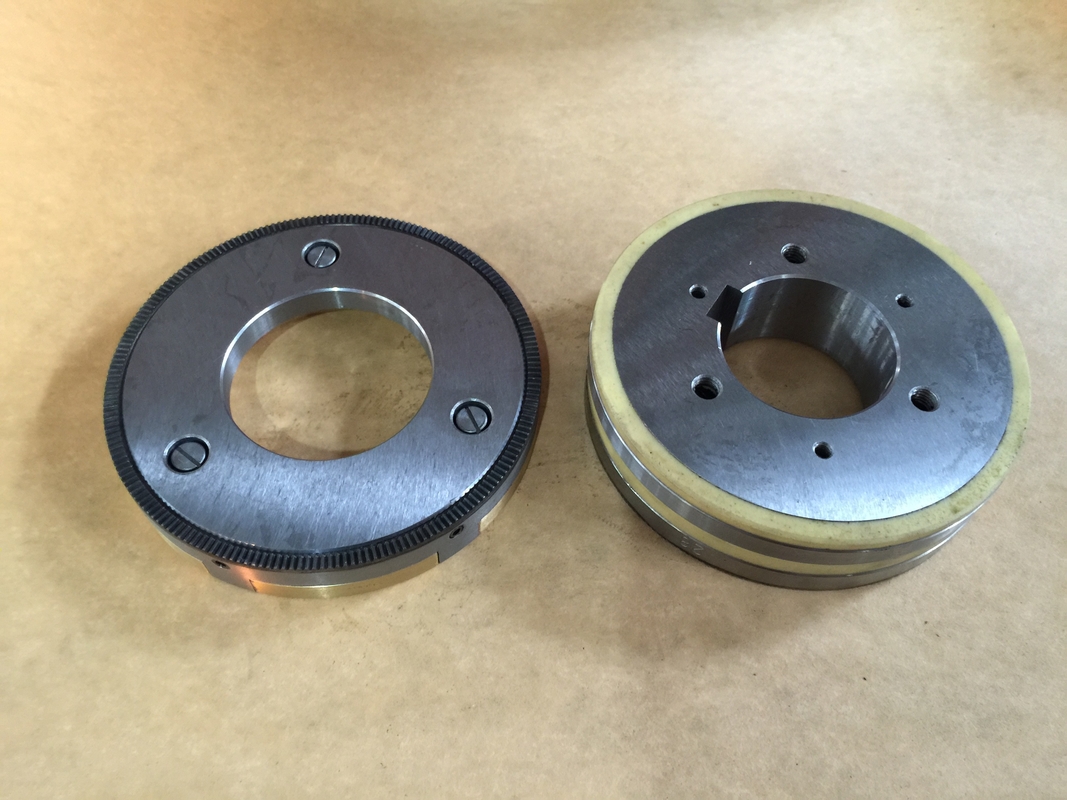

DLY1-16 DLY1-40 24v Dc Electromagnetic Clutch Bearing

DLY1 series DC24 V Electromagnetic Brake Clutch

Products Introduction

The working principle of electromagnetic clutch briefly introduces the characteristics.

1. High speed response: because it is dry type, the torque is transmitted quickly and convenient action can be achieved.

2. High energy, high durability and good heat dissipation

3. Easy assembly and maintenance: it belongs to the static shape of the magnetic field coil hidden in the ball bearing, so there is no need to take out the middle core and use the carbon brush, which is simple to use.

4. Sure action: the use of plate-shaped shrapnel will not loosen despite strong vibration, with good durability

The clutch one way bearing is mainly used in machinery driving system,and

widely in metal processing machine,metallurgy,steel rolling machine,packing

machine,medical machine,food processing machine textile and printing and

dying machine,paper making machine,precision machine tool etc.

Products Parameters

SIZE	Radial Demensions											Axial Demensions
SIZE	D1	D2	D3	D4	D5	D6	D	d	b	Φ1	Φ2	L	L1	L2	L3	L4	L5	δ
DLY1-16	115	90	80	60H8	45H11	115	45	40	12	4-Φ7	4-ΦII	52	7	8	2	24	22	0.25
DLY1-40	145	115	92	70H7	50H11	145	50	45	12	6-Φ7	6-ΦII	70	9	8	3	34	26	0.5

DLY1-16 DLY1-40 24v Dc Electromagnetic Clutch Bearing 0
