Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: CGS
Model Number: DLY2
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-10working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
Name: |
DLY12 Series Industrial Electromagnetic Brake |
Inner Diameter: |
27.5-265mm |
Outer Diameter: 85-253mm: |
61-460mm |
Length: |
34.5-70.5mm |
Warranty: |
12 Months |
Customized Support: |
OEM, ODM |
Weight: |
0.57kg-34kg |
Name: |
DLY12 Series Industrial Electromagnetic Brake |
Inner Diameter: |
27.5-265mm |
Outer Diameter: 85-253mm: |
61-460mm |
Length: |
34.5-70.5mm |
Warranty: |
12 Months |
Customized Support: |
OEM, ODM |
Weight: |
0.57kg-34kg |

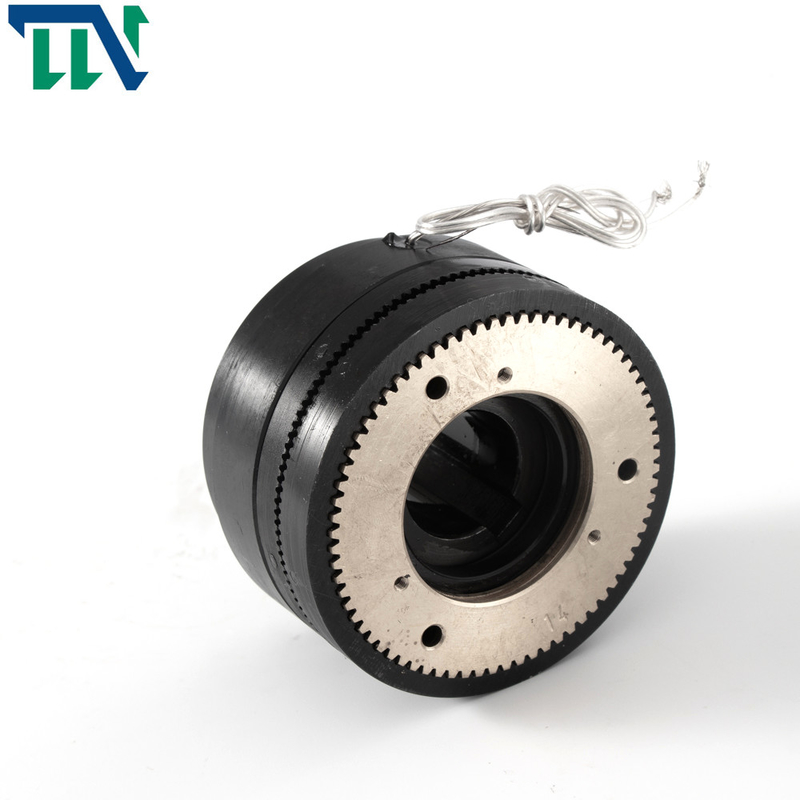

DLY3 Teeth-type Multi Disc Electromagnetic Clutch
Products Introduction
Changzhou Tianniu Transmission is a professional manufacturer of electromagnetic clutch (brake), overrunning clutch, safety clutch, machine tool pin, clutch friction plate, brush and auxiliary accessories. The company has high-level production technicians and advanced production technology. It has developed and produced more than 20 series and nearly 1000 specifications of products at home and abroad.
Products are widely used in mechatronics, machine tools, instruments and meters, light industrial machinery, food machinery, tobacco machinery, printing machinery, packaging machinery, papermaking machinery, textile machinery, cement mining equipment, steel rolling equipment, automobile equipment, lifting and transportation equipment, medical equipment, office equipment, fishery ships, etc.
We also provide customized and maintenance for the clutch of imported equipment.
Products Parameters
| SIZE | Radial Demensions(mm) | Axial Demensions(mm) | ||||||||||||||||
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | Φ1 | Φ2 | Φ | h | e | L | L1 | L2 | L3 | α | δ | |
| DLY3-5A | 82 | 58 | 42 | 36 | 35 | 75 | 82 | 3-Φ4.5 | 3-Φ10 | 20 | 22.8 | 6 | 55 | 42 | 6 | 8 | 45° | 0.3±0.05 |
| DLY3-25A | 115 | 80 | 62 | 55 | 55 | 105 | 115 | 3-Φ6.5 | 3-Φ12 | 40 | 43.3 | 12 | 70 | 50.8 | 5 | 10 | 45° | 0.4±0.1 |
| DLY3-40A | 134 | 95 | 72 | 68 | 70 | 127 | 134 | 6-Φ8.5 | 6-Φ15 | 45 | 48.8 | 14 | 83 | 61 | 7 | 10 | 45° | 0.4±0.1 |
| DLY3-63A | 145 | 95 | 72 | 65 | 65 | 127 | 145 | 6-Φ8.5 | 6-Φ15 | 45 | 48.8 | 14 | 85.6 | 64.5 | 5 | 10 | 45° | 0.7±0.1 |
| DLY3-100A | 166 | 120 | 90 | 80 | 85 | 152 | 166 | 6-Φ8.5 | 6-Φ14.5 | 60 | 64.4 | 18 | 95 | 68 | 10 | 12 | 45° | 0.7±0.1 |
| DLY3-200A | 210 | 160 | 130 | 95 | 105 | 190 | 210 | 6-Φ10.5 | 6-Φ18 | 85 | 90.4 | 22 | 110 | 80 | 10 | 12 | 45° | 0.4±0.05 |
Mounting example:
