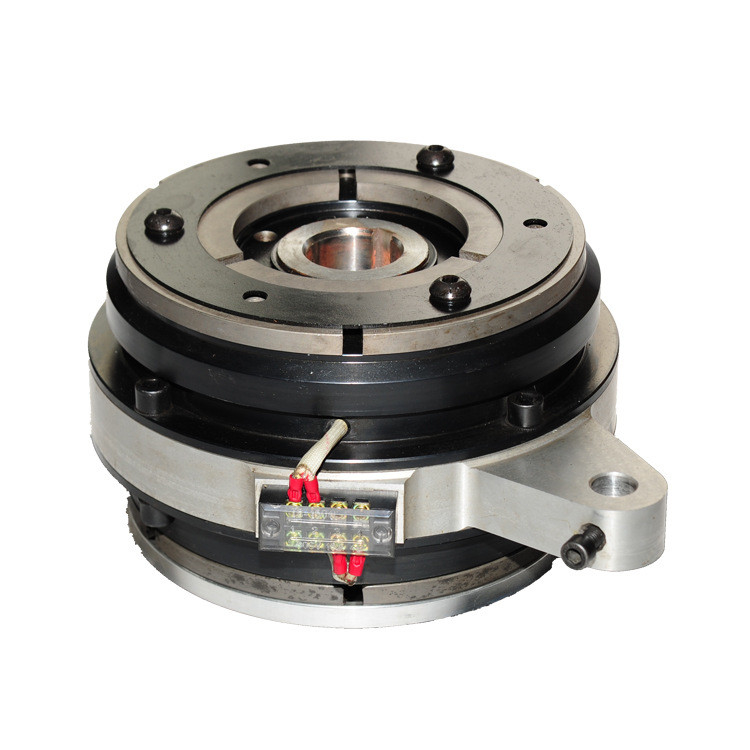

DLZ1-25 DLZ1-40 DLZ1-50 Small Miniature Micro Electromagnetic Clutch Brake 24vdc

DLZ-1 Electromagnetic Clutch Brake Micro Electromagnetic Clutch

Products Introduction

Electromagnetic clutch is also called electromagnetic coupling. It is an electromagnetic mechanical connector that uses the principle of electromagnetic induction and the friction between internal and external friction plates to make two rotating parts in the mechanical transmission system. When the driving part does not stop rotating, the driven part can be combined or separated from it. It is an automatic electric appliance. Electromagnetic clutch can be used to control the starting, reverse, speed regulation and braking of machinery. It has the advantages of simple structure, fast action, low control energy and convenient remote control; Although the volume is small, it can transmit large torque; When used as braking control, it has the advantages of rapid and stable braking, so electromagnetic clutch is widely used in various machining machines and mechanical transmission systems.

The function of the electromagnetic clutch is to transfer the torque (or power) of the actuator from the driving shaft side to the driven shaft side. It is widely used in various mechanisms (such as transmission mechanism and various motor mechanisms in machine tools) to realize the functions of fast start, braking, forward and reverse rotation or speed regulation. Because the electromagnetic clutch is easy to realize remote control and is much easier to operate than other mechanical, hydraulic or pneumatic clutches, it is an important component in the automatic control system.

DLZ1 Series Electromagnetic clutch brake unit is a combined and multi-functional product,

mainly used in machinery driving system,it can realize two functions of starting and braking

for load while the driving parts are working ,and also ca realize the starting and stopping

control with high precision,when it is equipped with special power controlling device,it widely

used in machines that required positioning with high precision ,such as printing machine,

packaging machine and the equipment of plywood producing line.

Products Parameters

Mounting Example:

Installation:

1. Doesn’t need to adjust before mounted.

2.The coaxial degree of input and output axles are allowed not to exceed 0,1mm when mounted.

3. The bottom seat should be fixed hardenly.
