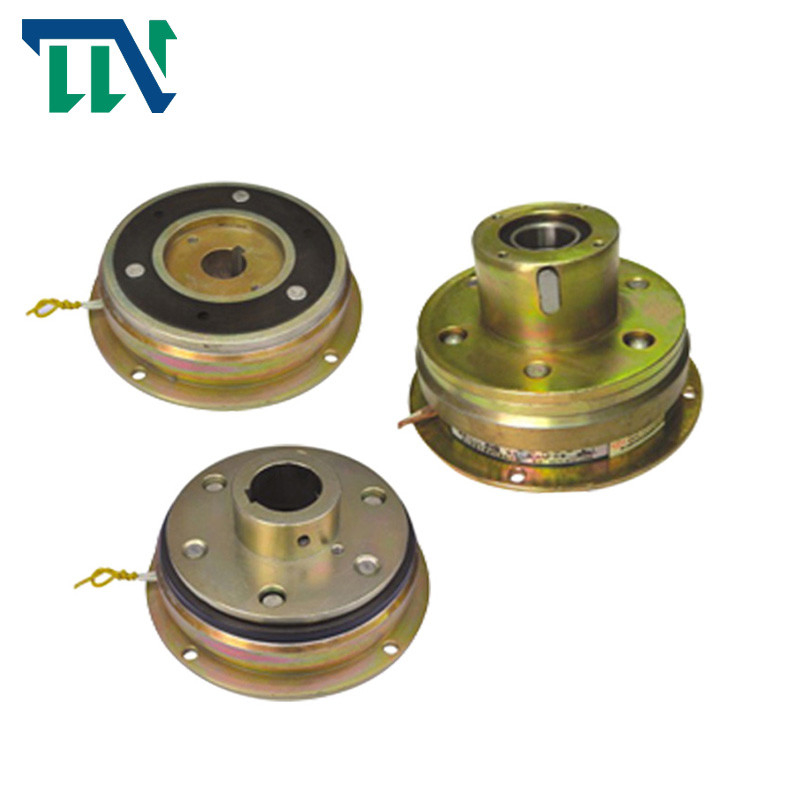

DLD1-120A Mini Electromagnetic Clutch 24V DC For Textile Machinery

Name: DLD1-120A Mini Electromagnetic Clutch 24V DC For Textile Machinery
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: DLD1 120 A
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: CGS

Model Number: DLD1 120 A

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            DLD1-120A Mini Electromagnetic Clutch Tianniu, 24v dc electromagnetic clutches Tianniu, Electromagnetic Clutch for Textile Machinery Tianniu


Name:	DLD1 120A Eries Industrial Electromagnetic Brake	Inner Diameter:	27.5-265mm
Outer Diameter: 85-253mm:	61-460mm	Length:	34.5-70.5mm
Warranty:	12 Months	Customized Support:	OEM, ODM
Weight:	0.57kg-34kg

Name:	DLD1 120A Eries Industrial Electromagnetic Brake
Inner Diameter:	27.5-265mm
Outer Diameter: 85-253mm:	61-460mm
Length:	34.5-70.5mm
Warranty:	12 Months
Customized Support:	OEM, ODM
Weight:	0.57kg-34kg

Description

DLD1-120A Mini Electromagnetic Clutch 24V DC For Textile Machinery

DLD1-120A 24V DC Mini Electromagnetic Clutch DLD type for Textile Machinery Electromagnetic Brake

Products Introduction

·The separation and pull-in of power transmission are controlled by 24V DC, and the power on pull-in and power off separation are realized

·Shaft flange (wheel) structure, customers can install pulley, sprocket, gear and other components by themselves

·It is used in dry oil-free environment with sensitive reaction time, which is convenient to realize high-frequency clutch and switching

·Single friction plate structure, which can be absorbed or separated in high-speed rotation

·Convenient installation type, customers hardly need to prepare other accessories, which is convenient for direct installation

When the relative revolution of the driving and the driven of parts is lower or zero,the clucth makes them combination,thus realize the purpose of starting and stopping ,changing the directions and positioning etc.The clucth is mainly used in machinery driving system,and widely in metal processing machine,metallurgy,steel rolling machine,packing machine,medical machine,food processing machine textile and printing and dying machine,papermaking machine,precision machine tool etc.

Products Parameters

SIZE	rated dynemil torqueN.m	static torqueN.m	rated voltage DC V	coil consumption power(20°)W	allowed max revolvtion(r/min)
DLD1-120A	1200	1320	24	128	1000
