Old Hams Coupling Flexible Shaft Coupler Clamping 40x50 GHC16

Name: Old Hams Coupling Flexible Shaft Coupler Clamping 40x50 GHC16
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: GHC series
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO 9001

Model Number: GHC series

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-7 working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    old hams coupling Flexible, old hams Flexible Shaft Coupler, Flexible Shaft Coupler Clamping


Name:	Oldham Shaft Coupling	Material:	Aluminium Steel
Inner Diameter:	16-70mm	Model:	GHC Series
Structure:	Oldham Clamping Type	Warranty:	12 Months
Surface Treatment:	Anodic Oxidation Treatment	Flexible Or Rigid:	Flexible

Name:	Oldham Shaft Coupling
Material:	Aluminium Steel
Inner Diameter:	16-70mm
Model:	GHC Series
Structure:	Oldham Clamping Type
Warranty:	12 Months
Surface Treatment:	Anodic Oxidation Treatment
Flexible Or Rigid:	Flexible

Description

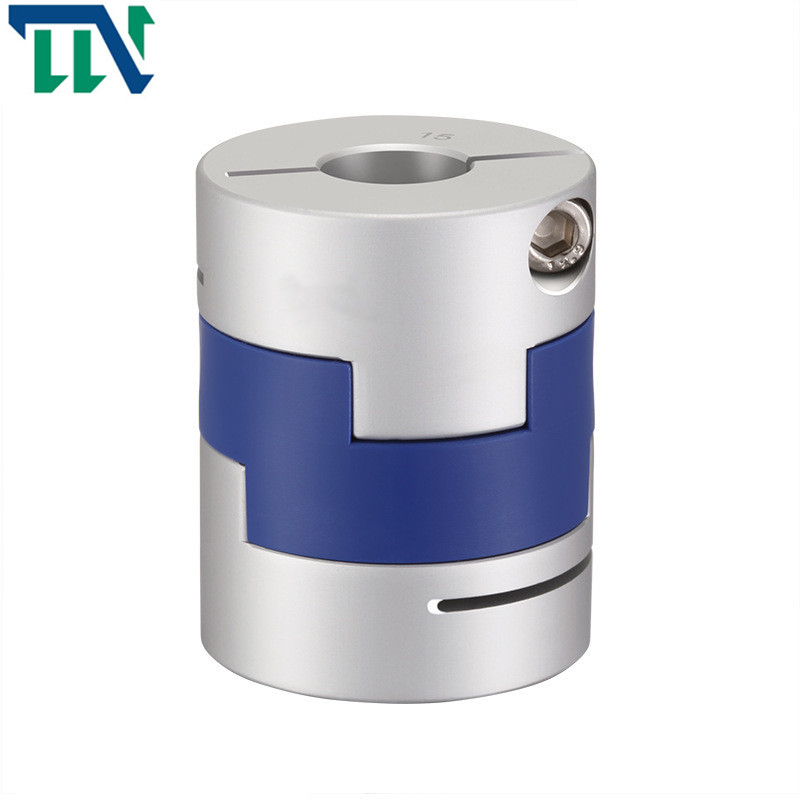

Old Hams Coupling Flexible Shaft Coupler Clamping 40x50 GHC16

Aluminium Alloy Flexible Oldham Type Shaft Coupling For Mechanism Connection

Products Features

GHC Oldham type coupling cross sliding clamp coupling

> We are useing The colloid material is imported PA66, which has good wear resistance, corrosion resistance and electrical insulation
> We are using Sliding design can compensate radial and angular deviation more effectively
> Detachable design, easy to install
> Fastening method of clamping screw

Changzhou Tianniu Factory is a professional manufacturer of plum couplings, rigid couplings, universal couplings, cross slide couplings, winding couplings, bellows couplings, double membrane couplings and other products. The processing company has a complete and scientific quality management system.

Products Parameters

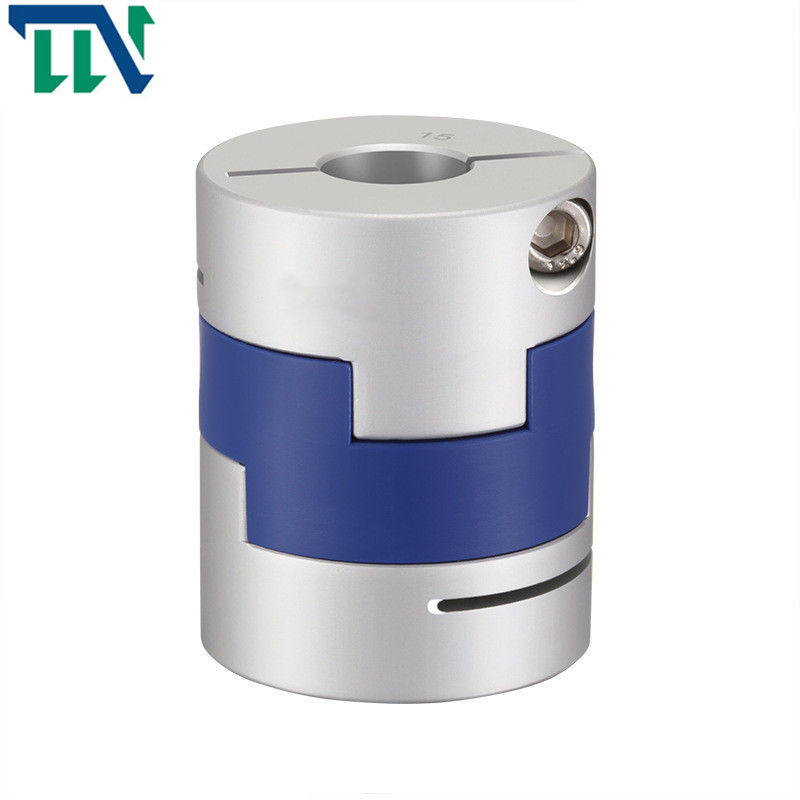

Production Drawings

Old Hams Coupling Flexible Shaft Coupler Clamping 40x50 GHC16 0

Production Datasheet

model parameter	common bore diameter d1,d2	ΦD	L	LF	LP	F	M	tightening screw torque (N.M)
GHC-16X21	4,5,6,6.35	16	21	8.6	11.6	2.5	M2.5	1
GHC-16X30	4,5,6,6.35	16	30	13.1	11.6	3	M2.5	1
GHC-20X22	5,6,6.35,7,8	20	22	8.6	12.7	2.5	M2.5	1
GHC-20x33	5,6,6.35,7,8	20	33	14.1	12.7	3	M2.5	1
GHC-25x28	5,6,6.35,8,9,9.525,10,11,12	25	28	11.7	16.65	3	M3	1.5
GHC-25X39	5,6,6.35,8,9,9.525,10,11,12	25	39	17.2	16.65	4.2	M3	1.5
GHC-32X33	5,6,8,9,9.525,10,11,12.12.7,14,15,16	32	33	14	19.5	3	M4	2.5
GHC-32X45	5,6,8,9,9.525,10,11,12,12.7,14,15,16	32	45	20	19.5	4.5	M4	2.5
GHC-40X50	8,9,9.525,10,11,12,14,15,16,17,18,19	40	50	23	18.4	7	M5	7
GHC-45X46	8,9,9.525,10,11,12,14,15,16,17,18,19,20,22	45	46	21	18.4	7	M5	7
GHC-50X53	10,11,12.7,14,15,16,17,18,19,20,22,24	50	53	24	15	7.5	M6	12
GHC-50X58	10,11,12.7,14,15,16,17,18,19,20,22,24	50	58	26.5	17.5	8	M6	12
GHC-55X57	10,11,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32	55	57	26	17.5	7.8	M6	12
GHC-63X71	14,15,16,17,18,19,20,22,24,25,28,30,32	63	71	33	24	10	M8	20
GHC-70X77	14,15,16,17,18,19,20,22,24,25,28,30,32,35,38	70	77	29.5	25	12	M8	20

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	Material of shaft sleeve	Material of shrapnel	surface treatment	weight (g)
GHC-16X21	0.7	0.8	3	±0.2	8500	30	5.5x10-7	High strength aluminum alloy	P A 6 6	Anodizing treatment	8
GHC-16X30	0.7	0.8	3	±0.2	9000	30	5.9x10-7				12
GHC-20X22	1.2	1.2	3	±0.2	6500	58	1.3x10-6				13
GHC-20x33	1.2	1.2	3	±0.2	7000	58	1.5x10-6				19
GHC-25X28	2	1.6	3	±0.2	5500	130	4.0x10-6				24
GHC-25X39	22	1.6	3	±0.2	6000	130	4.5x10-6				35
GHC-32X33	4.5	2	3	±0.2	4500	270	1.3x10-5				48
GHC-32X45	4.5	2	3	±0.2	4800	270	1.5x10-5				67
GHC-40X50	9	2.4	3	±0.2	3600	520	4.2x10-5				114
GHC-45X46	12	2.5	3	±0.2	3500	800	4.5x10-5				140
GHC-50X53	19	2.6	3	±0.2	3000	800	1.0x10-4				190
GHC-50X58	19	3	3	±0.2	3000	800	1.1x10-4				215
GHC-55X57	25	3.2	3	±0.2	3000	900	1.3x10-5				260
GHC-63X71	33	3	3	±0.2	2550	1200	3.5x10-4				455
GHC-70X77	56	3.5	3	±0.2	2500	1260	4.1x10-5				520
