Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO-9001
Model Number: GNC series
Payment & Shipping Terms
Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
Name: |
Rigid Shaft Coupling |
Model: |
GNC Series |
Material: |
Aluminium Steel |
Bore Size: |
4-38mm |
Warranty: |
12 Months |
Thickness: |
21-81mm |
Outer Diamter: |
16-65mm |
Elastomer Materia: |
PA66 |
Surface Treatment: |
Anodic Oxidation Treatment |
Name: |
Rigid Shaft Coupling |
Model: |
GNC Series |
Material: |
Aluminium Steel |
Bore Size: |
4-38mm |
Warranty: |
12 Months |
Thickness: |
21-81mm |
Outer Diamter: |
16-65mm |
Elastomer Materia: |
PA66 |
Surface Treatment: |
Anodic Oxidation Treatment |

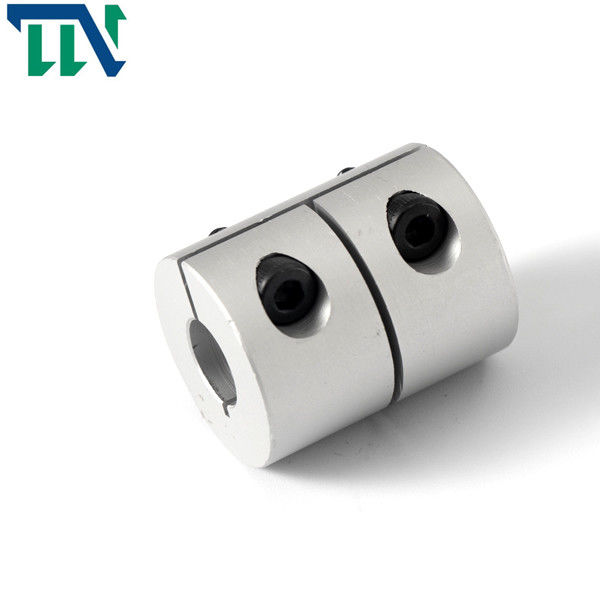

Rigid Clamping Aluminum Alloy Shaft Coupling Metric With High Torque
Products Parameters
| model parameter | common bore diameter d1,d2 | ΦD | L | F | M | tightening screw torque (N.M) |
| GNC-16x16 | 3,4,5,6,6.35,7,8 | 16 | 16 | 3.75 | M2.5 | 1 |
| GNC-16x24 | 3,4,5,6,6.35,7,8 | 16 | 24 | 3.75 | M2.5 | 1 |
| GNC-20x20 | 4,5,6,6.35,7,8,9,9.525,10 | 20 | 20 | 3.75 | M2.5 | 1 |
| GNC-20x30 | 4,5,6,6.35,7,8,9,9.525,10 | 20 | 30 | 3.75 | M2.5 | 1 |
| GNC-25x25 | 5,6,6.35,7,8,9,9.525,10,12 | 25 | 25 | 6 | M3 | 1.5 |
| GNC-25x36 | 5,6,6.35,7,8,9,9.525,10,12 | 25 | 36 | 6 | M3 | 1.5 |
| GNC-28.5x38 | 6,6.35,7,8,9,9.525,10,12,12.7,14 | 28.5 | 38 | 7.8 | M4 | 2.5 |
| GNC-32x32 | 6,6.35,7,8,9,9.525,10,12,12.7,14,15,16 | 32 | 32 | 7 | M4 | 2.5 |
| GNC-32x41 | 6,6.35,7,8,9,9.525,10,12,12.7,14,15,16 | 32 | 41 | 7.75 | M4 | 2.5 |
| GNC-40x44 | 8,9,9.525,10,11,12,12.7,14,15,15,17,18,19,20 | 40 | 44 | 10.5 | M5 | 7 |
| GNC-40x52 | 8,9,9.525,10,11,12,12.7,14,15,15,17,18,19,20 | 40 | 52 | 10.5 | M5 | 7 |
| GNC-50x55 | 10,11,12,12.7,14,15,16,17,18,19,20,22,24,25 | 50 | 55 | 13 | M6 | 12 |
| GNC-50x66 | 10,11,12,12.7,14,15,16,17,18,19,20,22,24,25 | 50 | 66 | 16 | M6 | 12 |
| GNC-63x71 | 10,11,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32,35 | 63 | 71 | 16.5 | M6 | 12 |
| model parameter | Rated torque (N.M)* |
allowable eccentricity (mm)* |
allowable deflection angle (°)* |
allowable axial deviation (mm)* |
maximum speed rpm |
moment of inertia (Kg.M2) |
Material of shaft sleeve | surface treatment | weight (g) |
| GNC-16x16 | 5 | - | - | - | 1000 | 2.9x10-7 | High strength aluminum alloy | Anodizing treatment | 7 |
| GNC-16x24 | 5 | - | - | - | 9400 | 2.9x10-7 | 13 | ||
| GNC-20x20 | 10 | - | - | - | 7500 | 8.6x10-6 | 15 | ||
| GNC-20x30 | 10 | - | - | - | 7500 | 8.6x10-6 | 25 | ||
| GNC-25x25 | 12 | - | - | - | 6000 | 2.7x10-6 | 29 | ||
| GNC-25x36 | 12 | - | - | - | 6000 | 2.7x10-6 | 43 | ||
| GNC-28.5x38 | 14 | - | - | - | 5500 | 2.5x10-6 | 48 | ||
| GNC-32x32 | 15 | - | - | - | 4700 | 7.1x10-6 | 55 | ||
| GNC-32x41 | 15 | - | - | - | 4700 | 7.1X10-6 | 65 | ||
| GNC-40x44 | 19 | - | - | - | 4000 | 1.45x10-5 | 123 | ||
| GNC-40x52 | 19 | - | - | - | 4000 | 1.45x10-5 | 150 | ||
| GNC-50x55 | 45 | - | - | - | 4000 | 7.0x10-5 | 240 | ||
| GNC-50x66 | 45 | - | - | - | 4000 | 7.0x10-5 | 280 | ||
| GNC-63x71 | 100 | - | - | - | 3500 | 9.0x10-5 | 320 |
Products Features
The flanged coupling is a rigid coupling, which is to connect two half-couplings with flanges to the two shafts with ordinary flat keys, and then use bolts to connect the two half-couplings into one to transmit motion. and torque. This kind of coupling has two main structural forms: 1. Relying on the hinged hole to use bolts to achieve the alignment of the two shafts and relying on the bolt rod to withstand extrusion and shearing to transmit torque; 2. relying on a half-coupling on the The shoulder is aligned with the groove on the other coupling half. The bolts connecting the two half-couplings can use ordinary bolts of grade B and B, and the torque is transmitted by the friction torque of the joint surfaces of the two half-couplings.
Changzhou Tianniu Factory is a professional manufacturer of plum couplings, rigid couplings, universal couplings, cross slide couplings, winding couplings, bellows couplings, double membrane couplings and other products. The processing company has a complete and scientific quality management system.
>Integrated structure, the overall use of high-strength aluminum alloy materials
>High torque, high rigidity
>The rigid type basically does not allow eccentricity, so it must be fully adjusted in use
>Fastening method of setscrew screw
