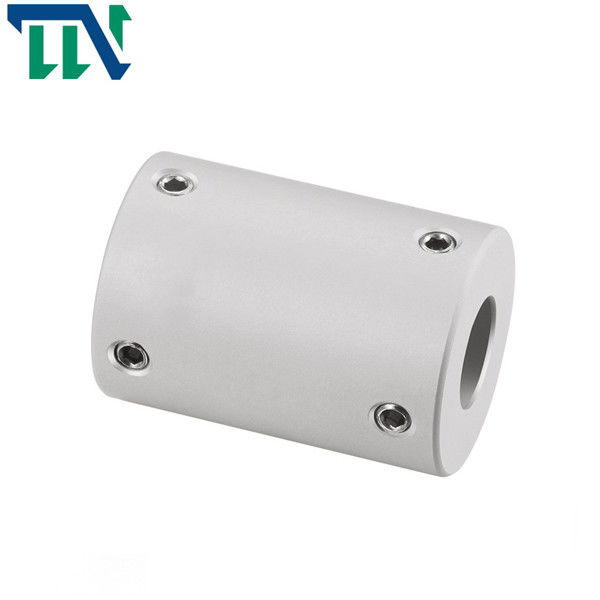

Aluminium Rigid Shaft Couplings Manufacturer Flexible Setscrew Metric 16X16mm

Brand Name:	Tianniu
Model Number:	GN 1616 GN 1624
MOQ:	2 pcs
Price:	Negotiable
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Name:

Rigid Shaft Coupling

Model:

GN Series

Material:

Aluminium Steel

Bore Size:

16mm

Warranty:

12 Months

Elastomer Materia:

PA66

Surface Treatment:

Anodic Oxidation Treatment

Weight:

6g-10g

Packaging Details:

Cartons by sea shipping by airplane

Supply Ability:

10000 per month

Highlight:

aluminium rigid shaft coupling

Rigid Shaft Couplings 16X16mm

16mm flexible shaft coupling

Product Description

Rigid flexible shaft coupling setcrew Aluminum alloy metric

Products Features

Rigid coupling is a kind of torsional rigid coupling, which has no rotation clearance even when bearing load. Even when there is a load caused by deviation, the rigid coupling still transmits torque rigidly.

The bolts on the flange of the rigid coupling can be all bolts for reaming holes, or half of them are bolts for reaming holes, and the other half are ordinary bolts, according to the magnitude of the transmission torque.

>Integrated structure, the overall use of high-strength aluminum alloy materials
>High torque, high rigidity
>The rigid type basically does not allow eccentricity, so it must be fully adjusted in use
>Fastening method of setscrew screw

Changzhou Tianniu Factory is a professional manufacturer of plum couplings, rigid couplings, universal couplings, cross slide couplings, winding couplings, bellows couplings, double membrane couplings and other products. The processing company has a complete and scientific quality management system.

Products Parameters

Aluminium Rigid Shaft Couplings Manufacturer Flexible Setscrew Metric 16X16mm 0

model parameter	common bore diameter d1,d2	ΦD	L	F	M	tightening screw torque (N.M)
GN-16X16	3,4,5,6,6.35,7,8	16	16	5	M3	0.7
GN-16x24	4,5,6,6.35,7,8	16	24	6	M3	0.7
GN-20x20	4,5,6,6.35,7,8,9,9.525,10	20	20	5	M3	0.7
GN-20x30	4,5,6,6.35,7,8,9,9.525,10	20	30	7	M4	1.7
GN-25x25	5,6,6.35,7,8,9,9.525,10,12	25	25	8	M4	1.7
GN-25x36	5,6,6.35,7,8,9,9.525,10,12	25	36	9	M4	1.7
GN-32x32	6,6.35,7,8,9,9.525,10,12,12.7,14,15,16	32	32	9	M5	4
GN-32x41	6,6.35,7,8,9,9.525,10,12,12.7,14,15,16	32	41	10	M5	4
GN-40x44	8,9,9.525,10,11,12,12.7,14,15,16,17,18,19,20	40	44	10.5	M5	4
GN-50x55	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25	50	55	13	M6	7
GN-50x66	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25	50	66	15	M6	7
GN-63x71	12,14,15,16,17,18,19,20,22,24,25,28,30,32	63	71	16	M6	7

odel parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	moment of inertia (Kg.M2)	Material of shaft sleeve	surface treatment	weight (g)
GN-16x16	5	-	-	-	23000	4.39x10-7	High strength aluminum alloy	Anodizing treatment	6
GN-16x24	5	-	-	-	23000	4.39x10-7			10
GN-20x20	10	-	-	-	18000	1.25x10-6			14
GN-20x30	10	-	-	-	18000	1.25x10-6			19
GN-25x25	12	-	-	-	14000	3.8x10-7			25
GN-25x36	12	-	.	-	14000	3.8xl0-7			38
GN-32x32	15	-	-	-	11000	1.15x10-7			60
GN-32x41	15	-	-	-	11000	1.15xl0-7			70
GN-40x44	19	-	-	-	4000	1.45x10-7			118
GN-50x55	45	-	-		4000	2x10-7			235
GN-50x66	45	-	-	-	4000	2x10-7			300
GN-63x71	115	-	-	-	3800	1.8x10-7			400
