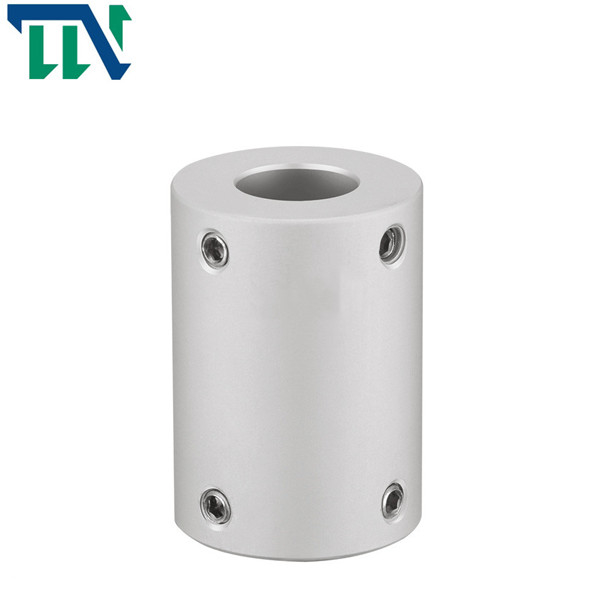

Servo Motor Solid Shaft Coupling Rigid Clamp Coupling 32X32mm

Servo Motor Solid Shaft Coupling Rigid Clamp Coupling 32X32mm

Servo Motor Solid Shaft Coupling Rigid Clamp Coupling 32X32mm

Brand Name:	Tianniu
Model Number:	GN 3232 GN 3241
MOQ:	2 pcs
Price:	Negotiable
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Name:

Rigid Shaft Coupling

Model:

GN Series

Material:

Aluminium Steel

Bore Size:

32mm

Warranty:

12 Months

Elastomer Materia:

PA66

Surface Treatment:

Anodic Oxidation Treatment

Weight:

60-70g

Packaging Details:

Cartons by sea shipping by airplane

Supply Ability:

10000 per month

Highlight:

Servo Motor Solid Shaft Coupling

,

rigid clamp coupling 32X32mm

,

rigid coupler

Product Description

Rigid GN 32X32 41 Rigid Shaft Coupling Aluminum Alloy Metric For Servo Motor

Products Parameters

Servo Motor Solid Shaft Coupling Rigid Clamp Coupling 32X32mm 0

model parameter	common bore diameter d1,d2	ΦD	L	F	M	tightening screw torque (N.M)
GN-16X16	3,4,5,6,6.35,7,8	16	16	5	M3	0.7
GN-16x24	4,5,6,6.35,7,8	16	24	6	M3	0.7
GN-20x20	4,5,6,6.35,7,8,9,9.525,10	20	20	5	M3	0.7
GN-20x30	4,5,6,6.35,7,8,9,9.525,10	20	30	7	M4	1.7
GN-25x25	5,6,6.35,7,8,9,9.525,10,12	25	25	8	M4	1.7
GN-25x36	5,6,6.35,7,8,9,9.525,10,12	25	36	9	M4	1.7
GN-32x32	6,6.35,7,8,9,9.525,10,12,12.7,14,15,16	32	32	9	M5	4
GN-32x41	6,6.35,7,8,9,9.525,10,12,12.7,14,15,16	32	41	10	M5	4
GN-40x44	8,9,9.525,10,11,12,12.7,14,15,16,17,18,19,20	40	44	10.5	M5	4
GN-50x55	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25	50	55	13	M6	7
GN-50x66	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25	50	66	15	M6	7
GN-63x71	12,14,15,16,17,18,19,20,22,24,25,28,30,32	63	71	16	M6	7

odel parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	moment of inertia (Kg.M2)	Material of shaft sleeve	surface treatment	weight (g)
GN-16x16	5	-	-	-	23000	4.39x10-7	High strength aluminum alloy	Anodizing treatment	6
GN-16x24	5	-	-	-	23000	4.39x10-7			10
GN-20x20	10	-	-	-	18000	1.25x10-6			14
GN-20x30	10	-	-	-	18000	1.25x10-6			19
GN-25x25	12	-	-	-	14000	3.8x10-7			25
GN-25x36	12	-	.	-	14000	3.8xl0-7			38
GN-32x32	15	-	-	-	11000	1.15x10-7			60
GN-32x41	15	-	-	-	11000	1.15xl0-7			70
GN-40x44	19	-	-	-	4000	1.45x10-7			118
GN-50x55	45	-	-		4000	2x10-7			235
GN-50x66	45	-	-	-	4000	2x10-7			300
GN-63x71	115	-	-	-	3800	1.8x10-7			400
