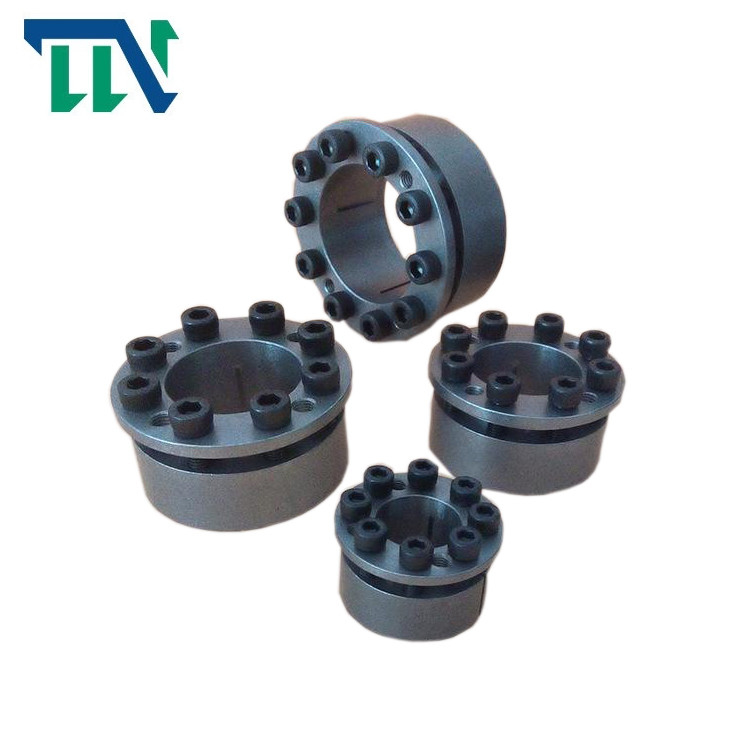

Locking Device Z17 A Keyless Power Lock Assembly For Metallurgy

Name: Locking Device Z17 A Keyless Power Lock Assembly For Metallurgy
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: Z17A
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO9001

Model Number: Z17A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-7working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Metallurgy Power Lock Assembly, Z17A Keyless Power Lock Assembly, Z17 A Locking Device


Model Number:	Z17A Locking Assembly	Material:	GCr15 Bearing Steel
Weight:	0.5-179.5KG	Outer Diameter:	55-710mm
Thickness (mm):	60-155	Bore Size:	30-600mm
Torque (kNm:	64-1265

Model Number:	Z17A Locking Assembly
Material:	GCr15 Bearing Steel
Weight:	0.5-179.5KG
Outer Diameter:	55-710mm
Thickness (mm):	60-155
Bore Size:	30-600mm
Torque (kNm:	64-1265

Description

Locking Device Z17 A Keyless Power Lock Assembly For Metallurgy

Z17 A Keyless Locking Device Power Lock Assembly

Products Features

When the expansion coupling sleeve is installed in the axial direction, it can easily adjust the required position size of the axial direction and the

relative position of the parts without any axial fixation. With the expansion of the scope of application, all kinds of complex connection forms in

the machinery can be replaced by special expansion and tight coupling sleeves. Simplifythe transmission structure or become an integral part of a mechanical component, such as a backlash-free diaphragm coupling.

Mechanical properties of Z17 locking assembly screw I. instructions for use. Please read this instruction carefully before use.

1. Confirm whether the current product is consistent with the model of the configured machinery;

2. Molybdenum or silicon containing additives must not be used in the components of locking assembly;

3. The specified performance level of this product is 1.2 Grade 9 bolts shall be replaced by other bolts;

4. This product has no center positioning function. If you need this function, please design it on the wheel hub by yourself;

5. Do not knock forcibly during the installation of locking assembly;

6. The selection tolerance of shaft and hub is H8 / H8;

Products Parameters

基本尺寸 fundamental dimensions						内六角螺钉internal hexagon headed bolt			额定负荷 Rated load		Pf (N/mm2)	G (kg)
d	D	L₁	L₂	L₃	L₄	规格 sizes	数量 Qty	M_A N·m	F_t (kN)	M_t (kN·m)
mm						规格 sizes	数量 Qty	M_A N·m	F_t (kN)	M_t (kN·m)
30	55						6		60	0.9	132	0.5
35	60	40	17	46	52	M6	7	17	71	1.25	135	0.6
40	65						8		75	1.5	124	0.7
45	75						6		112	2.5	136	1.1
50	80						7		120	3.0	132	1.2
55	85	48	20	56	64	M8	8	41	138	3.8	138	1.3
60	90						8		143	4.3	127	1.4
65	95						9		162	5.3	132	1.5
70	110						8		219	7.6	143	2.6
75	115						8		219	8.2	134	2.8
80 85	120 125	58	24	68	78	M10	8 9	83	219 240	8.7 10.4	125 133	2.9 3.1
90	130						10		274	12.3	139	3.2
95	135						10		274	13.0	132	3.3
100	145						8		301	15.0	121	4.5
110	155	66	28	76	88		9		338	18.6	123	4.9
120	165						10		376	22.5	126	5.3
130	180					M12	12	145	451	29.3	121	7.3
140 150	190 200	76	33	86	98		12 14		451 526	31.5 39.4	112 122	7.8 8.2
160	210						15		563	45.0	123	8.7
170	225	86	38	98	112		12		619	52.5	112	11.6
180	235	86	38	98	112	M14	14	230	722	64.9	124	12.2
190	250	102	46	114	126	M14	16	230	825	78.3	113	16.7
200	260	102	46	114	126		18		925	92.7	121	17.4

220	285						16		1146	126.0	126	22.3
240	305	110	50	122	138	M16	16	355	1146	13.50	115	24.1
260	325						18		1289	167.6	120	25.8
280	355	130	60	145	164	M18	18	485	1552	217.0	113	38.2
300	375	130	60	145	164	M18	20	485	1724	258.5	117	40.6
320	405	154	72	170	190	M20	20	690	2236	357.8	120	58.6
340	425	154	72	170	190	M20	20	690	2236	380.0	113	61.8
360	455						20		2784	501.0	115	85.0
380 400	475 495	178	84	198	220	M22	21 24	930	2923 2923	555.0 584.0	115 109	87.2 93.4
420	515						24		3132	657.0	111	97.5
440 460 480 500 520 540 560 580 600	545 565 585 605 630 650 670 670 710	202	96	226	250	M24	24 24 24 28 28 28 30 30	1200	3617 3617 3617 3940 3940 3940 4219 4219 4219	795.0 831.0 868.0 985.0 1024.0 1063.0 1181.0 1224.0 1266.0	108 103 99 104 100 96 100 96 92	128.9 134.1 139.3 144.5 157.6 163.1 168.6 174.0 179.5
