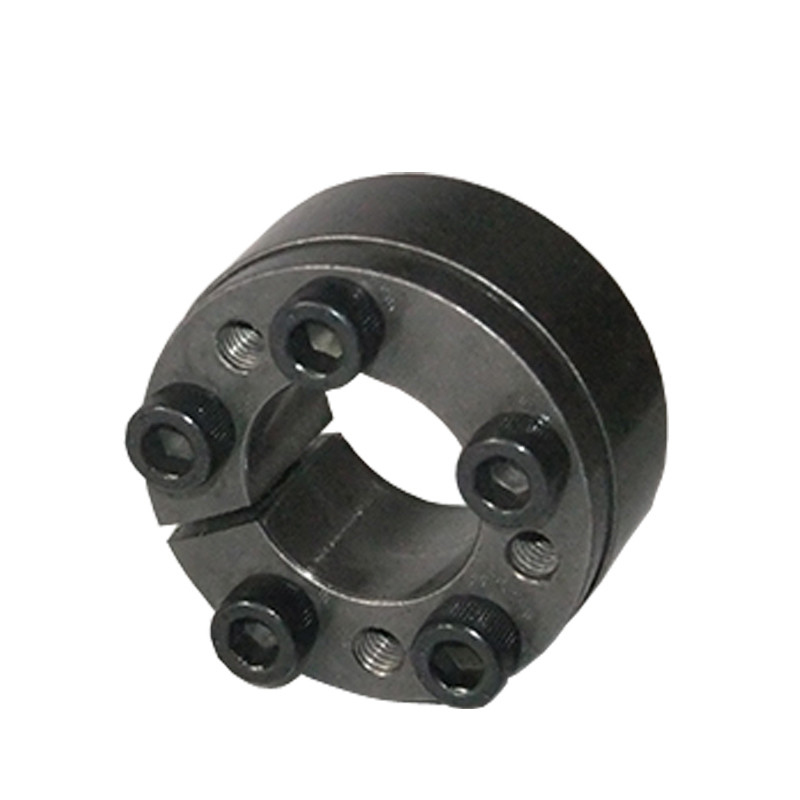

Assembly Locking Shaft Clamping Z15 Series Locking Device For Packaging

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: Z15

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-7working days

Supply Ability: 1000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Z15 Series Locking Device, 60mm Locking Shaft Clamping, Packaging Locking Shaft Clamping


Model Number:	Z15 Locking Assembly	Material:	GCr15 Bearing Steel
Weight:	0.2-100.3KG	Outer Diameter:	47-710mm
Thickness (mm):	60-155	Bore Size:	20-600mm
Torque (kNm:	64-1265

Model Number:	Z15 Locking Assembly
Material:	GCr15 Bearing Steel
Weight:	0.2-100.3KG
Outer Diameter:	47-710mm
Thickness (mm):	60-155
Bore Size:	20-600mm
Torque (kNm:	64-1265

Description

Assembly Locking Shaft Clamping Z15 Series Locking Device For Packaging

Locking Device Z15 Assembly Locking Shaft Clamping For Packaging

Products Features

In 2005, Changzhou tianniu began to comprehensively develop various locking assemblies of the specifications of the standard. After nearly 15 years of practice, it has completed the variety development of all specifications in the standard. It has been extended to textile, packaging, food, light industry, metallurgy, papermaking, printing, machine tools, processing centers, forging machine tools, metallurgical machinery and general machinery, which has won a good reputation and promoted the technological progress of products in the machinery industry. And can develop non-standard locking assembly according to special user needs.

Locking assembly is widely used in:

Mining machinery, metallurgical machinery, packaging machinery, tobacco machinery, textile machinery, printing machinery, forging machinery, engineering machinery, all kinds of machine tools and interchangeable machinery. For example: belt pulley, sprocket, gear, propeller, large and small fan, blower or direct connection with shaft and hub and other transmission connections.

Products Parameters

基本尺寸 fundamental dimensions						内六角螺钉internal hexagon headed bolt			额定负荷 Rated load		Pf (N/mm2)	G (kg)
d	D	L₁	L₂	L₃	L₄	规格 sizes	数量 Qty	M_A N·m	F_t (kN)	M_t (kN·m)
mm
20	47	20	17	23	29	M6	5	17	34	0.34	242	0.25
22										0.38	220	0.24
24	50									0.41	202	0.27
25										0.43	194	0.29
28	55						6		42	0.60	207	0.31
30							6			0.64	194	0.30
35	60						7		51	0.90		0.33
40	65						8			1.03		0.37
45	75	24	20	28	36	M8	6	41	80	1.80	200	0.62
50	80						7			2.3	210	0.67
55	85						8		107	2.9	218	0.72
60	90									3.2	200	0.77
65	95						9		120	3.8	208	0.82
70	110	29	24	34	44	M10	8	83	170	6.0	225	1.50
75	115									6.4	210	1.59
80	120									6.8	197	1.67
85	125						9		190	8.1	209	1.76
90	130						10		210	9.6	219	1.84
95	135									10.1	207	1.90

100	145	33	28	38	50	M12	8	145	220	11	190	2.58
110	155						9		250	14	194	2.79
120	165						10		280	17	198	3.00
130	180	38	33	43	55		12		350	23	190	4.10
140	190						12		245	24	177	4.37
150	200						14		400	30	192	4.63
160	210						15		440	35	193	4.90
170	225	43	38	49	63	M14	12	230	480	41	176	6.50
180	235	43	38	49	63		14		560	51	194	6.90
190	250	51	46	57	71		16		640	61	177	9.27
200	260	51	46	57	71		18		700	72	190	9.7
220	285	55	50	61	77	M16	16	355	900	99	198	12.3
240	305						16		900	108	181	13.3
260	325						18		1000	130	188	14.3
280	355	65	60	73	91	M18	18	485	1200	170	178	21.4
300	375	65	60	73	91	M18	20	485	1350	200	184	22.7
320	405	77	72	85	105	M20		690	1700	275	189	32.2
340	425	77	72	85	105	M20		690	1700	290	178	34.0
360	455	89	84	99	121	M22		930	2000	385	181	47.2
380	475						21		2200	430	180	49.5
400	495						21		2200	450	171	51.8
420	515						24		2500	545	186	54.2
440	545	101	96	113	137	M24		1200	3000	660	181	72.0
460	565								3000	690	173	74.9
480	585								3000	720	166	77.9
500	605						28		3400	880	186	80.8
520	630								3400	915	179	88.1
540	650								3400	950	172	91.1
560	670						30		3700	1060	178	94.2
580	690								3700	1100	172	97.3
600	710								3700	1130	166	100.3

Assembly Locking Shaft Clamping Z15 Series Locking Device For Packaging 0
