Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO9001
Model Number: Z11
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-7working days
Supply Ability: 1000 per month
Model Number: |
Z11 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Weight: |
0.15-4.2KG |
Outer Diameter: |
23-112mm |
Thickness (mm): |
37-77 |
Bore Size: |
14-90mm |
Torque (kNm: |
14-1000 |
Model Number: |
Z11 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Weight: |
0.15-4.2KG |
Outer Diameter: |
23-112mm |
Thickness (mm): |
37-77 |
Bore Size: |
14-90mm |
Torque (kNm: |
14-1000 |

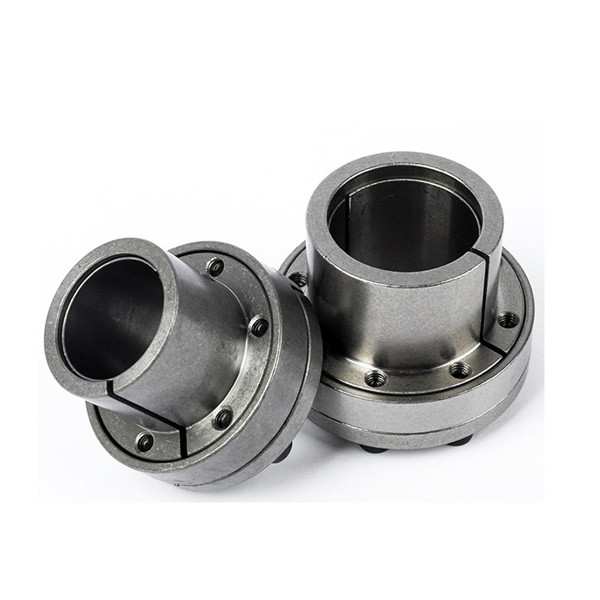

Locking Assembly Adjustment Screw Z11 Series With Lock Assembly Door Lock Assembly
Products Features
In 2005, Changzhou TIANNIU began to comprehensively develop various locking assemblies of the specifications of the standard. After nearly 15 years of practice, it has completed the variety development of all specifications in the standard.
It has been extended to textile, packaging, food, light industry, metallurgy, papermaking, printing, machine tools, processing centers, forging machine tools, metallurgical machinery and general machinery, which has won a good reputation and promoted the technological progress of products in the machinery industry. And can develop non-standard locking assembly according to special user needs.
Products are widely used in: engineering machinery, textile machinery, mining machinery, metallurgical machinery, printing machinery, tobacco machinery, packaging machinery, forging machinery, steel rolling machine, all kinds of machine tools (machining center, CNC machine tools connected with servo motor and stepping motor) and mechanical transmission connection
Locking Assembly is a new type of connection. It relies on tightening high-strength bolts to generate positive pressure between the Locking assembly and the shaft or between the housing surface, which is accompanied by friction and a keyless connection device that realizes load transmission. It has many unique advantages and characteristics compared with the traditional mechanical connection method of general interference without bond and bond.
Products Parameters
|
Dinmension
|
weight(Kg)
|
||||||||
|
d
|
D
|
d0
|
L0
|
L
|
L1
|
L2
|
D1
|
D2
|
|
|
14
|
23
|
28.5
|
23
|
14
|
26
|
30
|
38
|
33
|
0.15
|
|
15
|
24
|
32
|
20
|
16
|
36
|
42
|
45
|
40
|
0.26
|
|
16
|
24
|
32
|
29
|
16
|
36
|
42
|
45
|
40
|
0.25
|
|
18
|
26
|
34
|
34
|
18
|
41
|
47
|
47
|
42
|
0.27
|
|
18
|
27
|
35
|
34
|
18
|
41
|
47
|
49
|
43
|
0.3
|
|
20
|
28
|
36
|
34
|
18
|
41
|
47
|
50
|
44
|
0.3
|
|
22
|
32
|
40
|
41
|
25
|
48
|
54
|
54
|
48
|
0.38
|
|
24
|
34
|
42
|
41
|
25
|
48
|
54
|
56
|
50
|
0.4
|
|
25
|
34
|
42
|
41
|
25
|
48
|
54
|
56
|
50
|
0.39
|
|
28
|
38
|
47
|
41
|
25
|
48
|
54
|
61
|
55
|
0.47
|
|
30
|
41
|
48
|
41
|
25
|
48
|
54
|
62
|
57
|
0.48
|
|
32
|
43
|
51
|
41
|
25
|
48
|
54
|
65
|
58
|
0.52
|
|
35
|
47
|
84
|
45
|
32
|
52
|
58
|
69
|
62
|
0.63
|
|
38
|
50
|
58
|
45
|
32
|
52
|
58
|
72
|
66
|
0.67
|
|
40
|
53
|
61
|
45
|
32
|
52
|
58
|
75
|
69
|
0.74
|
|
42
|
55
|
63
|
45
|
32
|
52
|
58
|
78
|
71
|
0.78
|
|
45
|
59
|
69.5
|
64
|
45
|
72
|
80
|
86
|
80
|
1.23
|
|
48
|
62
|
71.5
|
64
|
45
|
72
|
80
|
87
|
81
|
1.24
|
|
50
|
65
|
75.8
|
64
|
45
|
72
|
80
|
92
|
86
|
1.4
|
|
55
|
71
|
81.5
|
74
|
55
|
82
|
90
|
98
|
92
|
1.7
|
|
60
|
77
|
87.5
|
74
|
55
|
82
|
90
|
104
|
98
|
1.9
|
|
65
|
84
|
94.5
|
74
|
55
|
82
|
90
|
111
|
105
|
2.2
|
|
70
|
90
|
101.5
|
87
|
65
|
97
|
107
|
119
|
113
|
3.05
|
|
75
|
95
|
107
|
87
|
65
|
97
|
107
|
126
|
119
|
3.32
|
|
80
|
100
|
l12.5
|
87
|
65
|
97
|
107
|
131
|
125
|
3.5
|
|
85
|
106
|
118 5
|
87
|
65
|
97
|
107
|
137
|
131
|
3.18
|
|
90
|
112
|
124.5
|
87
|
65
|
97
|
107
|
144
|
137
|
4.2
|
