GH Series Shaft Coupling Sliding Block Oldham Flexible Coupling Machine

Name: GH Series Shaft Coupling Sliding Block Oldham Flexible Coupling Machine
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: GH series
Price: 149.10 USD
Availability: InStock

Brand Name:	Tianniu
Model Number:	GH series
MOQ:	Negotiation
Price:	Negotiation
Delivery Time:	5-7 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C, D/A, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO-9001

Name:

Oldham Shaft Coupling

Material:

Aluminium Steel

Inner Diameter:

16-70mm

Model:

GH Series

Structure:

Oldham Shaft Coupling

Warranty:

12 Months

Surface Treatment:

Anodic Oxidation Treatment

Flexible Or Rigid:

Flexible

Packaging Details:

Cartons by sea shipping by airplane

Supply Ability:

10000 per month

Highlight:

GH Series Shaft Coupling

Oldham Type Shaft Coupling

Oldham Shaft Coupling Sliding Block

Product Description

GH Series Shanf Couping Sliding Block Oldham Flexible Coupling Machine

Products Introduction

Oldham type shaft coupling are designed to clamp evenly around the shaft and provide greater retention than fixed screw couplings without damaging shaft. Then tighten the clamping screws to secure.

Products Features

Changzhou Tianniu Factory is a professional manufacturer of plum couplings, rigid couplings, universal couplings, cross slide couplings, winding couplings, bellows couplings, double membrane couplings and other products. The processing company has a complete and scientific quality management system.

>Tianniu Brand Oldham shaft couplings use colloid material is imported PA66, which has good wear resistance, corrosion resistance and electrical insulation
>Tianniu Brand Oldham shaft couplings use sliding design can compensate radial and angular deviation more effectively
>Tianniu Brand Oldham shaft couplings use detachable design, easy to install
>Tianniu Brand Oldham shaft couplings fastening method of clamping screw

Production Drawings

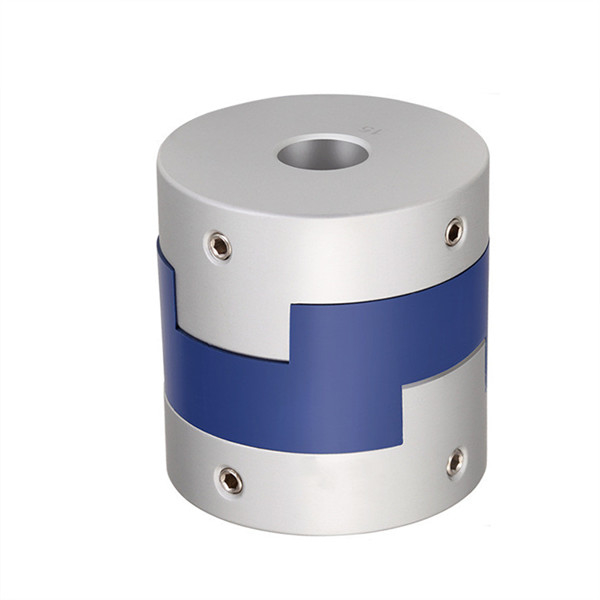

GH Series Shaft Coupling Sliding Block Oldham Flexible Coupling Machine 0

Production Datasheet

model parameter	common bore diameter d1,d2	ΦD	L	LF	LP	F	M	tightening screw torque (N.M)
GH-16X18	4,5,6,6.35,7,8	16	18	7.1	11.6	3.55	M3	0.7
GH-20X25	5,6,6.35,7,8,9,9.525	20	25	9.1	12.7	4.55	M4	1.7
GH-25X28	5,6,6.35,8,9,9.525,10,11,12,14	25	28	11.7	16.65	5.58	M4	1.7
GH-32x33	5,6,8,9,9.525,10,11,12,12.7,14,15,16	32	33	14	19.5	7	M4	1.7
GH-40X35	8,9,9.525,10,11,12,12.7,14,14,16,17,18,19,20	40	35	15.5	18.4	7.75	M4	1.7
GH-45X46	8,9,9.525,10,11,12.7,14,15,16,17,18,19,20,22	45	46	21.5	18.4	9	M5	4
GH-50X38	10,12,12.7,14,15,16,17,18,19,20,22,24,25	50	38	16.5	15	8.25	M5	4
GH-55X57	10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32	55	57	27	17.5	10.5	M5	4
GH-63X47	14,15,16,17,18,19,20,22,24,25,28,30,32	63	47	21	17.5	10.5	M6	8.4
GH-70X77	16,17,18,19,20,22,24,25,28,30,32,38,40	70	77	36.5	25	13.5	M8	10.5

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	Material of shaft sleeve	Material of shrapnel	surface treatment	weight (g)
GH-16X18	0.7	0.8	3	±0.2	9000	30	3.3x10-7	High strength aluminum alloy	P A 6 6	Anodizing treatment	6
GH-20X25	1.2	1.2	3	±0.2	7000	58	1.1x10-6				18
GH-25X28	2	1.6	3	±0.2	6000	130	3.1x10-6				25
GH-32x33	4.5	2	3	±0.2	4800	270	9.6x10-6				44
GH-40X35	9	2.4	3	±0.2	3600	520	2.3x10-5				81
GH-45X46	12	2.8	3	±0.2	3500	560	3.8x10-5				136
GH-50X38	19	2.6	3	±0.2	3000	800	1.8x10-4				142
GH-55X57	22	3.3	3	±0.2	2800	795	8.0x10-4				255
GH-63X47	19	3	3	±0.2	2500	1200	8.3x10-4				320
GH-70X77	56	3.8	3	±0.2	2500	1260	3.9x10-4				445
